Automotive Cable
APEX-BS
Application:
APEX-BS Automotive Cable is used in low voltage signal circuits in automobiles. Superior heat resistance with
irradiated PE. Suitable for the consideration of the shielding characteristic.

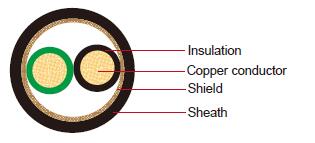

Construction:
Conductor:
Annealed stranded copper
Insulation:
XLPE
Shield:
Tin coated annealed copper
Sheath:
PVC
Standard Compliance:
JASO D611; ES SPEC
Technical Parameters:
Operating temperature: –40 °C to +120 °C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.5 |
20/0.18 |
0.93 |
0.037 |
0.6 |
3.7 |
3.9 |
21 |
0.85 |
34/0.18 |
1.21 |
0.022 |
0.6 |
4.2 |
4.4 |
27 |
1.25 |
50/0.18 |
1.50 |
0.015 |
0.6 |
4.5 |
4.7 |
31 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
