Automotive Cable
AHFX
Application:
AHFX Automotive Cable is used in Fuel Pump and Transmission for automobiles,
Superior oil resistance, Suitable for the consideration of the flexibility and thermal resistance.

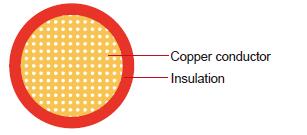

Construction:
Conductor:
Tin coated annealed stranded copper
Insulation:
Fluoroelastomer
Standard Compliance:
KIS-ES-8093
Technical Parameters:
Operating temperature: –40 °C to +200°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.50 |
20/0.18 |
0.9 |
38.2 |
0.4 |
1.55 |
1.85 |
7.8 |
1x0.75 |
19/0.23 |
1.2 |
24.7 |
0.4 |
1.75 |
2.05 |
10.8 |
1x1.25 |
50/0.18 |
1.4 |
15.9 |
0.4 |
2.15 |
2.45 |
16.7 |
1x2.00 |
37/0.26 |
1.8 |
10.5 |
0.4 |
2.45 |
2.75 |
23.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
