Automotive Cable
AHFX-BS
Application:
AHFX-BS Automotive Cable is used for HEV automobiles.

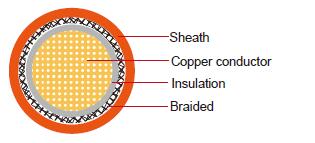

Construction:
Conductor:
Tin plated copper
Insulation:
Fluororubber
Braided:
Shield tin plated copper
Sheath:
Halogen free Polyolefine
Standard Compliance:
KIS-ES-1121
Technical Parameters:
Operating temperature: –40 °C to +200°C
Rated Voltage: 600V
|
Conductor |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall max. |
Thickness Wall min. |
Shield Rate |
Overall Diameter max. |
Overall Diameter min. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
1x3 |
65/0.26 |
2.4 |
5.65 |
4.05 |
3.55 |
90 |
5.6 |
5.3 |
1x5 |
65/0.32 |
3.0 |
3.72 |
4.9 |
4.3 |
90 |
7.3 |
6.5 |
1x8 |
154/0.26 |
4.0 |
2.43 |
5.9 |
5.3 |
90 |
8.3 |
7.5 |
1x15 |
171/0.32 |
5.3 |
1.44 |
7.8 |
7.2 |
90 |
10.75 |
9.85 |
1x20 |
247/0.32 |
6.5 |
1.00 |
9.0 |
8.4 |
90 |
11.95 |
11.05 |
1x25 |
323/0.32 |
7.4 |
0.76 |
10.6 |
9.8 |
90 |
13.5 |
12.5 |
1x30 |
361/0.32 |
7.8 |
0.68 |
11.0 |
10.2 |
90 |
13.9 |
12.9 |
1x40 |
494/0.32 |
9.1 |
0.52 |
12.3 |
11.5 |
90 |
16.25 |
15.15 |
1x50 |
608/0.32 |
10.1 |
0.42 |
13.75 |
12.85 |
90 |
17.7 |
16.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
