Automotive Cable
AEXHF-BS
Application:
AEXHF-BS Automotive Cable is used in low voltage signal circuits in automobiles. Suitable for the consideration
of the flexibility and thermal resistance.Suitable for the consieration of the shielding characteristic.

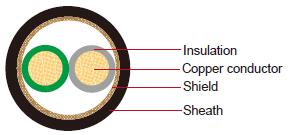

Construction:
Conductor: Annealed stranded copper
Insulation: Cross-Linked Polyethylene
Shield: Tin coated annealed copper
Sheath: Cross-linked Polyethylene
Standard Compliance:
JASO D608; HMC ES SPEC
Technical Parameters:
Operating temperature: –40 °C to +150 °C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.5(2C) |
20/0.18 |
0.93 |
39.1 |
0.5 |
5.9 |
6.1 |
42.5 |
0.85(2C) |
34/0.18 |
1.21 |
23 |
0.5 |
6.6 |
6.8 |
55 |
1.25 |
50/0.18 |
1.5 |
15.7 |
0.6 |
7.6 |
7.8 |
71.5 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
