Indoor Feeder Cables (from MDB to SDB, SDB to TDB) & UPS Feeder Cables
600/1000V XLPE Insulated, LSZH Sheathed, Armoured Power Cables (Multicore)
FTX400 1RZ1MZ1-R (CU/XLPE/LSZH/SWA/LSZH 600/1000V Multicore)
APPLICATION
600/1000V XLPE Insulated, LSZH Sheathed, Armoured Power Cables (Multicore) are mainly used in power
stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and
high-rise buildings.
STANDARDS
Basic design to BS 6724
FIRE PERFORMANCE
| FlameRetardance(SingleVerticalWireTest) | EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|---|---|
| Reduced FirePropagation(Vertically-mountedbundledwires &cabletest) | EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1* |
| NoCorrosive GasEmission | IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2* |
| MinimumSmokeEmission | IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2* |
| NoToxic Gases | NES02-713;NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
600/1000V

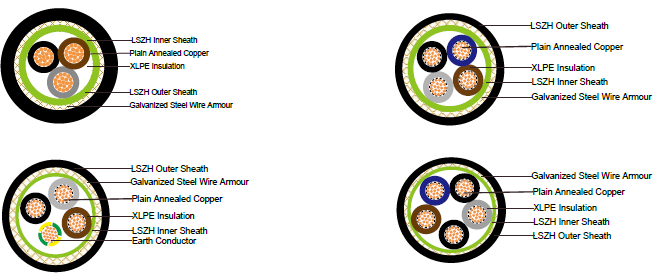

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation: Extruded cross-linked XLPE compound
Inner Sheath : LSZH Compound
Armouring : Galvanized Steel Wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
COLOUR CODE
Insulation Colour as per BS7671
| WithEarth Conductor | WithoutEarth Conductor | |
|---|---|---|
| 2 Cores | - | Brown,Blue |
| 3 Cores | Yellow/Green,Brown,Blue | Brown,Gray, Black |
| 4 Cores | Yellow/Green,Brown,Gray, Black | Brown,Gray, Black,Blue |
| 5 Cores | Yellow/Green,Brown,Gray,Black,Blue | Brown,Gray, Black,Blue,Black |
| Above5 Cores | Yellow/Green,BlackNumbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 8 x OD
Electrical PROPERTIES
DielectricTest:3500 Vr.m.s.x 5’(core/core)
Insulation Resistance:500 MΩ x km ( at 20°C)
Short circuit Temperature:250°C ( up to5secs)
CONSTRUCTION PARAMETERS
| Cable Code | Conductor | Nominal Insulation Thickness |
Diameter Under Armour |
Armour Wire Diameter | Nominal Overall Diameter |
Approx. Weight | |
|---|---|---|---|---|---|---|---|
| No.of
CoreX Cross Section/CPC Cross Section |
No./ Nomina lDiameter of Strands |
||||||
|
No.×mm2 | No./mm | mm | mm | mm | mm | kg/km |
| 3 CORES | |||||||
| FTX4001RZ1MZ1-R 3G1.5 | 3x1.5 | 7/0.53 | 0.6 | 9.0 | 0.9 | 12.6 | 340 |
| FTX4001RZ1MZ1-R 3G2.5 | 3x2.5 | 7/0.67 | 0.7 | 9.9 | 0.9 | 14.1 | 408 |
| FTX4001RZ1MZ1-R 3G4 | 3x4 | 7/0.85 | 0.7 | 11.0 | 0.9 | 15.3 | 498 |
| FTX4001RZ1MZ1-R 3G6 | 3x6 | 7/1.04 | 0.7 | 11.6 | 1.25 | 16.6 | 600 |
| FTX4001RZ1MZ1-R 3G10 | 3x10 | 7/1.35 | 0.7 | 14.3 | 1.25 | 19.5 | 915 |
| FTX4001RZ1MZ1-R 3G16 | 3x16 | 7/1.70 | 0.7 | 16.5 | 1.25 | 21.6 | 1130 |
| FTX4001RZ1MZ1-R 3G25 | 3x25 | 7/2.14 | 0.9 | 20.2 | 1.6 | 26.7 | 1710 |
| FTX4001RZ1MZ1-R 3G35 | 3x35 | 7/2.52 | 0.9 | 22.4 | 1.6 | 29.4 | 2100 |
| FTX4001RZ1MZ1-R 3G50 | 3x50(S) | 19/1.78 | 1.0 | 24.2 | 1.6 | 28.5 | 2450 |
| FTX4001RZ1MZ1-R 3G70 | 3x70(S) | 19/2.14 | 1.1 | 28.2 | 2.0 | 32.2 | 3120 |
| FTX4001RZ1MZ1-R 3G95 | 3x95(S) | 19/2.52 | 1.1 | 31.7 | 2.0 | 37.0 | 4310 |
| FTX4001RZ1MZ1-R 3G120 | 3x120(S) | 37/2.03 | 1.2 | 36.0 | 2.0 | 40.4 | 5160 |
| FTX4001RZ1MZ1-R 3G150 | 3x150(S) | 37/2.25 | 1.4 | 39.5 | 2.5 | 45.5 | 7160 |
| FTX4001RZ1MZ1-R 3G185 | 3x185(S) | 37/2.52 | 1.6 | 43.3 | 2.5 | 49.8 | 8600 |
| FTX4001RZ1MZ1-R 3G240 | 3x240(S) | 61/2.25 | 1.7 | 48.4 | 2.5 | 55.1 | 10750 |
| FTX4001RZ1MZ1-R 3G300 | 3x300(S) | 61/2.52 | 1.8 | 54.4 | 2.5 | 60.2 | 13080 |
| FTX4001RZ1MZ1-R 3G400 | 3x400(S) | 61/2.85 | 2.0 | 57.8 | 2.5 | 66.6 | 15810 |
| 3CORES + 1EARTHCONDUCTOR | |||||||
| FTX4001RZ1MZ1-R 3G16/6 | 3xl6/6 | 7/1.70 | 0.7 | 17.6 | 1.25 | 22.6 | 1342 |
| FTX4001RZ1MZ1-R 3G16/10 | 3x16/l0 | 7/1.70 | 0.7 | 20.6 | 1.25 | 23.0 | 1567 |
| FTX4001RZ1MZ1-R 3G25/6 | 3x25/6 | 7/2.14 | 0.9 | 26.3 | 1.25 | 27.1 | 1876 |
| FTX4001RZ1MZ1-R 3G25/10 | 3x25/10 | 7/2.14 | 0.9 | 26.3 | 1.25 | 27.6 | 2091 |
| FTX4001RZ1MZ1-R 3G25/16 | 3x25/16 | 7/2.14 | 0.9 | 26.6 | 1.25 | 28.3 | 2150 |
| FTX4001RZ1MZ1-R 3G35/10 | 3x35/10 | 7/2.52 | 0.9 | 26.8 | 1.6 | 28.9 | 2210 |
| FTX4001RZ1MZ1-R 3G35/16 | 3x35/16 | 7/2.52 | 0.9 | 26.8 | 1.6 | 29.5 | 2390 |
| FTX4001RZ1MZ1-R 3G35/25 | 3x35/25 | 7/2.52 | 0.9 | 27.2 | 1.6 | 30.0 | 2505 |
| FTX4001RZ1MZ1-R 3G50/16 | 3×50/16 | 19/1.78 | 0.9 | 28.5 | 1.6 | 29.0 | 2916 |
| FTX4001RZ1MZ1-R 3G50/25 | 3x50/25 | 19/1.78 | 1.0 | 29.2 | 1.6 | 30.0 | 3107 |
| FTX4001RZ1MZ1-R 3G50/35 | 3x50/35 | 19/1.78 | 1.0 | 30.0 | 1.6 | 31.0 | 3175 |
| FTX4001RZ1MZ1-R 3G70/25 | 3×70/25 | 19/2.14 | 1.1 | 34.0 | 2.0 | 32.9 | 3203 |
| FTX4001RZ1MZ1-R 3G70/35 | 3x70/35 | 19/2.14 | 1.1 | 34.5 | 2.0 | 34.5 | 4067 |
| FTX4001RZ1MZ1-R 3G70/50 | 3x70/50 | 19/2.14 | 1.1 | 35 | 2.0 | 36.3 | 4310 |
| FTX4001RZ1MZ1-R 3G95/25 | 3×95/25 | 19/2.52 | 1.1 | 36.7 | 2.0 | 38.0 | 5047 |
| FTX4001RZ1MZ1-R 3G95/35 | 3×95/35 | 19/2.52 | 1.1 | 37.2 | 2.0 | 38.6 | 5115 |
| FTX4001RZ1MZ1-R 3G95/50 | 3x95/50 | 19/2.52 | 1.1 | 37.6 | 2.0 | 39.2 | 5289 |
| FTX4001RZ1MZ1-R 3G95/70 | 3x95/70 | 19/2.52 | 1.1 | 37.6 | 2.0 | 40.0 | 5360 |
| FTX4001RZ1MZ1-R 3G120/35 | 3×120/35 | 37/2.03 | 1.2 | 39.4 | 2.5 | 41.2 | 6160 |
| FTX4001RZ1MZ1-R 3G120/50 | 3×120/50 | 37/2.03 | 1.2 | 39.9 | 2.5 | 42.3 | 6473 |
| FTX4001RZ1MZ1-R 3G120/70 | 3x120/70 | 37/2.03 | 1.2 | 40.3 | 2.5 | 44.6 | 6793 |
| FTX4001RZ1MZ1-R 3G120/95 | 3×120/95 | 37/2.03 | 1.2 | 41.2 | 2.5 | 46.2 | 7120 |
| FTX4001RZ1MZ1-R 3G150/50 | 3×150/50 | 37/2.25 | 1.4 | 45.2 | 2.5 | 57.0 | 7431 |
| FTX4001RZ1MZ1-R 3G150/70 | 3×150/70 | 37/2.25 | 1.4 | 45.2 | 2.5 | 58.1 | 7565 |
| FTX4001RZ1MZ1-R 3G150/95 | 3x150/95 | 37/2.25 | 1.4 | 45.5 | 2.5 | 59.4 | 8196 |
| FTX4001RZ1MZ1-R 3G150/120 | 3x150/120 | 37/2.25 | 1.4 | 46.0 | 2.5 | 50.6 | 8590 |
| FTX4001RZ1MZ1-R 3G185/70 | 3×185/70 | 37/2.52 | 1.6 | 50.4 | 2.5 | 51.6 | 8950 |
| FTX4001RZ1MZ1-R 3G185/95 | 3xI85/95 | 37/2.52 | 1.6 | 50.6 | 2.5 | 53.2 | 9573 |
| FTX4001RZ1MZ1-R 3G185/120 | 3x185/120 | 37/2.52 | 1.6 | 51.0 | 2.5 | 54.3 | 9968 |
| FTX4001RZ1MZ1-R 3G185/150 | 3x185/150 | 37/2.52 | 1.6 | 51.6 | 2.5 | 55.3 | 1023 |
| FTX4001RZ1MZ1-R 3G240/95 | 3×240/95 | 61/2.25 | 1.7 | 58.0 | 2.5 | 56.7 | 11620 |
| FTX4001RZ1MZ1-R 3G240/120 | 3x240/120 | 61/2.25 | 1.7 | 59.0 | 2.5 | 58.3 | 12015 |
| FTX4001RZ1MZ1-R 3G240/150 | 3x240/150 | 61/2.25 | 1.7 | 60.0 | 2.5 | 60.4 | 12373 |
| FTX4001RZ1MZ1-R 3G240/185 | 3x240/185 | 61/2.25 | 1.7 | 60.0 | 2.5 | 62.1 | 1350 |
| FTX4001RZ1MZ1-R 3G300/120 | 3x300/120 | 61/2.52 | 1.8 | 64.2 | 2.5 | 63.5 | 14197 |
| FTX4001RZ1MZ1-R 3G300/150 | 3x300/150 | 61/2.52 | 1.8 | 65.7 | 2.5 | 64.9 | 14556 |
| FTX4001RZ1MZ1-R 3G300/185 | 3x300/I85 | 61/2.52 | 1.8 | 67 | 2.5 | 66.2 | 15015 |
| FTX4001RZ1MZ1-R 3G300/240 | 3x300/240 | 61/2.52 | 1.8 | 67 | 2.5 | 67.4 | 15697 |
| 4 CORES | |||||||
| FTX4001RZ1MZ1-R 4G1.5 | 4x1.5 | 7/0.53 | 0.7 | 10.0 | 0.9 | 13.3 | 390 |
| FTX4001RZ1MZ1-R 4G2.5 | 4x2.5 | 7/0.67 | 0.7 | 10.8 | 0.9 | 15.0 | 470 |
| FTX4001RZ1MZ1-R 4G4 | 4x4 | 7/0.85 | 0.7 | 12.1 | 0.9 | 16.4 | 580 |
| FTX4001RZ1MZ1-R 4G6 | 4x6 | 7/1.04 | 0.7 | 13.5 | 1.25 | 18.7 | 705 |
| FTX4001RZ1MZ1-R 4G10 | 4x10 | 7/1.35 | 0.7 | 15.7 | 1.25 | 21.1 | 1090 |
| FTX4001RZ1MZ1-R 4G16 | 4x16 | 7/1.70 | 0.7 | 18.2 | 1.6 | 23.4 | 1320 |
| FTX4001RZ1MZ1-R 4G25 | 4x25 | 7/2.14 | 0.9 | 22.4 | 1.6 | 28.9 | 1840 |
| FTX4001RZ1MZ1-R 4G35 | 4x35(S) | 7/2.52 | 0.9 | 24.4 | 1.6 | 31.9 | 2310 |
| FTX4001RZ1MZ1-R 4G50 | 4x50(S) | 19/1.78 | 1.0 | 28.0 | 1.6 | 32 | 2970 |
| FTX4001RZ1MZ1-R 4G70 | 4x70(S) | 19/2.14 | 1.1 | 32.2 | 2.0 | 37.7 | 4240 |
| FTX4001RZ1MZ1-R 4G95 | 4x95(S) | 19/2.52 | 1.1 | 36.0 | 2.0 | 41.7 | 5400 |
| FTX4001RZ1MZ1-R 4G120 | 4x120(S) | 37/2.03 | 1.2 | 38.0 | 2.5 | 47.1 | 7000 |
| FTX4001RZ1MZ1-R 4G150 | 4x150(S) | 37/2.25 | 1.4 | 42.8 | 2.5 | 51.4 | 8350 |
| FTX4001RZ1MZ1-R 4G185 | 4x185(S) | 37/2.52 | 1.6 | 48.4 | 2.5 | 56.6 | 10130 |
| FTX4001RZ1MZ1-R 4G240 | 4x240(S) | 61/2.25 | 1.7 | 55.0 | 2.5 | 63.0 | 12840 |
| FTX4001RZ1MZ1-R 4G300 | 4x300(S) | 61/2.52 | 1.8 | 59.6 | 2.5 | 68.8 | 15530 |
| FTX4001RZ1MZ1-R 4G400 | 4x400(S) | 61/2.85 | 2.0 | 66.1 | 3.15 | 78.1 | 19950 |
| 4CORES + 1EARTHCONDUCTOR | |||||||
| FTX4001RZ1MZ1-R 4G16/6 | 4xl6/6 | 7/1.35 | 0.7 | 17.9 | 1.25 | 25.1 | 1356 |
| FTX4001RZ1MZ1-R 4G16/10 | 4x16/l0 | 7/1.70 | 0.7 | 20.6 | 1.25 | 26.0 | 1390 |
| FTX4001RZ1MZ1-R 4G25/6 | 4x25/6 | 7/2.14 | 0.7 | 24.1 | 1.25 | 29.0 | 1900 |
| FTX4001RZ1MZ1-R 4G25/10 | 4x25/10 | 7/2.14 | 0.9 | 24.9 | 1.25 | 29.4 | 1956 |
| FTX4001RZ1MZ1-R 4G25/16 | 4x25/16 | 7/2.14 | 0.9 | 25.3 | 1.25 | 30.0 | 2012 |
| FTX4001RZ1MZ1-R 4G35/10 | 4×35/10 | 7/2.52 | 0.9 | 25.4 | 1.25 | 32.1 | 2710 |
| FTX4001RZ1MZ1-R 4G35/16 | 4×35/16 | 7/2.52 | 0.9 | 25.6 | 1.6 | 33.4 | 2940 |
| FTX4001RZ1MZ1-R 4G35/25 | 4×35/25 | 7/2.52 | 0.9 | 26.2 | 1.6 | 34.0 | 3050 |
| FTX4001RZ1MZ1-R 4G50/16 | 4×50/16 | 19/1.78 | 1.0 | 28.5 | 1.6 | 33 | 3560 |
| FTX4001RZ1MZ1-R 4G50/25 | 4×50/25 | 19/1.78 | 1.0 | 29.2 | 1.6 | 35.6 | 3670 |
| FTX4001RZ1MZ1-R 4G50/35 | 4x50/35 | 19/1.78 | 1.0 | 30.0 | 1.6 | 38.2 | 3759 |
| FTX4001RZ1MZ1-R 4G70/25 | 4×70/25 | 19/2.14 | 1.1 | 34 | 2.0 | 38.6 | 4980 |
| FTX4001RZ1MZ1-R 4G70/35 | 4x70/35 | 19/2.14 | 1.1 | 34.5 | 2.0 | 40.6 | 5036 |
| FTX4001RZ1MZ1-R 4G70/50 | 4x70/50 | 19/2.14 | 1.1 | 35 | 2.0 | 42.9 | 5468 |
| FTX4001RZ1MZ1-R 4G95/25 | 4×95/25 | 19/2.52 | 1.1 | 36.7 | 2.0 | 43.2 | 6215 |
| FTX4001RZ1MZ1-R 4G95/35 | 4×95/35 | 19/2.52 | 1.1 | 37.2 | 2.0 | 46.3 | 6325 |
| FTX4001RZ1MZ1-R 4G95/50 | 4×95/50 | 19/2.52 | 1.1 | 37.6 | 2.0 | 48.5 | 6455 |
| FTX4001RZ1MZ1-R 4G95/70 | 4×95/50 | 19/2.52 | 1.1 | 38.0 | 2.0 | 50.7 | 6954 |
| FTX4001RZ1MZ1-R 3G120/35 | 3×120/35 | 37/2.03 | 1.2 | 39.4 | 2.5 | 54.2 | 7968 |
| FTX4001RZ1MZ1-R 4G120/50 | 4×120/50 | 37/2.03 | 1.2 | 39.9 | 2.5 | 55.3 | 8280 |
| FTX4001RZ1MZ1-R 4G120/70 | 4x120/70 | 37/2.03 | 1.2 | 40.3 | 2.5 | 55.9 | 8511 |
| FTX4001RZ1MZ1-R 4G120/95 | 4×120/95 | 37/2.03 | 1.2 | 41.2 | 2.5 | 56.4 | 8790 |
| FTX4001RZ1MZ1-R 4G150/50 | 4×150/50 | 37/2.25 | 1.4 | 44.9 | 2.5 | 55.3 | 8723 |
| FTX4001RZ1MZ1-R 4G150/70 | 4×150/70 | 37/2.25 | 1.4 | 45.2 | 2.5 | 56.48 | 8879 |
| FTX4001RZ1MZ1-R 4G150/95 | 4x150/95 | 37/2.25 | 1.4 | 45.5 | 2.5 | 57.59 | 10179 |
| FTX4001RZ1MZ1-R 4G150/120 | 4x150/120 | 37/2.25 | 1.4 | 46.0 | 2.5 | 58.65 | 10739 |
| FTX4001RZ1MZ1-R 4G185/70 | 4×185/70 | 37/2.52 | 1.6 | 50.4 | 2.5 | 62.03 | 11200 |
| FTX4001RZ1MZ1-R 4G185/95 | 4xI85/95 | 37/2.52 | 1.6 | 50.6 | 2.5 | 63.19 | 1263 |
| FTX4001RZ1MZ1-R 4G185/120 | 4x185/120 | 37/2.52 | 1.6 | 51.0 | 2.5 | 64.23 | 13050 |
| FTX4001RZ1MZ1-R 4G185/150 | 4x185/150 | 37/2.52 | 1.6 | 51.6 | 2.5 | 65.38 | 13680 |
| FTX4001RZ1MZ1-R 4G240/95 | 4×240/95 | 61/2.25 | 1.7 | 58.0 | 2.5 | 71.53 | 14420 |
| FTX4001RZ1MZ1-R 4G240/120 | 4x240/120 | 61/2.25 | 1.7 | 59.0 | 2.5 | 72.76 | 14763 |
| FTX4001RZ1MZ1-R 4G240/150 | 4x240/150 | 61/2.25 | 1.7 | 60.0 | 2.5 | 73.10 | 15241 |
| FTX4001RZ1MZ1-R 4G240/185 | 4x240/185 | 61/2.25 | 1.7 | 61.5 | 2.5 | 74.0 | 1682 |
| FTX4001RZ1MZ1-R 4G300/120 | 4x300/150 | 61/2.52 | 1.8 | 64.2 | 2.5 | 75.08 | 18050 |
| FTX4001RZ1MZ1-R 4G300/150 | 4x300/150 | 61/2.52 | 1.8 | 65.7 | 2.5 | 76.44 | 18662 |
| FTX4001RZ1MZ1-R 4G300/185 | 4x300/I85 | 61/2.52 | 1.8 | 67 | 2.5 | 77.30 | 19031 |
| FTX4001RZ1MZ1-R 4G300/240 | 4x300/240 | 61/2.52 | 1.8 | 67 | 2.5 | 78.55 | 19878 |
| 5 CORES | |||||||
| FTX4001RZ1MZ1-R 5G1.5 | 5x1.5 | 7/0.53 | 0.6 | 9.9 | 0.9 | 14.3 | 430 |
| FTX4001RZ1MZ1-R 5G2.5 | 5x2.5 | 7/0.67 | 0.7 | 10.8 | 0.9 | 16.1 | 545 |
| FTX4001RZ1MZ1-R 5G4 | 5x4 | 7/0.85 | 0.7 | 12.1 | 0.9 | 17.8 | 680 |
| FTX4001RZ1MZ1-R 5G6 | 5x6 | 7/1.04 | 0.7 | 15.8 | 1.5 | 20 | 840 |
| FTX4001RZ1MZ1-R 5G10 | 5x10 | 7/1.35 | 0.7 | 24 | 2.8 | 22.9 | 1105 |
| FTX4001RZ1MZ1-R 5G16 | 5x16 | 7/1.70 | 0.7 | 27 | 2.8 | 26.6 | 1450 |
| FTX4001RZ1MZ1-R 5G25 | 5x25 | 7/2.14 | 0.9 | 34 | 2.8 | 31.5 | 2245 |
| FTX4001RZ1MZ1-R 5G35 | 5x35(S) | 7/2.52 | 0.9 | 24.4 | 1.6 | 34.8 | 2840 |
| FTX4001RZ1MZ1-R 5G50 | 5x50(S) | 19/1.78 | 1.0 | 28.0 | 1.6 | 40.4 | 3895 |
| FTX4001RZ1MZ1-R 5G70 | 5x70(S) | 19/2.14 | 1.1 | 32.2 | 2.0 | 46.3 | 5145 |
| FTX4001RZ1MZ1-R 5G95 | 5x95(S) | 19/2.52 | 1.1 | 36.0 | 2.0 | 53.2 | 6941 |
| FTX4001RZ1MZ1-R 5G120 | 5x120(S) | 37/2.03 | 1.2 | 38.0 | 2.5 | 58.3 | 9154 |
| FTX4001RZ1MZ1-R 5G150 | 5x150(S) | 37/2.25 | 1.4 | 42.8 | 2.5 | 64.3 | 10372 |
| FTX4001RZ1MZ1-R 5G185 | 5x185(S) | 37/2.52 | 1.6 | 48.4 | 2.5 | 71.5 | 12828 |
| FTX4001RZ1MZ1-R 5G240 | 5x240(S) | 61/2.25 | 1.7 | 55.0 | 2.5 | 80 | 15980 |
| FTX4001RZ1MZ1-R 5G300 | 5x300(S) | 61/2.52 | 1.8 | 59.6 | 2.5 | 86.1 | 19521 |
| FTX4001RZ1MZ1-R 5G400 | 5x400(S) | 61/2.85 | 2.0 | 66.1 | 3.15 | 96.3 | 25116 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
ElectricAl PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
|
Conducto rcross- sectional area |
Reference Method1 (clipped direct) |
Reference Method11(ona perforated horizontal cabletrayo rReference Method 13[freeair]) |
Insingle-way ducts |
Laiddirect in ground |
||||
|---|---|---|---|---|---|---|---|---|
| one2-corecable single phase a.c.ord.c. | one 3-coreor4-corecable 3-phasea.c. | one2-corecablesingle phasea.c.ord.c. | one3-coreor4-corecable 3-phasea.c. | one2-corecable single phase a.c.ord.c. | one 3-core or4-corecable 3-phasea.c. | one2-corecable single phase a.c.ord.c. | one 3-coreor4-corecable 3-phasea.c. | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| mm2 | A | A | A | A | A | A | A | A |
| 1.5 | 27 | 23 | 29 | 25 | - | 23 | - | 28 |
| 2.5 | 36 | 31 | 39 | 33 | - | 30 | - | 36 |
| 4 | 49 | 42 | 52 | 44 | - | 40 | - | 48 |
| 6 | 62 | 53 | 66 | 56 | - | 50 | - | 60 |
| 10 | 85 | 73 | 90 | 78 | - | 65 | - | 80 |
| 16 | 110 | 94 | 115 | 99 | 115 | 94 | 140 | 115 |
| 25 | 146 | 124 | 152 | 131 | 145 | 125 | 180 | 150 |
| 35 | 180 | 154 | 188 | 162 | 175 | 150 | 215 | 180 |
| 50 | 219 | 187 | 228 | 197 | 210 | 175 | 255 | 215 |
| 70 | 279 | 238 | 291 | 251 | 260 | 215 | 315 | 265 |
| 95 | 338 | 289 | 354 | 304 | 310 | 260 | 380 | 315 |
| 120 | 392 | 335 | 410 | 353 | 355 | 300 | 430 | 360 |
| 150 | 451 | 386 | 472 | 406 | 400 | 335 | 480 | 405 |
| 185 | 515 | 441 | 539 | 463 | 455 | 380 | 540 | 460 |
| 240 | 607 | 520 | 636 | 546 | 520 | 440 | 630 | 530 |
| 300 | 698 | 599 | 732 | 628 | 590 | 495 | 700 | 590 |
| 400 | 787 | 673 | 847 | 728 | 660 | 560 | 790 | 670 |
|
Conductor cross-sectional area |
2-core cabled.c. |
2cables, single-phase a.c. |
3 or 4 cables, 3-phasea.c. |
2cables, single- phasea.c. | 3 or 4cables, 3-phasea.c. |
|---|---|---|---|---|---|
| Inducts oringround | Inductsor inground | ||||
| 1 | 2 | 3 | 4 | 5 | 6 |
| mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | ||||
| 1.5 | 31.0 | 31.0 | 27.0 | 31.0 | 25.0 | ||||
| 2.5 | 19.0 | 19.0 | 16.0 | 19.0 | 15.0 | ||||
| 4 | 12.0 | 12.0 | 10.0 | 12.0 | 9.7 | ||||
| 6 | 7.9 | 7.9 | 6.8 | 7.9 | 6.5 | ||||
| 10 | 4.7 | 4.7 | 4.0 | 4.7 | 3.9 | ||||
| 16 | 2.9 | 2.9 | 2.5 | 2.9 | 2.6 | ||||
|
|
r | x | z | r | x | z |
|
|
| 25 | 1.850 | 1.350 | 0.160 | 1.900 | 1.600 | 0.140 | 1.650 | 1.900 | 1.600 |
| 35 | 1.350 | 1.350 | 0.155 | 1.350 | 1.150 | 0.135 | 1.150 | 1.350 | 1.200 |
| 50 | 0.980 | 0.990 | 0.155 | 1.000 | 0.860 | 0.135 | 0.870 | 1.000 | 0.870 |
| 70 | 0.670 | 0.670 | 0.150 | 0.690 | 0.590 | 0.130 | 0.600 | 0.690 | 0.610 |
| 95 | 0.490 | 0.500 | 0.150 | 0.520 | 0.430 | 0.130 | 0.450 | 0.520 | 0.450 |
| 120 | 0.390 | 0.400 | 0.145 | 0.420 | 0.340 | 0.130 | 0.370 | 0.420 | 0.360 |
| 150 | 0.310 | 0.320 | 0.145 | 0.350 | 0.280 | 0.125 | 0.300 | 0.350 | 0.300 |
| 185 | 0.250 | 0.260 | 0.145 | 0.290 | 0.220 | 0.125 | 0.260 | 0.290 | 0.250 |
| 240 | 0.195 | 0.200 | 0.140 | 0.240 | 0.175 | 0.125 | 0.210 | 0.240 | 0.210 |
| 300 | 0.155 | 0.160 | 0.140 | 0.210 | 0.140 | 0.120 | 0.185 | 0.210 | 0.190 |
| 400 | 0.120 | 0.130 | 0.140 | 0.190 | 0.115 | 0.120 | 0.165 | 0.190 | 0.180 |
x = reactance
z = impedance
