Airport Pavement Cable 600V
Applications
600 Airport Pavement Cables are used as airport pavement cable for secondary electrical circuits.

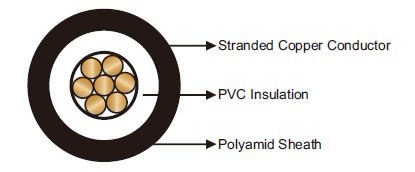

Construction
Conductor: Stranded copper conductor.
Insulation: PVC.
Sheath: Polyamid (nylon).
Standards
FAA 150/5345-30
Technical Data
Rated Voltage Uo/U (Um) :600V
Operating Temperatures :-45℃~+85℃
Minimum Bending Radius :5×OD
Abrasion Resistant :Yes
UV Resistant :Yes
Oil Resistant :Yes
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm²/AWG | mm | mm | mm | kg/km |
| 1×4 mm² | 0.6 | 0.15 | 4.1 | 48 |
| 1×12 | 0.6 | 0.15 | 3.8 | 41 |
| 1×10 | 0.8 | 0.15 | 4.9 | 66 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
