		Airport Cable

Airfield Lighting Cables

Airport Cable120

 400Hz Airport Cables 7-core With Copper Wire Braid Shield

Applications

400Hz Airport Cables 7-core With Copper Wire Braid Shield are designed for 400 Hz systems for power

supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors

and in cable ducts.

Standards

VDE 0295

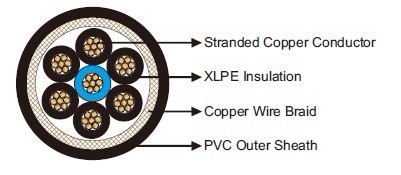

Construction

Conductor: Stranded bare copper conductor, Class 2/Class 5 to VDE 0295/IEC 60228.

Insulation: XLPE.

Shield: Bare copper braid.

Outer Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um) : 600/1000V

Operating Temperatures :-20℃~+70℃

Minimum Bending Radius :static: 6×OD; dynamic: 12×OD

Impacted Resistant :Yes

Weather Resistant :Yes

Dimensions and Weight

Construction	Nominal Diameter of Single Core	Nominal Overall Diameter	Nominal Weight
No. ×mm²	mm	mm	kg/km
7×70	11.9	46.5	6430

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
