400Hz Airport Cables 3-core With Control Wires
Airport cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar
stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

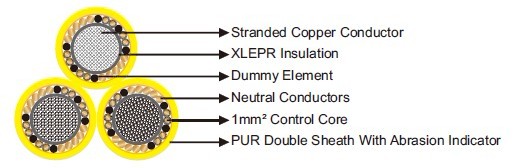

Construction
Conductor: Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation: XLEPR.
Control Core: 1mm² stranded copper conductor with XLPE insulation.
Cable Assembling: Control cores and neutral conductor concentric stranding around the phase conductors.
Sheath: Bonded inner and outer sheath of polyurethane with abrasion indicators.
Technical Data
Rated Voltage Uo/U (Um) :600/1000V
Operating Temperatures :-40℃~+90℃
Minimum Bending Radius :static: 3×OD; dynamic: 4×OD
Halogen Free :Yes
No Corrosive & Toxic Gases :Yes
Flame Retardant :Yes
Abrasion Resistant :Yes
UV Resistant :Yes
Oil Resistant:Yes
Dimensions and Weight
| Construction | Nominal Diameter of ingle Core | Nominal Overall Diameter | Nominal Weight |
| No. ×mm² | mm | mm | kg/km |
| 3×(1×35/20+8×1) | 20.5 | 44.1 | 2790 |
| 3×(1×70/25+8×1) | 22.2 | 47.8 | 3560 |
