Windmill Cables
Y 300/500V
Application
Y 300/500V cables are designed for flexible use for mechanical stresses as measuring, control and regulating
cables in tool machines, conveyor belts, and production lines in machinery production, in air-conditioning and in
steel production, suitable for dry, moist and wet rooms.
Standards
DIN VDE 0245

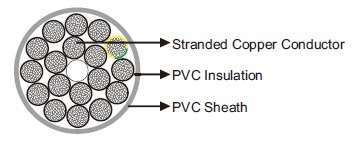

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation: PVC Type YI 2.
Sheath: PVC Type YM 2/TM 2.
Technical Data
Rated Voltage Uo/U (Um):300/500V
Operating Temperatures:flexing: -15℃~+70℃; fixed: -40℃~+70℃
Minimum Bending Radius:flexing: 20×OD; fixed: 10×OD
Flame Retardant:VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
Oil Resistant:Yes
Ozone Resistant:Yes
Silicone Free:Yes
Lead Free:Yes
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. of cores×mm² | mm | kg/km |
| 2×0.5 | 4.7 | 32 |
| 3G0.5 | 5.1 | 39 |
| 4G0.5 | 5.4 | 46 |
| 5G0.5 | 6.2 | 57 |
| 6G0.5 | 7.2 | 64 |
| 7G0.5 | 6.6 | 70 |
| 8G0.5 | 7.0 | 77 |
| 10G0.5 | 8.4 | 97 |
| 12G0.5 | 8.6 | 110 |
| 16G0.5 | 10.1 | 148 |
| 18G0.5 | 10.1 | 160 |
| 21G0.5 | 11.4 | 188 |
| 25G0.5 | 12.5 | 219 |
| 30G0.5 | 13.2 | 264 |
| 34G0.5 | 13.8 | 283 |
| 40G0.5 | 14.8 | 333 |
| 42G0.5 | 15.4 | 353 |
| 50G0.5 | 17.4 | 441 |
| 65G0.5 | 19.4 | 556 |
| 80G0.5 | 21.2 | 680 |
| 100G0.5 | 23.4 | 844 |
| 2×0.75 | 5.1 | 39 |
| 3×0.75 | 5.4 | 50 |
| 3G0.75 | 5.4 | 50 |
| 4G0.75 | 5.9 | 60 |
| 5G0.75 | 6.7 | 72 |
| 6G0.75 | 6.9 | 81 |
| 7G0.75 | 7.1 | 90 |
| 8G0.75 | 7.4 | 100 |
| 9G0.75 | 8.1 | 128 |
| 10G0.75 | 9.1 | 124 |
| 12G0.75 | 9.4 | 146 |
| 14G0.75 | 9.9 | 166 |
| 15G0.75 | 10.6 | 182 |
| 16G0.75 | 10.8 | 215 |
| 18G0.75 | 11.1 | 211 |
| 21G0.75 | 12.4 | 254 |
| 25G0.75 | 13.4 | 289 |
| 32G0.75 | 14.9 | 380 |
| 34G0.75 | 15.1 | 378 |
| 41G0.75 | 16.0 | 452 |
| 42G0.75 | 16.0 | 461 |
| 50G0.75 | 18.1 | 559 |
| 61G0.75 | 19.8 | 673 |
| 65G0.75 | 20.7 | 774 |
| 80G0.75 | 22.1 | 879 |
| 100G0.75 | 24.6 | 1084 |
| 2×1 | 5.3 | 49 |
| 3×1 | 5.8 | 57 |
| 3G1 | 5.6 | 60 |
| 4×1 | 6.1 | 69 |
| 4G1 | 6.5 | 69 |
| 5G1 | 6.7 | 83 |
| 6G1 | 7.0 | 101 |
| 7G1 | 7.5 | 104 |
| 8G1 | 8.0 | 120 |
| 9G1 | 9.9 | 161 |
| 10G1 | 9.9 | 161 |
| 12G1 | 9.9 | 174 |
| 14G1 | 10.6 | 202 |
| 15G1 | 11.1 | 215 |
| 16G1 | 11.1 | 226 |
| 18G1 | 11.7 | 252 |
| 21G1 | 13.1 | 305 |
| 25G1 | 14.3 | 346 |
| 34G1 | 16.3 | 477 |
| 41G1 | 17.7 | 566 |
| 42G1 | 17.9 | 578 |
| 50G1 | 19.1 | 682 |
| 61G1 | 20.5 | 883 |
| 65G1 | 21.5 | 949 |
| 80G1 | 24.3 | 1092 |
| 100G1 | 27.5 | 1398 |
| 2×1.5 | 6.2 | 61 |
| 3×1.5 | 6.7 | 78 |
| 3G1.5 | 6.5 | 79 |
| 4×1.5 | 7.2 | 97 |
| 4G1.5 | 7.4 | 92 |
| 5G1.5 | 7.9 | 109 |
| 6G1.5 | 8.6 | 133 |
| 7G1.5 | 9.0 | 147 |
| 8G1.5 | 9.5 | 169 |
| 9G1.5 | 10.5 | 185 |
| 10G1.5 | 11.3 | 210 |
| 12G1.5 | 11.6 | 237 |
| 14G1.5 | 12.0 | 271 |
| 16G1.5 | 12.9 | 310 |
| 18G1.5 | 13.7 | 347 |
| 21G1.5 | 14.9 | 403 |
| 25G1.5 | 16.9 | 490 |
| 32G1.5 | 18.1 | 606 |
| 34G1.5 | 18.8 | 642 |
| 42G1.5 | 20.5 | 798 |
| 50G1.5 | 22.2 | 926 |
| 61G1.5 | 23.7 | 1119 |
| 65G1.5 | 24.7 | 1020 |
| 80G1.5 | 28.3 | 1545 |
| 100G1.5 | 30.1 | 1808 |
| 2×2.5 | 7.3 | 92 |
| 3G2.5 | 7.7 | 119 |
| 4G2.5 | 8.5 | 148 |
| 5G2.5 | 9.7 | 180 |
| 7G2.5 | 10.1 | 232 |
| 8G2.5 | 11.3 | 274 |
| 12G2.5 | 13.9 | 377 |
| 18G2.5 | 17.1 | 575 |
| 25G2.5 | 20.7 | 786 |
| 34G2.5 | 21.7 | 1080 |
| 50G2.5 | 28.7 | 1566 |
| 3G4 | 9.3 | 176 |
| 4G4 | 10.2 | 219 |
| 5G4 | 11.6 | 269 |
| 7G4 | 12.8 | 356 |
| 3G6 | 11.0 | 255 |
| 4G6 | 12.3 | 323 |
| 5G6 | 13.5 | 391 |
| 7G6 | 14.9 | 519 |
| 3G10 | 14.0 | 411 |
| 4G10 | 15.0 | 513 |
| 5G10 | 17.1 | 650 |
| 7G10 | 18.8 | 844 |
| 3G16 | 18.2 | 653 |
| 4G16 | 19.2 | 844 |
| 5G16 | 21.3 | 1012 |
| 7G16 | 23.8 | 1367 |
| 4G25 | 23.0 | 1252 |
| 5G25 | 25.8 | 1548 |
| 7G25 | 28.5 | 2078 |
| 4G35 | 26.7 | 1658 |
| 5G35 | 29.5 | 2029 |
| 7G35 | 38.0 | 3156 |
| 4G50 | 31.5 | 2360 |
| 5G50 | 34.7 | 2920 |
| 4G70 | 35.7 | 3201 |
| 5G70 | 40.0 | 4011 |
| 4G95 | 41.1 | 4259 |
| 5G95 | 45.6 | 5292 |
| 4G120 | 45.1 | 5263 |
| 4G150 | 62.3 | 8340 |
| 4G185 | 67.0 | 9904 |
G: with green-yellow earth core
×: without green-yellow earth core
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
