Windmill Cables
PUR Sheathed, Halogen Free Data Cable
Application
These halogen free cables are used as drag chain cables for frequent and quick lifting and bending stresses in
machine engineering and construction, in robot technology and on permanently moving machine components.
Standards
UL AWM Style 20233
CSA AWM I/II A/B

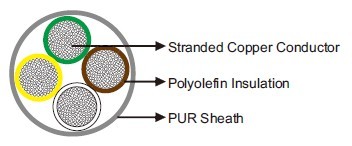

Construction
Conductor: Stranded bare copper, class 6 according to VDE 0295/BS 6360.
Insulation: Polyolefin.
Sheath: Full polyurethane sheath TMPU.
Technical Data
Rated Voltage Uo/U (Um):300V
Operating Temperatures:flexing: -40℃~+80℃; fixed: -50℃~+80℃
Minimum Bending Radius:flexing: 5×OD; fixed: 3×OD
Flame Retardant:VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
Halogen Free:Yes
Oil Resistant:Yes
Ozone, Oxygen Resistant:Yes
Silicone Free:Yes
UV Resistant:Yes
Abrasion Resistance:Yes
Dimensions and Weight
Construction | Nominal Overall Diameter | Nominal Weight |
---|---|---|
No. of cores×mm² | mm | kg/km |
26AWG | ||
2×0.14 | 3.9 | 22 |
3×0.14 | 4.0 | 24 |
4×0.14 | 4.3 | 29 |
5×0.14 | 4.7 | 33 |
7×0.14 | 5.3 | 47 |
10×0.14 | 6.1 | 57 |
12×0.14 | 6.2 | 63 |
14×0.14 | 6.5 | 72 |
18×0.14 | 7.2 | 80 |
24×0.14 | 8.2 | 110 |
25×0.14 | 8.6 | 115 |
24AWG | ||
2×0.25 | 4.3 | 26 |
3×0.25 | 4.5 | 30 |
4×0.25 | 4.8 | 39 |
5×0.25 | 5.2 | 44 |
7×0.25 | 6.0 | 52 |
10×0.25 | 6.9 | 70 |
12×0.25 | 7.1 | 84 |
14×0.25 | 7.4 | 97 |
18×0.25 | 8.2 | 114 |
24×0.25 | 9.6 | 157 |
25×0.25 | 10.1 | 160 |
22AWG | ||
2×0.34 | 4.6 | 31 |
3×0.34 | 4.8 | 38 |
4×0.34 | 5.2 | 51 |
5×0.34 | 5.6 | 54 |
7×0.34 | 6.5 | 77 |
10×0.34 | 7.5 | 104 |
12×0.34 | 7.7 | 122 |
14×0.34 | 8.1 | 140 |
18×0.34 | 9.2 | 162 |
24×0.34 | 10.7 | 204 |
25×0.34 | 11.2 | 229 |
