Windmill Cables
PROFInet AWG 22/7
Application
PROFInet AWG 22/7 cables with oil-resistant FRNC sheath and increased temperature resistance are designed
for extreme industrial applications in the wind turbine area and similar sectors.
Standards
PROFInet Draft

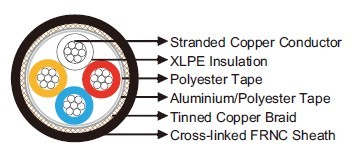

Construction
Conductor: Tinned copper AWG 22/7 (Section 0.34 mm²).
Insulation: XLPE.
Cable Element: Star quad.
Screen 1: Polyester tape over stranded bundle.
Screen 2: Aluminium/Polyester tape.
Overall Screen: Tinned copper braid.
Sheath: Cross-linked FRNC.
Technical Data
Operating Temperatures:-40℃~+105℃
Minimum Bending Radius:46mm
Impedance @1~100MHz:100Ohm +/-15%
Maximum Conductor Resistance @20°C:60Ohm/km
Nominal Mutual Capacitance:57nF/km
Minimum Insulation Resistance:0.5GOhm×km
Attenuation @10MHz:6.3dB/100m
Attenuation @16MHz:8dB/100m
Attenuation @62.5MHz:16.5dB/100m
Attenuation @100MHz:21.3dB/100m
Next @10MHz:70dB
Next @16MHz:65dB
Next @62.5MHz:55dB
Next @100MHz:50dB
ACR @10MHz:63.7dB
ACR @16MHz:57dB
ACR @62.5MHz:38.5dB
ACR @100MHz:28.7dB
Flame Retardant:IEC 60332-1
Halogen Free:IEC 60754
Oil Resistant:Yes
UV Resistant:Yes
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. of cores×mm² | mm | kg/km |
| 2×2×0.34 | 6.5 | 64 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
