  Windmill Cables

I-V(ZN)Y11Y Fibre Optic Breakout Cable

Application

I-V(ZN)Y11Y Fibre Optic Breakout Cables are designed for industrial use, can use in wind turbines, medium

distance communication, factory automation, etc. It contains two break-out units Ø2.2mm, each with a large core

step index multi mode fibre.

Standards

IEC 60794

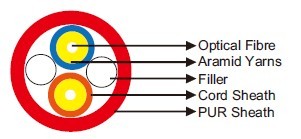

Construction

Core Type: Tight buffer.

Strain Relief: Aramid yarns.

Outer Sheath: PUR.

Technical Data

Operating Temperatures:-40℃~+80℃

Minimum Bending Radius:50mm

Torsion Application:180°/m

Oil Resistant:Yes

Dimensions and Weight

Construction	Core/Cladding Diameter	Nominal Overall Diameter	Nominal Weight
No. of fibres	μm	mm	kg/km
2	200/230	7.0	43

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
