K13 PVC Subway Signalling Cables for Metro/Local Trains/Tramlines



Application

The cables are designed for remote control and teletransmission in underground railway networks. The cables

can be laid in channel, cable tray, or on hook supports, along suburban railway lines electrifi ed at maximum

1500V DC

Standards

AFNOR NF F 55-633

Construction

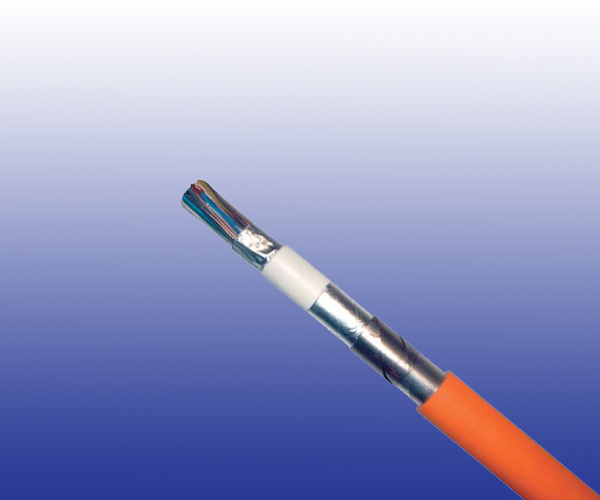

K13 PVC Subway Signalling Cables for Metro/Local Trains/Tramlines

Conductors: Solid copper conductor, 0.6/0.8/1.0/1.2 mm nominal diameter.

Insulation: Polyethylene insulation.

Cabling Element: Pair/Quad.

Stranding: 4-pair cables are composed of pairs, while other cables are composed of star quads.

Spare Pairs: Spare pairs may be provided according to capacity of cables.

Core Wrapping: One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap.

Screen: Aluminium/Nylon tape bonded with a special PVC sealing sheath or Aluminium/PE tape bonded with a

halogen-free fi re-retardant sheath.

Drain Wire: A tinned copper drain wire, 0.5mm nominal diameter.

Bedding: Several glass silk tapes are helically laid with an overlap to form bedding.

Armour: Two helically applied steel tapes.

Outer Sheath: LSPVC.

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 0.6 0.8 1.0 1.2
Nominal Mutual Capacity nF/km 57.5 57.5 57.5 57.5
Minimum Insulation Resistance MΩ.km 5000 5000 5000 5000
Maximum Operating Voltage V 200 400 500 750
Maximum Permissible Current A 0.35 0.63 1.0 1.4

Mechanical and Thermal Properties

Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)

Temperature Range: -40℃ to +60℃ (during operation);

                                 -20℃ to +50℃ (during installation)

Core Identification

4-pair cable:

Pair1: black/colourless Pair2: blue/ colourless

Pair3: yellow/colourless Pair4: red/ colourless

Other cable:

Side circuit 1 of a quad a-wire: sequence of black/blue/yellow/red/green/blue/yellow, etc.

b-wire: colourless

Side circuit 2 of a quad a-wire: grey

b-wire: white

Unit binder: sequence of white/blue/yellow/brown/black/red/green/violet

Dimensions And Weight

Cable Code Number of Pairs Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
0.6mm Conductor, 0.96mm Insulated Wire
RS/K13-2Y(L)2YBY-4P0.6 4 1.0 1.0 12.5 220
RS/K13-2Y(L)2YBY-8P0.6 8(4Q) 1.0 1.0 13.5 260
RS/K13-2Y(L)2YBY-14P0.6 14(7Q) 1.0 1.2 15.5 350
RS/K13-2Y(L)2YBY-28P0.6 28(14Q) 1.0 1.4 17.5 480
RS/K13-2Y(L)2YBY-56P0.6 56(4 x 7Q) 1.0 1.4 22.0 750
0.8mm Conductor, 1.27mm Insulated Wire
RS/K13-2Y(L)2YBY-4P0.8 4 1.0 1.0 14.0 280
RS/K13-2Y(L)2YBY-8P0.8 8(4Q) 1.0 1.2 15.0 340
RS/K13-2Y(L)2YBY-14P0.8 14(7Q) 1.0 1.4 18.0 470
RS/K13-2Y(L)2YBY-28P0.8 28(14Q) 1.0 1.4 21.0 700
RS/K13-2Y(L)2YBY-56P0.8 56(4 x 7Q) 1.0 1.6 28.5 1200
1.0mm Conductor, 1.8mm Insulated Wire
RS/K13-2Y(L)2YBY-4P1 4 1.0 1.2 15.5 340
RS/K13-2Y(L)2YBY-8P1 8(4Q) 1.0 1.4 17.5 460
RS/K13-2Y(L)2YBY-14P1 14(7Q) 1.0 1.4 20.5 630
RS/K13-2Y(L)2YBY-28P1 28(14Q) 1.0 1.6 25.0 990
RS/K13-2Y(L)2YBY-56P1 56(4 x 7Q) 1.0 1.8 34.0 1700
1.2mm Conductor, 2.0mm Insulated Wire
RS/K13-2Y(L)2YBY-2P1.2 2(1Q) 1.0 1.2 12.5 240
RS/K13-2Y(L)2YBY-4P1.2 4 1.0 1.4 17.0 420
RS/K13-2Y(L)2YBY-8P1.2 8(4Q) 1.0 1.4 18.5 530
RS/K13-2Y(L)2YBY-14P1.2 14(7Q) 1.0 1.4 21.5 740
RS/K13-2Y(L)2YBY-28P1.2 28(14Q) 1.0 1.6 27.5 1250
