RAILSIG Railway Signalling & Control Cables

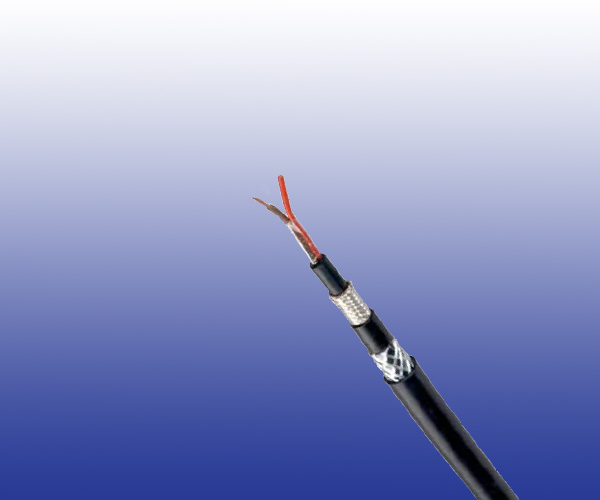

EUROBALISE SIF
Application
EUROBALISE SIF cables are used in Eurobalise (ERTMS) speed control circuits. The cables are laid in trays
alongside railway lines and connect an “Eurobalise” located between the rails to the Eurocoder (LEU) located in
a control centre.
Construction
Conductors: Class 2 stranded copper.
Insulation: Solid polyethylene.
Inner sheath: Low density polyethylene.
Screen: Two corrugated copper braid shields.
Intermediate Sheath: Low density polyethylene.
Armour: Galvanized steel braid armour.
Outer Sheath: Flame Retardant PVC.
Reference Standards
ALSTOM 5 326 203
SNCF CT 446
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 1.04 |
|---|---|---|
| Nominal Cross Section Area | mm² | 0.85 |
| Maximum Conductor Resistance (DC) | Ω/km | 22 |
| Characteristic Impedance @100KHz-1MHz | Ω | 95 |
| Maximum Attenuation | ||
| @560 kHz | dB/km | 7.5 |
| @1MHz | dB/km | 10 |
| Nominal Insulated Thickness | mm | 0.63 |
Mechanical and Thermal Properties
Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)
Temperature Range: -30℃ to +70℃ (during operation);
-20℃ to +50℃ (during installation)
Dimensions And Weight
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
||
|---|---|---|---|---|---|---|---|
| Inner | Inter. | Outer | |||||
| RS/SIF-2Y2YC2Y(SWB)Y-2C0.85S | 2 x 0.85 | 7/0.386 | 1.0 | 0.5 | 1.6 | 15 | 301 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
