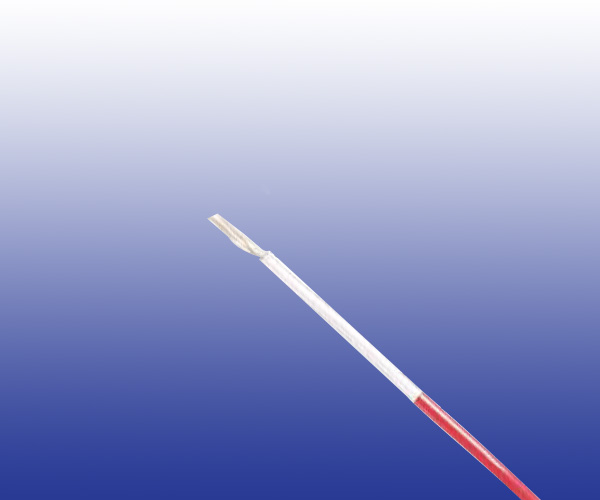

CV /CVZ Indoor Equipment Cables
Application
CV /CVZ Indoor Equipment Cables are used as cabling wires for the relays and electronic equipments in the
Traffi c Control Center and Trackside Equipment Shelter. The CV cables are suitable for use only in Optical
Control Panel (OCP) wiring.
Reference Standards
SNCF CT 500
Construction
Conductors: Class 5 stranded tinned copper (for flexible wires CV-S & CVZ-S type), class 1 solid tinned copper
(for stiff wires CV & CVZ), 0.5/1.0/2.5/6.0 mm² cross section.
Insulation: White (for CVZ type)/coloured (for CV type) unleaded PVC.
Sheath: Coloured polyamide outer sheath (for CVZ & CVZ-S type).
Electrical Characteristics at 20℃
CV/CVZ
Nominal Conductor Diameter |
mm | 0.8 | 1.17 | 1.78 |
|---|---|---|---|---|
Nominal Cross Section Area |
mm² | 0.5 | 1.0 | 2.5 |
Maximum Conductor Resistance(DC) |
Ω/km | 36.1 | 17.9 | 7.56 |
Operating Voltage |
V | 750 | ||
CV-S/CVZ-S
No of Strands/ Strand Diameter |
No/mm | 16/0.2 | 32/0.2 | 50/0.25 | 84/0.3 |
|---|---|---|---|---|---|
Nominal Cross Section Area |
mm² | 0.5 | 1.0 | 2.5 | 6 |
Maximum Conductor Resistance (DC) |
Ω/km | 40.1 | 20.0 | 8.21 | 3.39 |
Operating Voltage |
V | 750 | |||
Mechanical and Thermal Properties
Minimum Bending Radius (static): 4×OD (for fl exible wire); 5×OD (for stiff wire)
Minimum Bending Radius (dynamic): 8×OD (for fl exible wire); 10×OD (for stiff wire)
Operating Temperature: -15℃ to +70℃
Dimensions And Weight
CV/CVZ Cables
| Cable Code | Number of Conductors | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|
| 0.8mm Conductor, 1.6mm Insulated Wire | ||||
| RS/CV-075-Y-1G0.5 | 1 | - | - | 6 |
| 1.17mm Conductor, 1.9mm Insulated Wire | ||||
| RS/CVZ-075-Y(4Y)-1G1 | 1 | 0.2 | 2.3 | 13.2 |
| 1.78mm Conductor, 2.7mm Insulated Wire | ||||
| RS/CVZ-075-Y(4Y)- 1G2.5 | 1 | 0.2 | 3.1 | 29.3 |
CV-S/CVZ-S Cables
| Cable Code | Number of Conductors | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|
| 16/0.2mm Conductor, 1.6mm Insulated Wire | ||||
| RS/CV-S-075-Y-1G0.5 | 1 | - | - | 6.8 |
| RS/CVZ-S-075-Y(4Y)-1G0.5 | 1 | 0.35 | 2.3 | 7.6 |
| 32/0.2mm Conductor, 2.1mm Insulated Wire | ||||
| RS/CVZ-S-075-Y(4Y)-1G1 | 1 | 0.2 | 2.5 | 13.5 |
| RS/CVZ-S-075-Y(4Y)-1P1S | 1P | 0.2 | 2.5 | 28.2 |
| 50/0.25mm Conductor, 3.0mm Insulated Wire | ||||
| RS/CVZ-S-075-Y(4Y)- 1G2.5 | 1 | 0.2 | 3.4 | 29.3 |
| 84/0.3mm Conductor, 4.2mm Insulated Wire | ||||
| RS/CVZ-S-075- Y(4Y)-1G6 | 1 | 0.2 | 4.6 | 60.1 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
