RAILFEEDER Railway Power & Control Cables

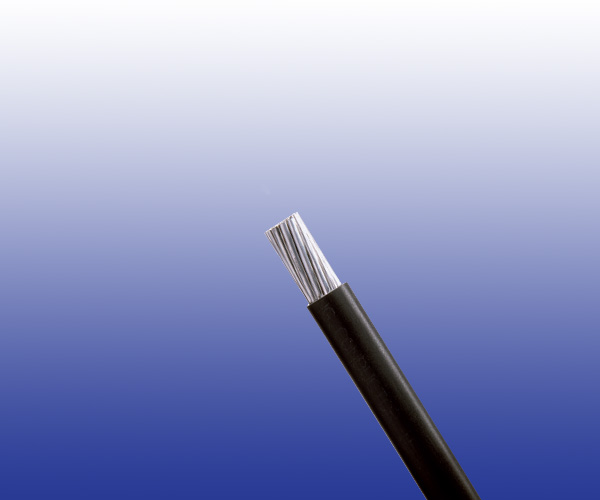

1800V DC Positive Traction Cables
Application
1800V DC Positive Traction Cables are used for urban railways for 1800V DC traction power system with
feedback current and return current, suitable for fixed installation. The cables are suitable for installations in
ducts, tunnels, and cable troughs or on the cable bridges etc.
Construction
Conductor: Stranded annealed bare or metal coated copper conductors to BS EN 60228:2005 (previously
BS6360).
Core wrapping: PETP (Polyethylene Terephthalate).
Insulation: EPR, GP4 to BS 7655-1.2（formerly BS6889 GP2）
Sheath: Thermosetting LSZH compound SW4 to BS 7655-2.6 (formerly BS 7655-2.5 LRS1)with enhanced oil
resistance, and minimum tear resistance.
Reference Standards
NR-PS-ELP-21101
IEC60502-1
BS 6883
Fire Performance
IEC60332-3-22
IEC60754-1, IEC60754-2
IEC61034-1, IEC61034-2
Electrical Characteristics at 20℃
Nominal Conductor Cross Section |
mm2 |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
400 |
500 |
|---|---|---|---|---|---|---|---|---|---|---|
Assigned Continuous Current Rating |
A |
330 |
400 |
464 |
530 |
612 |
648 |
853 |
1010 |
1195 |
Conductor Short Circuit Current 1s |
kA |
10.0 |
13.5 |
17.1 |
21.4 |
26.4 |
34.3 |
42.9 |
57.2 |
71.5 |
Voltage Rating KV |
1.8 |
|||||||||
Mechanical and Thermal Properties
Minimum Bending Radius: 8 x OD
Temperature Range: -40℃ to +90℃ (during operation);
-25℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No. x mm2 |
No. & Nominal Diameter of Strands No/mm |
Nominal Insulation |
Nominal Sheath |
Nominal Overall |
Nominal Weight kg/km |
Max. Resistance of Conductor at 20℃/Ω/Km |
|
|---|---|---|---|---|---|---|---|---|
| Plain Wires |
Metal Coated Wires |
|||||||
| Class 2 Conductor | ||||||||
RF6883-DZ1-U-1800P-1G70S |
1 x 70 |
19/2.14 |
2.2 |
1.8 |
18.3 |
921 |
0.268 |
0.270 |
RF6883-DZ1-U-1800P-1G95S |
1 x 95 |
19/2.52 |
2.4 |
1.8 |
18.7 |
934 |
0.193 |
0.195 |
RF6883-DZ1-U-1800P-1G120S |
1 x 120 |
37/2.03 |
2.4 |
1.8 |
22.6 |
1529 |
0.153 |
0.154 |
RF6883-DZ1-U-1800P-1G150S |
1 x 150 |
37/2.25 |
2.4 |
1.8 |
24.2 |
1828 |
0.124 |
0.126 |
RF6883-DZ1-U-1800P-1G185S |
1 x 185 |
37/2.52 |
2.4 |
1.8 |
26.0 |
2233 |
0.0991 |
0.100 |
RF6883-DZ1-U-1800P-1G240S |
1 x 240 |
61/2.25 |
2.4 |
1.8 |
28.7 |
2856 |
0.0754 |
0.0762 |
RF6883-DZ1-U-1800P-1G300S |
1 x 300 |
61/2.52 |
2.4 |
2.0 |
31.5 |
3848 |
0.0601 |
0.0607 |
RF6883-DZ1-U-1800P-1G400S |
1 x 400 |
61/2.85 |
2.6 |
2.1 |
35.1 |
4491 |
0.0470 |
0.0475 |
RF6883-DZ1-U-1800P-1G500S |
1 x 500 |
91/2.65 |
2.8 |
2.9 |
40.2 |
5773 |
0.0366 |
0.0369 |
RF6883-DZ1-U-1800P-1G630S |
1 x 630 |
127/2.52 |
2.8 |
2.9 |
44.2 |
7293 |
0.0283 |
0.0286 |
RF6883-DZ1-U-1800P-1G800S |
1 x 800 |
127/2.85 |
2.8 |
2.9 |
48.5 |
9157 |
0.0221 |
0.0224 |
Class 5 Conductor |
||||||||
RF6883-DZ1-U-1800P-1G70S |
1 x 70 |
360/0.5 |
2.2 |
1.8 |
18.3 |
921 |
0.272 |
0.277 |
RF6883-DZ1-U-1800P-1G95S |
1 x 95 |
475/0.5 |
2.4 |
1.8 |
18.7 |
934 |
0.206 |
0.210 |
RF6883-DZ1-U-1800P-1G120S |
1 x 120 |
608/0.5 |
2.4 |
1.8 |
22.6 |
1529 |
0.161 |
0.164 |
RF6883-DZ1-U-1800P-1G150S |
1 x 150 |
756/0.5 |
2.4 |
1.8 |
24.2 |
1828 |
0.129 |
0.132 |
RF6883-DZ1-U-1800P-1G185S |
1 x 185 |
925/0.5 |
2.4 |
1.8 |
26.0 |
2233 |
0.106 |
0.108 |
RF6883-DZ1-U-1800P-1G240S |
1 x 240 |
1221/0.5 |
2.4 |
1.8 |
28.7 |
2856 |
0.0801 |
0.0817 |
RF6883-DZ1-U-1800P-1G300S |
1 x 300 |
1525/0.5 |
2.4 |
2.0 |
31.5 |
3848 |
0.0641 |
0.0654 |
RF6883-DZ1-U-1800P-1G400S |
1 x 400 |
2013/0.5 |
2.6 |
2.1 |
35.1 |
4491 |
0.0486 |
0.0495 |
RF6883-DZ1-U-1800P-1G500S |
1 x 500 |
1769/0.6 |
2.8 |
2.9 |
40.2 |
5773 |
0.0384 |
0.0391 |
RF6883-DZ1-U-1800P-1G630S |
1 x 630 |
2257/0.6 |
2.8 |
2.9 |
44.2 |
7293 |
0.0287 |
0.0292 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
