Mining Cable
NSGAFOEU/NSHXAFOE Medium-Voltage Single Core Cables
Applications
NSGAFOEU/NSHXAFOE Medium-Voltage Single Core Cables are designed for fixed installation in track-bound
vehicles and buses,in pipes and closed installation ducts, as well as for theconnection of mobile parts. 3 kV-
rated cables can beused in low-voltage switch boards to ensure inherentlyshort-circuit and earth-fault proof
connections.
Standards
DIN VDE 0250 Part 602 (for NSGAFOEU/NSGAFCMOEU)
DIN VDE 0250 Part 606 (for halogen free versionNSHXAFOE/NSHXAFCMOE)

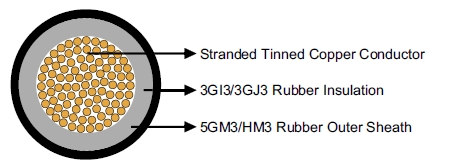

Construction
Conductors: Stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Inner Conductor Layer (for 6kV): Semi-conducting layer.
Insulation: EPR compound type 3GI3/3GJ3.
Optional Screen (for NSGAFCMOEU/NSHXAFCMOE): Tinned copper wires.
Outer Sheath: Chlorinated rubber type 5GM3, oil resistant and flame retardant (for NSGAFOEU/ NSGAFCMOEU).
Halogen-free polymer compound HM3, oil-resistant, flame retardant, low smoke (for NSHXAFOE//NSHXAFOE).
Dimensions and Weight
NSGAFOEU/NSHXAFOE 1.8/3kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. ×mm² | mm | mm | kg/km |
| 1×1.5 | 5.7 | 7.0 | 50 |
| 1×2.5 | 6.0 | 7.5 | 60 |
| 1×4 | 6.8 | 9.0 | 80 |
| 1×6 | 7.3 | 9.5 | 100 |
| 1×10 | 8.7 | 11.0 | 160 |
| 1×16 | 10.0 | 13.0 | 230 |
| 1×25 | 12.4 | 15.0 | 340 |
| 1×35 | 13.4 | 16.5 | 430 |
| 1×50 | 14.9 | 18.0 | 580 |
| 1×70 | 16.6 | 20.5 | 780 |
| 1×95 | 19.3 | 24.0 | 1030 |
| 1×120 | 20.8 | 26.0 | 1270 |
| 1×150 | 23.0 | 28.0 | 1570 |
| 1×185 | 25.2 | 31.0 | 1900 |
| 1×240 | 28.1 | 34.5 | 2500 |
| 1×300 | 30.8 | 38.0 | 3000 |
| 1×400 | 40.0 | 34.6 | 4000 |
NSGAFOEU/NSHXAFOE 3.6/6kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. ×mm² | mm | mm | kg/km |
| 1×1.5 | 8.3 | 9.5 | 135 |
| 1×2.5 | 8.6 | 10.5 | 150 |
| 1×4 | 9.4 | 12.0 | 170 |
| 1×6 | 9.9 | 13.0 | 200 |
| 1×10 | 10.9 | 14.5 | 250 |
| 1×16 | 12.6 | 15.5 | 350 |
| 1×25 | 14.5 | 17.5 | 480 |
| 1×35 | 15.6 | 19.0 | 600 |
| 1×50 | 17.1 | 21.0 | 760 |
| 1×70 | 18.8 | 23.0 | 960 |
| 1×95 | 21.3 | 26.5 | 1240 |
| 1×120 | 23.2 | 28.5 | 1530 |
| 1×150 | 25.0 | 30.5 | 1790 |
| 1×185 | 26.8 | 33.0 | 2130 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
NSGAFCMOEU/NSHXAFCMOE 3.6/6kV
| Number of Cores×Nominal Cross Section | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No.×mm² | mm | kg/km |
| 1×185 | 38.5 | 3060 |
