Type W Four-Conductor Portable Power Cable 2kV

Applications

Type W Four-Conductor Portable Power Cables are designed for use on ACmining equipment, such as A.C.

shuttle cars, drills, cutting and loading machines

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

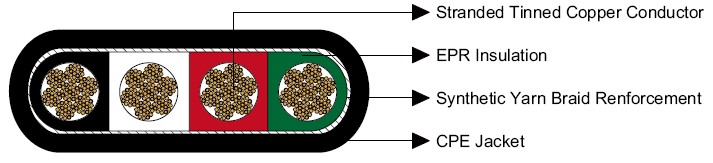

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Reinforcement: Synthetic yarn.

Sheath: Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon

request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Nominal Insulation Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	inch	mm	inch	mm	lbs/kft	kg/km	A
4×6	133	0.06	1.5	0.67×1.69	17.0×42.9	895	1332	72
4×4	259	0.06	1.5	0.75×1.89	19.0×48.0	1185	1764	93
4×2	259	0.06	1.5	0.84×2.23	20.6×56.6	1620	2411	122
4×1	259	0.08	2.0	0.97×2.60	24.6×66.0	2100	3125	143
4×1/0	259	0.08	2.0	1.01×2.73	25.7×69.3	2500	3721	165
4×2/0	329	0.08	2.0	1.10×2.96	27.9×75.2	2900	4316	192
4×3/0	413	0.08	2.0	1.18×3.25	30.0×82.6	3500	5209	221
4×4/0	532	0.08	2.0	1.29×3.46	32.8×87.9	4225	6288	255

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
