Mining Cable
Type 245 1.1 to 6.6KV
Applications
Type 245 1.1 to 6.6KV cables are mainly used as longwall shearer cables, and also for continuous miners and
peripheral longwall cables.Cable has 3 central pilots for earth continuity monitoring and for control circuits.
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808

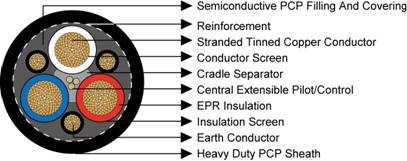

AS/NZS 5000.1Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded
semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: SemiconductivePCP filling andcovering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.
3×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.
Dimensions and Weight
| Nominal Conductor Area | Strand Size | Insulation Thickness | Earth Conductor | Pilot Conductor | Thickness of Sheath Including SC PCP Layer | Nominal Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| Strand Size | Thickness of Covering | Strand Size | Thickness of Covering | ||||||
| mm² | No/mm | mm | No/mm | mm | No/mm | mm | mm | mm | kg/100m |
| Type 245.1 | |||||||||
| 16 | 133/0.40 | 2.0 | 69/0.25 | 1.8 | 28/0.25 | 0.8 | 4.1 | 42.6 | 235 |
| 25 | 259/0.36 | 1.6 | 91/0.25 | 1.8 | 28/0.25 | 0.8 | 4.2 | 43.4 | 269 |
| 35 | 287/0.40 | 1.6 | 140/0.25 | 1.4 | 28/0.25 | 0.8 | 4.4 | 45.6 | 315 |
| 50 | 703/0.30 | 1.7 | 120/0.30 | 1.0 | 28/0.25 | 0.8 | 4.8 | 48.4 | 390 |
| 70 | 988/0.30 | 1.8 | 180/0.30 | 1.0 | 28/0.25 | 0.8 | 5.1 | 53.9 | 501 |
| 95 | 1332/0.30 | 2.0 | 150/0.30 | 1.0 | 28/0.25 | 0.8 | 5.6 | 60.4 | 630 |
| 120 | 1702/0.30 | 2.1 | 195/0.30 | 1.2 | 28/0.25 | 0.8 | 6.0 | 65.5 | 765 |
| 150 | 2146/0.30 | 2.3 | 235/0.30 | 1.2 | 28/0.25 | 0.8 | 6.3 | 70.5 | 915 |
| Type 245.3 | |||||||||
| 25 | 259/0.36 | 3.0 | 91/0.25 | 1.5 | 28/0.25 | 0.8 | 5.2 | 51.1 | 338 |
| 35 | 287/0.40 | 3.0 | 140/0.25 | 1.0 | 28/0.25 | 0.8 | 5.4 | 54.5 | 398 |
| 50 | 703/0.30 | 3.0 | 120/0.30 | 1.0 | 28/0.25 | 0.8 | 5.7 | 56.8 | 490 |
| 70 | 988/0.30 | 3.0 | 180/0.30 | 1.2 | 28/0.25 | 0.8 | 6.0 | 61.2 | 592 |
| 95 | 1332/0.30 | 3.0 | 235/0.30 | 1.2 | 28/0.25 | 0.8 | 6.4 | 66.6 | 739 |
| 120 | 1702/0.30 | 3.0 | 300/0.30 | 1.2 | 28/0.25 | 0.8 | 6.7 | 71.0 | 870 |
| 150 | 2146/0.30 | 3.0 | 375/0.30 | 1.2 | 28/0.25 | 0.8 | 7.0 | 75.2 | 1028 |
| Type 245.6 | |||||||||
| 50 | 703/0.30 | 5.0 | 120/0.30 | 1.4 | 28/0.25 | 0.8 | 6.7 | 67.2 | 635 |
| 70 | 988/0.30 | 5.0 | 180/0.30 | 1.4 | 28/0.25 | 0.8 | 7.0 | 71.7 | 755 |
| 95 | 1332/0.30 | 5.0 | 235/0.30 | 1.4 | 28/0.25 | 0.8 | 7.4 | 77.1 | 905 |
| 120 | 1702/0.30 | 5.0 | 300/0.30 | 1.4 | 28/0.25 | 0.8 | 7.7 | 81.3 | 1050 |
| 150 | 2146/0.30 | 5.0 | 375/0.30 | 1.4 | 28/0.25 | 0.8 | 8.0 | 85.8 | 1210 |
