Mining Cable
Type 1 1.1/1.1KV Individually Screened
Applications
Type 1 1.1/1.1KV Individually Screened cables are used for wiring of machines, or between machines and
equipment where PVC is suitable
Standards
AS/NZS 1972:2006
AS/NZS 1125

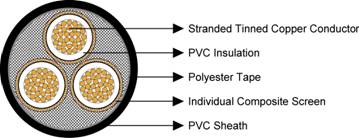

AS/NZS 3808Construction
Conductors: Stranded copper conductor.
Insulation: PVC.
Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Binding: Polyester tape.
Sheath: PVC sheath.Dimensions and Weight
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | |
|---|---|---|---|---|---|---|---|---|
| Strand Size | Area of Screen |
|||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| Type 1 - Individually Screened | ||||||||
| 3 | 1.5 | 30/0.25 | 0.8 | 0.20 | 3.5 | 0.8 | 10.1 | 16 |
| 4 | 1.5 | 30/0.25 | 0.8 | 0.20 | 4.6 | 0.8 | 11.1 | 21 |
| 3 | 10 | 77/0.40 | 1.0 | 0.20 | 6.8 | 1.0 | 18.6 | 59 |
| 4 | 10 | 77/0.40 | 1.0 | 0.20 | 9.0 | 1.0 | 20.5 | 75 |
| 3 | 16 | 126/0.40 | 1.0 | 0.20 | 7.9 | 1.3 | 21.6 | 84 |
| 4 | 16 | 126/0.40 | 1.0 | 0.20 | 10.6 | 1.3 | 23.7 | 110 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
