NEK606 Offshore & Marine Cable
Fire Resistant Instrumention Cables
S113 SFOU(c) 250 V
Applications
S113 SFOU(c) 250 V cables are fire resistant, flame retardant, low smoke and halogen free, used for
emergency instrumentation, communication, control and alarm systems that need to be operational during a
1100℃ hydrocarbon fire.

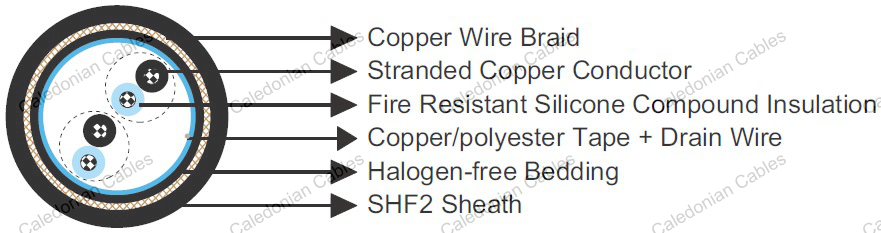

Construction
Conductors : Circular tinned stranded copper wire to IEC 60228 class 2 or class 5.
Insulation : Fire resistant silicone compound.
Twinning : Colour coded cores twisted together.
Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in
contact with a stranded tinned copper drain wire.
Bedding : Halogen free compound.
Armour : Tinned copper wire braid.
Outer Sheath: Halogen free thermosetting compound, SHF2.
Standards
IEC 60092-376
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016
Electrical Characteristics
Nominal Cross Section Area |
mm² |
1.5 |
|---|---|---|
Nominal Conductor Diameter |
mm |
1.6 |
Maximum Resistant@20℃ |
Ω/km |
12.9 |
Mutual Capacitance |
nF/km |
85 |
Nominal Inductance@1KHz |
MH/km |
0.667 |
Operating Voltage |
V |
250 |
Mechanical and Thermal Properties
Bending Radius : 20×OD (during installation); 12×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight
| Construction No. of elements × No. of pair/triple in element × Cross section | Nominal Insulation Thickness |
Diameter under Armour |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|
mm² |
mm |
mm |
mm |
kg/km |
0.75 mm² |
||||
1x2 |
0.9 |
9.5 |
14.0 |
300 |
2x2 |
0.9 |
14.8 |
19.0 |
550 |
4x2 |
0.9 |
17.1 |
22.0 |
710 |
7x2 |
0.9 |
20.8 |
26.0 |
960 |
8x2 |
0.9 |
22.1 |
28.0 |
1080 |
12x2 |
0.9 |
26.7 |
32.0 |
1450 |
16x2 |
0.9 |
30.4 |
37.0 |
1910 |
19x2 |
0.9 |
32.7 |
40.0 |
2170 |
27x2 |
0.9 |
38.5 |
46.0 |
2880 |
37x2 |
0.9 |
44.6 |
52.0 |
3700 |
1x3 |
0.9 |
10.0 |
14.0 |
330 |
2x3 |
0.9 |
16.2 |
21.0 |
650 |
4x3 |
0.9 |
18.9 |
24.0 |
860 |
7x3 |
0.9 |
23.8 |
29.0 |
1210 |
12x3 |
0.9 |
30.3 |
37.0 |
1950 |
1.0mm² |
||||
1x2 |
0.9 |
9.9 |
14.0 |
320 |
2x2 |
0.9 |
15.3 |
20.0 |
600 |
4x2 |
0.9 |
17.9 |
23.0 |
770 |
7x2 |
0.9 |
21.6 |
27.0 |
1060 |
8x2 |
0.9 |
23.2 |
29.0 |
1170 |
12x2 |
0.9 |
27.4 |
34.0 |
1590 |
16x2 |
0.9 |
31.5 |
38.0 |
2090 |
19x2 |
0.9 |
34.2 |
41.0 |
2370 |
27x2 |
0.9 |
40.2 |
48.0 |
3170 |
37x2 |
0.9 |
46.6 |
54.0 |
4090 |
1x3 |
0.9 |
10.6 |
15.0 |
370 |
2x3 |
0.9 |
16.9 |
22.0 |
700 |
4x3 |
0.9 |
19.8 |
25.0 |
930 |
7x3 |
0.9 |
25.1 |
30.0 |
1340 |
12x3 |
0.9 |
31.7 |
39.0 |
2130 |
1.5 mm² |
||||
1x2 |
1.0 |
11.3 |
16.0 |
390 |
2x2 |
1.0 |
14.7 |
22.0 |
700 |
4x2 |
1.0 |
17.6 |
25.0 |
930 |
7x2 |
1.0 |
21.6 |
30.0 |
1280 |
8x2 |
1.0 |
23.2 |
32.0 |
1440 |
12x2 |
1.0 |
28.3 |
38.0 |
2100 |
16x2 |
1.0 |
32.5 |
43.0 |
2610 |
19x2 |
1.0 |
35.3 |
46.0 |
2990 |
27x2 |
1.0 |
41.9 |
53.0 |
4010 |
37x2 |
1.0 |
48.8 |
61.0 |
5200 |
1x3 |
1.0 |
11.9 |
16.0 |
420 |
2x3 |
1.0 |
16.4 |
24.0 |
850 |
4x3 |
1.0 |
19.5 |
28.0 |
1120 |
7x3 |
1.0 |
25.2 |
33.0 |
1650 |
12x3 |
1.0 |
32.4 |
43.0 |
2640 |
