NEK606 Offshore & Marine Cable
Fire Resistant Medium Voltage Power Cables
P124 RFOU / TFOU-FIRE RESISTANT 18/30 (36) kV
Applications
P124 RFOU / TFOU-FIRE RESISTANT 18/30 (36) kV cables are fire resistant, flame retardant, low smoke
and halogen free, used for emergency control, power and lighting systems that need to be operational during a
1100℃ hydrocarbon fire.

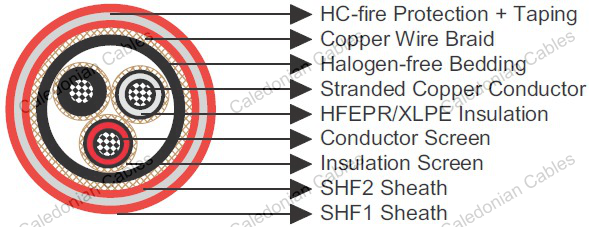

Construction
Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Conductor Screen : Semi conducting material.
Insulation : Halogen-free EPR or XLPE.
Insulation Screen : Semi conducting material and tinned copper wire braid.
Bedding : Halogen free compound.
Armour : Tinned copper wire braid.
Outer Sheath : Halogen free thermosetting compound, SHF2, coloured red.
Optional Fire protection : Extruded thermoplastic fire protection compound.
Optional Taping : Lapped glass fibre tape.
Optional Sheath : Flame retardant halogen-free thermoplastic compound, SHF1, coloured red.
Standards
IEC 60092-354
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016
Electrical Characteristics
| Nominal Cross Section Area | mm² |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
|---|---|---|---|---|---|---|---|---|
Nominal Conductor Diameter |
mm |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
Maximum DC Resistant@20℃ |
Ω/km |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
Continuous Current Rating@45℃ 1 Core |
A |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
Continuous Current Rating@45℃ 3 Core |
A |
169 |
205 |
237 |
272 |
311 |
365 |
421 |
Short Circuit Current 1s |
A |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
Operating Voltage |
KV |
18/30 |
18/30 |
18/30 |
18/30 |
18/30 |
18/30 |
18/30 |
Ambient Temperature Correction Factors
Ambient Temperature Correction Factors |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|---|---|---|---|---|---|---|---|---|---|---|
Rating Factor |
1.1 |
1.05 |
1.0 |
0.94 |
0.88 |
0.82 |
0.74 |
0.67 |
0.58 |
0.47 |
Mechanical and Thermal Properties
Bending Radius : 20×OD (during installation); 12×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight
| Construction No. of cores × Cross section | Nominal Insulation Thickness |
Nominal Diameter under armour |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|
mm² |
mm |
mm |
mm |
kg/km |
1×50 |
8.0 |
43 |
75.5 |
6210 |
1×70 |
8.0 |
45 |
77.5 |
6940 |
1×95 |
8.0 |
46 |
78.5 |
7390 |
1×120 |
8.0 |
48 |
80.5 |
7760 |
1×150 |
8.0 |
50 |
83 |
8405 |
1×185 |
8.0 |
53 |
86 |
9430 |
1×240 |
8.0 |
57 |
90 |
10540 |
1×300 |
8.0 |
81 |
114 |
13255 |
3×50 |
8.0 |
89 |
123 |
16520 |
3×95 |
8.0 |
95 |
129.5 |
19145 |
3×150 |
8.0 |
79.4 |
94 |
11090 |
