NEK606 Offshore & Marine Cable
Power and Control Cables
P119 RX / TX 0.6/1 kV
Applications :
- P119 RX / TX 0.6/1 kV cables are flame retardant, low smoke and halogen free, used for earthing and
- bonding services.
Construction

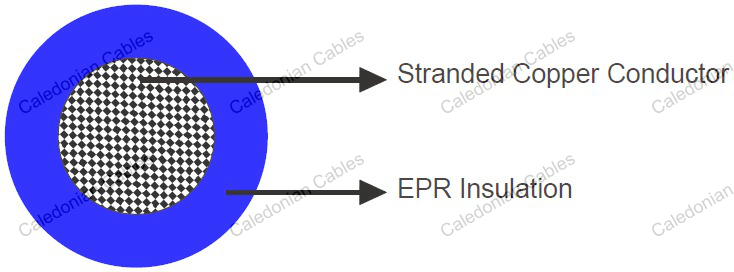

Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Insulation : Halogen-free EPR or XLPE. Blue,brown, black or grey. Blue, brown, black or grey.
Standards :
IEC 60092-354
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016
Electrical Characteristics
| Nominal Cross Section Area | mm² |
10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal Conductor Diameter |
mm |
4.0 |
5.1 |
6.5 |
7.4 |
8.7 |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
Maximum DC Resistant@20℃ |
Ω/km |
1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
Continuous Current Rating@45℃ 1 Core |
A |
72 |
96 |
127 |
157 |
196 |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
Short Circuit Current 1s |
A |
1430 |
2290 |
3580 |
5010 |
7150 |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight
Construction No. of cores × Cross section |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|
mm² |
mm |
mm |
kg/km |
1×1.5 |
1.0 |
3.6 |
267 |
1×2.5 |
1.0 |
4.1 |
317 |
1×4 |
1.0 |
4.6 |
385 |
1×6 |
1.0 |
5.2 |
460 |
1×10 |
1.0 |
6.0 |
591 |
1×16 |
1.0 |
7.1 |
752 |
1×25 |
1.2 |
8.9 |
1140 |
1×35 |
1.2 |
9.8 |
1371 |
1×50 |
1.4 |
11.5 |
1874 |
1×70 |
1.4 |
13.1 |
2330 |
1×95 |
1.6 |
15.8 |
3156 |
1×120 |
1.6 |
17.4 |
3656 |
1×150 |
1.8 |
19.4 |
4541 |
1×185 |
2.0 |
21.6 |
5663 |
1×240 |
2.2 |
24.7 |
7226 |
1×300 |
2.4 |
27.5 |
8892 |
