MRE-2X(St)H150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)
Application
MRE-2X(St)H150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Flame Retardant
Instrumentation & Control Cables (Multipair/Multitriple) are used on board of ships at all locations for fixed
installations not subject to mechanical risk complying with IEC standards 60092-352. marine cables are flame
retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial
vessels.
Standards
IEC 60092-350/360/376
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

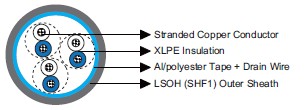

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: XLPE.
Cabling Element: Pair/Triple.
Overall Screen: Al/polyester tape.
Drain Wire: Tinned copper wire.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
| Part No. | Construction No. of elements×No. of cores in element×Cross section mm² |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|---|---|---|---|---|---|
| MRE-2X(St)H-2P0.5 | 2×2×0.5 | 0.4 | 1.0 | 8.5 | 75 |
| MRE-2X(St)H-4P0.5 | 4×2×0.5 | 0.4 | 1.1 | 10.0 | 110 |
| MRE-2X(St)H-7P0.5 | 7×2×0.5 | 0.4 | 1.1 | 12.0 | 160 |
| MRE-2X(St)H-10P0.5 | 10×2×0.5 | 0.4 | 1.2 | 15.0 | 225 |
| MRE-2X(St)H-14P0.5 | 14×2×0.5 | 0.4 | 1.3 | 16.5 | 290 |
| MRE-2X(St)H-19P0.5 | 19×2×0.5 | 0.4 | 1.3 | 18.0 | 370 |
| MRE-2X(St)H-24P0.5 | 24×2×0.5 | 0.4 | 1.4 | 20.5 | 460 |
| MRE-2X(St)H-1P0.75 | 1×2×0.75 | 0.5 | 1.0 | 6.9 | 60 |
| MRE-2X(St)H-2P0.75 | 2×2×0.75* | 0.5 | 1.0 | 7.8 | 80 |
| MRE-2X(St)H-3P0.75 | 3×2×0.75 | 0.5 | 1.1 | 10.8 | 130 |
| MRE-2X(St)H-4P0.75 | 4×2×0.75 | 0.5 | 1.2 | 11.7 | 160 |
| MRE-2X(St)H-7P0.75 | 7×2×0.75 | 0.5 | 1.3 | 14.1 | 240 |
| MRE-2X(St)H-8P0.75 | 8×2×0.75 | 0.5 | 1.3 | 15.0 | 270 |
| MRE-2X(St)H-10P0.75 | 10×2×0.75 | 0.5 | 1.4 | 16.9 | 320 |
| MRE-2X(St)H-12P07.5 | 12×2×0.75 | 0.5 | 1.4 | 17.6 | 360 |
| MRE-2X(St)H-14P0.75 | 14×2×0.75 | 0.5 | 1.4 | 18.3 | 410 |
| MRE-2X(St)H-16P0.75 | 16×2×0.75 | 0.5 | 1.5 | 19.8 | 470 |
| MRE-2X(St)H-19P0.75 | 19×2×0.75 | 0.5 | 1.5 | 20.7 | 530 |
| MRE-2X(St)H-24P0.75 | 24×2×0.75 | 0.5 | 1.6 | 23.5 | 670 |
| MRE-2X(St)H-30P0.75 | 30×2×0.75 | 0.5 | 1.7 | 26.3 | 820 |
| MRE-2X(St)H-32P0.75 | 32×2×0.75 | 0.5 | 1.7 | 26.8 | 860 |
| MRE-2X(St)H-37P0.75 | 37×2×0.75 | 0.5 | 1.8 | 28.3 | 990 |
| MRE-2X(St)H-1P1.0 | 1×2×1.0 | 0.5 | 1.0 | 7.3 | 70 |
| MRE-2X(St)H-2P1.0 | 2×2×1.0* | 0.5 | 1.0 | 8.3 | 100 |
| MRE-2X(St)H-3P1.0 | 3×2×1.0 | 0.5 | 1.2 | 11.8 | 160 |
| MRE-2X(St)H-4P1.0 | 4×2×1.0 | 0.5 | 1.2 | 12.5 | 190 |
| MRE-2X(St)H-7P1.0 | 7×2×1.0 | 0.5 | 1.3 | 15.1 | 290 |
| MRE-2X(St)H-8P1.0 | 8×2×1.0 | 0.5 | 1.3 | 16.1 | 320 |
| MRE-2X(St)H-10P1.0 | 10×2×1.0 | 0.5 | 1.4 | 18.2 | 390 |
| MRE-2X(St)H-12P1.0 | 12×2×1.0 | 0.5 | 1.4 | 18.9 | 450 |
| MRE-2X(St)H-14P1.0 | 14×2×1.0 | 0.5 | 1.5 | 19.8 | 510 |
| MRE-2X(St)H-16P1.0 | 16×2×1.0 | 0.5 | 1.5 | 21.3 | 570 |
| MRE-2X(St)H-19P1.0 | 19×2×1.0 | 0.5 | 1.6 | 22.4 | 670 |
| MRE-2X(St)H-24P1.0 | 24×2×1.0 | 0.5 | 1.7 | 25.5 | 830 |
| MRE-2X(St)H-30P1.0 | 30×2×1.0 | 0.5 | 1.8 | 28.6 | 1030 |
| MRE-2X(St)H-32P1.0 | 32×2×1.0 | 0.5 | 1.8 | 29.1 | 1080 |
| MRE-2X(St)H-37P1.0 | 37×2×1.0 | 0.5 | 1.9 | 30.7 | 1230 |
| MRE-2X(St)H-1P1.5 | 1×2×1.5 | 0.6 | 1.0 | 8.3 | 90 |
| MRE-2X(St)H-2P1.5 | 2×2×1.5* | 0.6 | 1.1 | 9.7 | 140 |
| MRE-2X(St)H-3P1.5 | 3×2×1.5 | 0.6 | 1.2 | 13.6 | 210 |
| MRE-2X(St)H-4P1.5 | 4×2×1.5 | 0.6 | 1.3 | 14.7 | 260 |
| MRE-2X(St)H-7P1.5 | 7×2×1.5 | 0.6 | 1.4 | 17.8 | 400 |
| MRE-2X(St)H-8P1.5 | 8×2×1.5 | 0.6 | 1.4 | 19.0 | 450 |
| MRE-2X(St)H-10P1.5 | 10×2×1.5 | 0.6 | 1.5 | 21.5 | 540 |
| MRE-2X(St)H-12P1.5 | 12×2×1.5 | 0.6 | 1.6 | 22.6 | 630 |
| MRE-2X(St)H-14P1.5 | 14×2×1.5 | 0.6 | 1.6 | 23.4 | 710 |
| MRE-2X(St)H-16P1.5 | 16×2×1.5 | 0.6 | 1.7 | 25.4 | 820 |
| MRE-2X(St)H-19P1.5 | 19×2×1.5 | 0.6 | 1.7 | 26.5 | 930 |
| MRE-2X(St)H-24P1.5 | 24×2×1.5 | 0.6 | 1.9 | 30.4 | 1180 |
| MRE-2X(St)H-30P1.5 | 30×2×1.5 | 0.6 | 2.0 | 34.1 | 1460 |
| MRE-2X(St)H-32P1.5 | 32×2×1.5 | 0.6 | 2.0 | 34.7 | 1540 |
| MRE-2X(St)H-37P1.5 | 37×2×1.5 | 0.6 | 2.1 | 36.6 | 1760 |
| MRE-2X(St)H-1T0.75 | 1×3×0.75 | 0.5 | 1.0 | 7.2 | 70 |
| MRE-2X(St)H-2T0.75 | 2×3×0.75 | 0.5 | 1.1 | 11.0 | 130 |
| MRE-2X(St)H-3T0.75 | 3×3×0.75 | 0.5 | 1.2 | 11.8 | 170 |
| MRE-2X(St)H-4T0.75 | 4×3×0.75 | 0.5 | 1.2 | 12.9 | 210 |
| MRE-2X(St)H-7T0.75 | 7×3×0.75 | 0.5 | 1.3 | 16.2 | 330 |
| MRE-2X(St)H-8T0.75 | 8×3×0.75 | 0.5 | 1.4 | 17.5 | 380 |
| MRE-2X(St)H-10T0.75 | 10×3×0.75 | 0.5 | 1.5 | 19.9 | 460 |
| MRE-2X(St)H-12T07.5 | 12×3×0.75 | 0.5 | 1.5 | 20.9 | 520 |
| MRE-2X(St)H-14T0.75 | 14×3×0.75 | 0.5 | 1.5 | 21.8 | 590 |
| MRE-2X(St)H-16T0.75 | 16×3×0.75 | 0.5 | 1.6 | 23.3 | 670 |
| MRE-2X(St)H-19T0.75 | 19×3×0.75 | 0.5 | 1.7 | 25.3 | 790 |
| MRE-2X(St)H-24T0.75 | 24×3×0.75 | 0.5 | 1.8 | 28.1 | 980 |
| MRE-2X(St)H-30T0.75 | 30×3×0.75 | 0.5 | 1.9 | 31.1 | 1200 |
| MRE-2X(St)H-32T0.75 | 32×3×0.75 | 0.5 | 1.9 | 32.2 | 1270 |
| MRE-2X(St)H-37T0.75 | 37×3×0.75 | 0.5 | 2.0 | 33.9 | 1450 |
| MRE-2X(St)H-1T1.0 | 1×3×1.0 | 0.5 | 1.0 | 7.7 | 80 |
| MRE-2X(St)H-2T1.0 | 2×3×1.0 | 0.5 | 1.2 | 12.1 | 160 |
| MRE-2X(St)H-3T1.0 | 3×3×1.0 | 0.5 | 1.2 | 12.8 | 200 |
| MRE-2X(St)H-4T1.0 | 4×3×1.0 | 0.5 | 1.3 | 14.2 | 260 |
| MRE-2X(St)H-7T1.0 | 7×3×1.0 | 0.5 | 1.4 | 17.8 | 410 |
| MRE-2X(St)H-8T1.0 | 8×3×1.0 | 0.5 | 1.4 | 19.0 | 460 |
| MRE-2X(St)H-10T1.0 | 10×3×1.0 | 0.5 | 1.5 | 21.6 | 560 |
| MRE-2X(St)H-12T1.0 | 12×3×1.0 | 0.5 | 1.6 | 23.0 | 660 |
| MRE-2X(St)H-14T1.0 | 14×3×1.0 | 0.5 | 1.6 | 24.0 | 740 |
| MRE-2X(St)H-16T1.0 | 16×3×1.0 | 0.5 | 1.7 | 25.6 | 840 |
| MRE-2X(St)H-19T1.0 | 19×3×1.0 | 0.5 | 1.8 | 27.8 | 990 |
| MRE-2X(St)H-24T1.0 | 24×3×1.0 | 0.5 | 1.9 | 30.8 | 1230 |
| MRE-2X(St)H-30T1.0 | 30×3×1.0 | 0.5 | 2.0 | 34.2 | 1510 |
| MRE-2X(St)H-32T1.0 | 32×3×1.0 | 0.5 | 2.0 | 35.4 | 1600 |
| MRE-2X(St)H-37T1.0 | 37×3×1.0 | 0.5 | 2.1 | 37.3 | 1830 |
| MRE-2X(St)H-1T1.5 | 1×3×1.5 | 0.6 | 1.1 | 8.9 | 110 |
| MRE-2X(St)H-2T1.5 | 2×3×1.5 | 0.6 | 1.2 | 13.8 | 210 |
| MRE-2X(St)H-3T1.5 | 3×3×1.5 | 0.6 | 1.3 | 14.9 | 280 |
| MRE-2X(St)H-4T1.5 | 4×3×1.5 | 0.6 | 1.3 | 16.3 | 350 |
| MRE-2X(St)H-7T1.5 | 7×3×1.5 | 0.6 | 1.5 | 20.8 | 570 |
| MRE-2X(St)H-8T1.5 | 8×3×1.5 | 0.6 | 1.6 | 22.4 | 660 |
| MRE-2X(St)H-10T1.5 | 10×3×1.5 | 0.6 | 1.7 | 25.5 | 790 |
| MRE-2X(St)H-12T1.5 | 12×3×1.5 | 0.6 | 1.7 | 26.9 | 920 |
| MRE-2X(St)H-14T1.5 | 14×3×1.5 | 0.6 | 1.8 | 28.3 | 1050 |
| MRE-2X(St)H-16T1.5 | 16×3×1.5 | 0.6 | 1.8 | 30.0 | 1180 |
| MRE-2X(St)H-19T1.5 | 19×3×1.5 | 0.6 | 1.9 | 32.5 | 1390 |
| MRE-2X(St)H-24T1.5 | 24×3×1.5 | 0.6 | 2.1 | 36.3 | 1740 |
| MRE-2X(St)H-30T1.5 | 30×3×1.5 | 0.6 | 2.2 | 40.3 | 2150 |
| MRE-2X(St)H-32T1.5 | 32×3×1.5 | 0.6 | 2.3 | 41.9 | 2300 |
| MRE-2X(St)H-37T1.5 | 37×3×1.5 | 0.6 | 2.4 | 44.1 | 2620 |
*: 2 pairs are assembled as a quad.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
