Flame Retardant RG59 CWB/SWB/SWA Armoured Coaxial cables



Application

Flame Retardant RG59 CWB/SWB/SWA Armoured Coaxial cables are suitable for installation on board of

ships and other indoor marine environments.

Standards

Basic design to MIL-C-17



Flame Retardant RG59 CWB/SWB/SWA Armoured Coaxial cables

Fire Performance

Flame Retardance

(Single Vertical

Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE

0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-

1*; DIN VDE 0482-265-2-1*

Reduced Fire

Propagation

(Vertically-mounted

bundled wires

& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-

004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-

4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas

Emission

 IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke

Emission

 IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

CPR Compliance

Eca

Note: Asterisk * denotes superseded standard.

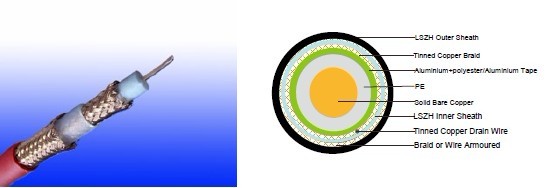

Cable Construction

Conductors: 20AWG solid bare copper.

Insulation: PE compound.

Screen1: Aluminium/polyester or aluminium tape.

Screen2: Tinned copper braid.

Inner Sheath: Low smoke and halogen-free polyolefin, coloured black.

Armouring:

cwb: copper Wire Braid

swb: Steel Wire Braid

swa: Steel Wire Armour

Outer Sheath:

Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as

per BS 7655-2.6 can be offered.)

Physical And Thermal Properties

Temperature Range: -30°C - +75°C

Minimum Bending Radius: 15 X Overall Diameter

Electrical Properties

AWG   20
Nominal Conductor Diameter mm 0.8
Impedance Ω 75+/-5
Nominal Attenuation@100mHz dB/100m 7.6
Nominal Attenuation@270mHz dB/100m 12.5
Nominal Attenuation@540mHz dB/100m 17.9
Nominal Attenuation@720mHz dB/100m 20.9
Nominal Attenuation@750mHz dB/100m 21.3
Nominal Attenuation@1000mHz dB/100m 24.9
Capacitance pF/m 53.5
Velocity of Propagation % 83
Conductor DCR Ω/km 32.8
Shield DCR Ω/km 12.5
Inductance μH/m 0.318
Time Delay ns/m 4.0

Construction Parameters

Cable Code Nominal Inner Conductor Diameter Nominal Insulation Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Nominal
Weight
  mm mm mm mm kg/km
RG59 CWB 0.8 1.4 1.2 9.78 146
RG59 SWB 0.8 1.4 1.2 9.78 114
RG59 SWA 0.8 1.4 1.2 10.8 220

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
