Flame Retardant Coaxial Cables
Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables
FTX-CAT6 U/UTP4P24 cwb/swb/swa
FTX-CAT6 F/UTP4P24 cwb/swb/swa
FTX-CAT6 SF/UTP4P24 cwb/swb/swa
Application
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,100BaseTx
& 1000BaseT (Gigabit Ethernet) application. In addition, Flame Retardant CAT6 CWB/SWB/SWA Armoured
Data Cables cables are with copper wire braid armoured & flame retardant mud resistant outer sheath,
providing additional mechanically protection still maintaining the flexibility of the cable.
Standards
Basic design to EN50173
Fire Performance
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|---|---|
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
Voltage rating
60V

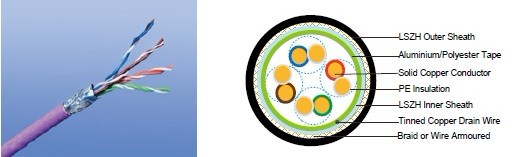

Cable Construction
Conductors: 23AWG solid bare copper.
Insulation: HDPE .
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armouring:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound
type SW2-SW4 as per BS 7655:section 2.6 can be offered.)
Cat6 F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat6 SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid
with drain wire.
Physical And Thermal Properties
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
| AWG | 23 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 0.56/0.57 |
| maximum DC Resistant@20°C | Ω/100m | 9.38 |
| maximum DCR Unbalance | % | 3 |
| maximum mutual Capacitance | pF/m | 5.8 |
| maximum Capacitance Unbalance | pF/100m | 30 |
| Characteristic Impedance@1-100mHz | Ω | 100+/-15 |
| maximum Propagation Delay Skew | ns/100m | 18 |
Transmission Properties
| FREQ mHz |
maximum Attenuation dB/100m |
minimum NEXT dB |
minimum PSNEXT dB |
minimum ELFEXT dB/100m |
minimum PSELFEXT dB/100m |
minimum RL dB |
|---|---|---|---|---|---|---|
| 0.772 | 1.8 | 76.0 | 74. | 70.0 | 67.0 | — |
| 1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 63.3 | 55.7 | 52.7 | 23.0 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 52.8 | 41.7 | 38.7 | 25.0 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.8 | 21.5 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 155 | 25.2 | 41.5 | 39.5 | 23.9 | 20.9 | 18.8 |
| 200 | 29.0 | 39.8 | 37.8 | 21.7 | 18.7 | 18.0 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |

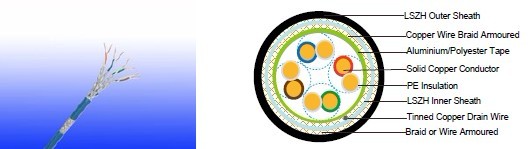

Cat6 SF/UTP
Construction Parameters
| Cable Code | Construction No. of elements×No. of cores in element×Conductor diameter |
Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Nominal Outer Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg/km | |
| caT6 U/UTP cWb | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 7.88 | 115 |
| caT6 U/UTP sWb | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 7.88 | 109 |
| caT6 U/UTP sWa | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.88 | 189 |
| caT6 f/UTP cWb | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 8.48 | 126 |
| caT6 f/UTP sWb | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 8.48 | 132 |
| caT6 f/UTP sWa | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 9.48 | 213 |
| caT6 sf/UTP cWb | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 8.96 | 154 |
| caT6 sf/UTP sWb | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 8.96 | 148 |
| caT6 sf/UTP sWa | 4×2×0.58 | 0.2 | 0.6 | 1.0 | 9.96 | 242 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
