Firetox Flame Retardant Cables
LSZH Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables
FTX-CAT5EU/UTP4P24LH CWB/SWB/SWA
FTX-CAT5EF/UTP4P24LH CWB/SWB/SWA
FTX-CAT5ESF/UTP4P24LH CWB/SWB/SWA
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data
installations up to 100 MHz. In addition,LSZH Flame Retardant CAT5E CWB/SWB/SWA Armoured Data
Cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional
mechanically protection still maintaining the flexibility of the cable.
STANDARDS
ISO/IEC 11801 EN 50173 ANSI/TIA/EIA 568
FIRE PERFORMANCE
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
|---|---|
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

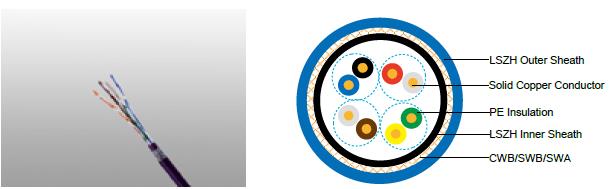

CABLE CONSTRUCTION
Conductors : 24AWG solid bare copper.
Insulation : PE.
Twinning : Two coloured insulated conductors twisted together to form a pair.
Inner Sheath : Thermoplastic LSZH compound.
Armouring :
CWB : Copper Wire Braid
SWB : Steel Wire Braid
SWA : Steel Wire Armour
Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound
type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.

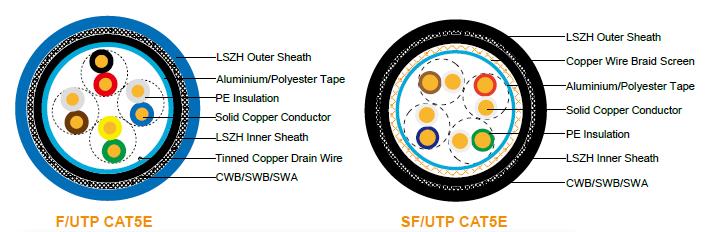

Cat5EF/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat5ESF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.
PHYSICAL AND THERMAL PROPERTIES
Temperature range : -30°C - +75°C
Minimum bending radius during installation (mobile state) : 8 x Overall Diameter
Minimum bending radius during operation (fixed state) : 4 x Overall Diameter
ELECTRICAL PROPERTIES
| AWG |
|
24 |
|---|---|---|
Nominal Conductor Diameter |
mm |
0.50/0.51/0.53 |
Maximum DC Resistance@20°C |
Ω/100m |
9.38 |
Maximum DCR Unbalance |
% |
5 |
Maximum Mutual Capacitance |
pF/m |
55.8 |
Maximum Capacitance Unbalance |
pF/100m |
330 |
Characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay Skew |
ns/100m |
45 |
TRANSMISSION PROPERTIES
| FREQ | Attenuation |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
RL |
|---|---|---|---|---|---|---|
MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
CONSTRUCTION PARAMETERS
| Cable Code | Construction No. of Elements×No. of Cores in Element×Conductor Diameter |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Nominal Outer Sheath Thickness |
Aprrox. Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|---|
mm |
mm |
mm |
mm |
mm |
kg/km |
|
FTX-CAT5EU/UTP4P24LH CWB |
4×2×0.5 |
0.2 |
0.6 |
1.0 |
7.68 |
102 |
FTX-CAT5EU/UTP4P24LH SWB |
4×2×0.5 |
0.2 |
0.6 |
1.0 |
7.68 |
98 |
FTX-CAT5EU/UTP4P24LH SWA |
4×2×0.5 |
0.2 |
0.6 |
1.0 |
8.68 |
170 |
FTX-CAT5EF/UTP4P24LH CWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.28 |
121 |
FTX-CAT5EF/UTP4P24LH SWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.28 |
117 |
FTX-CAT5EF/UTP4P24LH SWA |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
9.28 |
197 |
FTX-CAT5ESF/UTP4P24LH CWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.76 |
128 |
FTX-CAT5ESF/UTP4P24LH SWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.76 |
124 |
FTX-CAT5ESF/UTP4P24LH SWA |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
9.76 |
221 |
