FIREGUARD Flame Retardant Cables

Flame Retardant Instrumentation Cables

Flame Retardant Individual and Overall Screened Instrumentation Cables (Multipair)

RE-2X(St)Y PiMF



APPLICATION

The unarmoured PVC versions (Part 1 Type 1) are generally use for indoor installation and suitable for wet and

damp areas. Generally used within industrial process manufacturing plants for communication, data and voice

transmission signals and services.

STANDARDS

Basic design adapted to BS 5308 Part1 Type 1

BS 5308 Part1 Type 1

FIRE PERFORMANCE

Flame Retardance

(Single Vertical

Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE

0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-

1*; DIN VDE 0482-265-2-1*

Reduced Fire

Propagation

(Vertically-mounted

bundled wires

& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-

004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-

4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

VOLTAGE RATING

300/500V

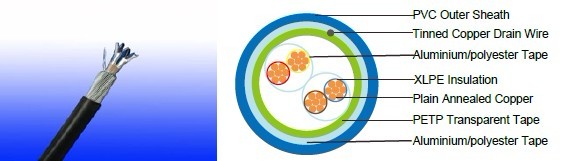

CABLE CONSTRUCTION

Conductor: Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm²

solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360

Insulation: XLPE (Cross Linked Polyethylene), or PE (optional)

Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm

Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned

copper drain wire, 0.5mm²

Binder tape: PETP transparent tape

Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with

tinned copper drain wire, 0.5mm²

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent

and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC

60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable

design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour: See technical information

Outer sheath: Black or blue

Physical AND THERMAL PROPERTIES

Maximum Operating temperature: -20˚C - + 90˚C( fixed installation)

                                                     0˚C - +50˚C(during operation)

Minimum bending radius: 5 x Overall Diameter

Electrical Properties

Conductor Area Size mm 2 0.5 0.5 0.75 1.0 1.5
Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
Insulation resistance min Gohm/km 5 5 5 5 5
Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
Max. Mutual Capacitance @ 1
kHz forNon OS or OS cables (except one-pair and two- pairs)
pF/m 115 115 115 115 115
Max. Mutual Capacitance @
1 kHz IS/OS cables (include 1 pair and 2 pair)
pF/m 75 75 75 75 75
Max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 25 25 40
Test voltage Core to core V 1000 1000 1000 1000 1000
Core to screen V 1000 1000 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500 300/500 300/500

CONSTRUCTION PARAMETERS

Number of Pairs No./
Nominal Diameter of Strands
Nominal Conductor Cross- Section Area Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
No./mm mm2 mm mm mm kg/km
2 1/0.8 0.5 0.5 0.9 9.7 95
5 1/0.8 0.5 0.5 1.2 13 180
10 1/0.8 0.5 0.5 1.2 16.9 310
15 1/0.8 0.5 0.5 1.3 19.7 440
20 1/0.8 0.5 0.5 1.3 22.3 560
30 1/0.8 0.5 0.5 1.5 27.1 820
50 1/0.8 0.5 0.5 2 35 1370
2 16/0.2 0.5 0.6 1.1 11.2 110
5 16/0.2 0.5 0.6 1.2 14.5 250
10 16/0.2 0.5 0.6 1.3 19.3 480
15 16/0.2 0.5 0.6 1.5 22.6 570
20 16/0.2 0.5 0.6 1.5 25.7 780
30 16/0.2 0.5 0.6 1.7 31 1020
50 16/0.2 0.5 0.6 2.2 39.9 1680
2 1/1.13 1 0.6 1.1 11.9 200
5 1/1.13 1 0.6 1.2 15.4 290
10 1/1.13 1 0.6 1.3 20.5 580
15 1/1.13 1 0.6 1.5 24.1 780
20 1/1.13 1 0.6 1.7 27.7 1010
30 1/1.13 1 0.6 2 33.7 1430
50 1/1.13 1 0.6 2.2 42.5 2360
2 7/0.53 1.5 0.6 1.2 13.6 250
5 7/0.53 1.5 0.6 1.3 17.7 460
10 7/0.53 1.5 0.6 1.5 23.9 760
15 7/0.53 1.5 0.6 1.7 28 1020
20 7/0.53 1.5 0.6 2 31.7 1350
30 7/0.53 1.5 0.6 2.2 38.6 1900
50 7/0.53 1.5 0.6 2.2 48.9 3060
