Fire Resistant Copper Braid Screened, Armoured Instrumentation Cables(Multipair)

RE-2X(C)HSWAH ... CI




APPLICATION

RE-2X(C)HSWAH ... CI The armoured LSZH sheathed cables are generally used when the risk of mechanical

damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are

used within industrial process manufacturing plants for communication, data and voice transmission signals and

services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce

toxic smoke and fume emission.

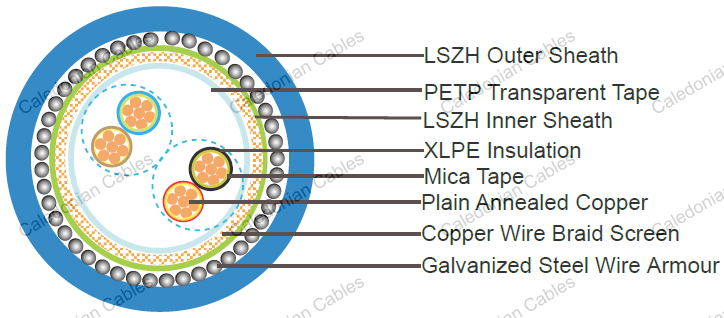

Cable Construction

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and

class 5.

Fire Barrier: Mica glass tape.

Insulation: Extruded XLPE compound according to EN 50290-2-29.

Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (s1.5mm) or

150mm (for 2.5mm).

Binder Tape: PETP transparent tape.

Overall Screen: Copper braid screen.

Inner Sheath: Thermoplastic LSZH compound.

Armouring: Galvanised steel wire.

Outer Sheath: Halogen free flame retardant compound to EN 50290-2-27.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

RE-2X(St)HSWAH PiMF...CI

Fire Performance



Circuit Integrity

IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)

Flame Retardance (Single vertical wire or cable test)

IEC 60332-1-2; EN 60332-1-2

Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)

IEC 60332-3-24; EN 60332-3-24

Halogen Free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2

Minimum Smoke Emission

IEC 61034-2; EN 61034-2

Voltage Rating

300, 500V

Colour code

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured

insulation or by a coloured surface using extrusion, printing or painting.

Outer Sheath: Black. Other colours can be offered upon request.

Physical and thermal properties

Temperature range during operation: -30°C - +90°C

Temperature range fixed installation: -5°C - +50°C

Maximum short circuit temperature (5 Seconds): 250°C

Minimum bending radius: 10 × Overall Diameter

Construction Parameters


Number of core/ Nominal cross section area of conductor

Number and diameter of wire

Thickness of insulation

Thickness of inner covering

Diameter of armour wire

Thickness of outer sheath

Reference overall diameter

Conductor resistance

mm²

n×mm

mm

mm

mm

mm

mm

Ω/km

1x2x0.5

7×0.31

0.6

0.9

0.9

1.3

12.6

36.0

2x2x0.5

7×0.31

0.6

1

0.9

1.4

16.9

36.0

3x2x0.5

7×0.31

0.6

1

0.9

          1.4

17.7

36.0

4x2x0.5

7×0.31

0.6

1.1

0.9

1.5

19.4

36.0

5x2x0.5

7×0.31

0.6

1.1

1.25

1.5

21.6

36.0

8x2x0.5

7×0.31

0.6

1.2

1.25

1.5

24.8

36.0

10x2x0.5

7×0.31

0.6

1.2

1.25

1.6

28.6

36.0

12x2x0.5

7×0.31

0.6

1.3

1.25

1.6

29.6

36.0

16x2x0.5

7×0.31

0.6

1.4

1.6

1.7

32.7

36.0

20x2x0.5

7×0.31

0.6

1.4

1.6

1.7

35

36.0

25x2x0.5

7×0.31

0.6

1.8

1.6

2.1

40.3

36.0

1x2x0.75

7×0.37

0.6

0.9

0.9

1.3

12.9

24.5

2x2x0.75

7×0.37

0.6

1

0.9

1.4

17.5

24.5

3x2x0.75

7×0.37

0.6

1.1

0.9

1.5

18.8

24.5

4x2x0.75

7×0.37

0.6

1.1

1.25

1.5

20.8

24.5

5x2x0.75

7×0.37

0.6

1.2

1.25

1.5

22.6

24.5

8x2x0.75

7×0.37

0.6

1.2

1.25

1.6

26

24.5

10x2x0.75

7×0.37

0.6

1.3

1.25

1.6

30

24.5

12x2x0.75

7×0.37

0.6

1.3

1.6

1.7

31

24.5

16x2x0.75

7×0.37

0.6

1.4

1.6

1.7

34.1

24.5

20x2x0.75

7×0.37

0.6

1.5

1.6

1.8

37.6

24.5

25x2x0.75

7×0.37

0.6

1.8

1.6

2.2

42.3

24.5

1x2x1.0

7×0.44

0.6

0.9

0.9

1.3

13.4

18.1

2x2x1.0

7×0.44

0.6

1

0.9

1.4

18.2

18.1

3x2x1.0

7×0.44

0.6

1.1

0.9

1.5

19.5

18.1

4x2x1.0

7×0.44

0.6

1.1

1.25

1.5

21.7

18.1

5x2x1.0

7×0.44

0.6

1.2

1.25

1.6

23.7

18.1

8x2x1.0

7×0.44

0.6

1.2

1.25

1.6

27.1

18.1

10x2x1.0

7×0.44

0.6

1.3

1.6

1.7

31.5

18.1

12x2x1.0

7×0.44

0.6

1.4

1.6

1.7

32.6

18.1

16x2x1.0

7×0.44

0.6

1.5

1.6

1.8

36.8

18.1

20x2x1.0

7×0.44

0.6

1.5

1.6

1.8

39.4

18.1

25x2x1.0

7×0.44

0.6

1.9

2

2.3

45.6

18.1

1x2x1.5

7×0.53

0.6

0.9

0.9

1.3

14.1

12.1

2x2x1.5

7×0.53

0.6

1.1

0.9

1.5

19.5

12.1

3x2x1.5

7×0.53

0.6

1.2

1.25

1.5

21.3

12.1

4x2x1.5

7×0.53

0.6

1.2

1.25

1.6

23.1

12.1

5x2x1.5

7×0.53

0.6

1.3

1.25

1.6

25.1

12.1

8x2x1.5

7×0.53

0.6

1.3

1.25

1.7

29

12.1

10x2x1.5

7×0.53

0.6

1.4

1.6

1.8

34

12.1

12x2x1.5

7×0.53

0.6

1.5

1.6

1.8

35.5

12.1

16x2x1.5

7×0.53

0.6

1.6

1.6

1.9

39.3

12.1

20x2x1.5

7×0.53

0.6

1.7

1.6

2

42.5

12.1

25x2x1.5

7×0.53

0.6

2

2

2.3

48.7

12.1

1x2x2.5

7×0.67

0.7

1

0.9

1.4

15.5

7.41

2x2x2.5

7×0.67

0.7

1.2

1.25

1.5

22.4

7.41

3x2x2.5

7×0.67

0.7

1.2

1.25

1.6

23.7

7.41

4x2x2.5

7×0.67

0.7

1.3

1.25

1.6

25.8

7.41

5x2x2.5

7×0.67

0.7

1.4

1.25

1.7

28.3

7.41

8x2x2.5

7×0.67

0.7

1.4

1.6

1.7

32.6

7.41

10x2x2.5

7×0.67

0.7

1.6

1.6

1.9

39.1

7.41

12x2x2.5

7×0.67

0.7

1.6

1.6

1.9

40.2

7.41

16x2x2.5

7×0.67

0.7

1.7

2

2

44.5

7.41

20x2x2.5

7×0.67

0.7

1.9

2

2.1

48.3

7.41

25x2x2.5

7×0.67

0.7

2.3

2.5

2.6

57

7.41





Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
