Fire Resisting Cables
Fire Resistant RS 485 Databus Cables
APPLICATION
Fire Resistant RS 485 Databus Cables are designed for RS 485 data connections where continued functionality
is required during a fire situation. This cable combines low capacitance insulation with one of the highest levels
of screening to provide high speed, interference free, data transmission where continued functionality is
required during a fire situation.
STANDARDS
Basic design adapted to EIA/TIA 485
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-23; BS 6387 CWZ (Optional) |
|---|---|
Flame Retardance (Single Vertical Wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

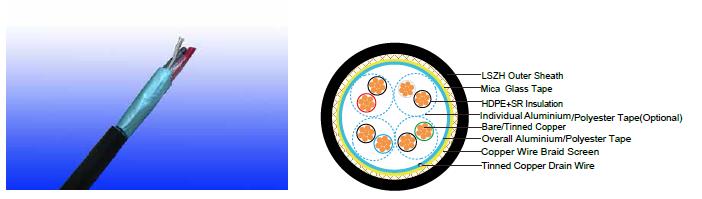

CABLE CONSTRUCTION
MULTIPAIR RS 485 OVERALL SCREENED DATABUS CABLE
Conductor ：Tinned copper wire, stranded according to IEC 60228 class 2.
Insulation：Foam PE or foam skin PE+SR.
Cabling Elements：Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk.
Two pair cable had four cores laid in quad formation.
Cabling：Pairs are cabled together in concentric layers.
Overall Fire Barrier：Mica glass tape.
Overall Screen：Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath:Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
(Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option:UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
MULTIPAIR RS 485 OVERALL DOUBLE SCREENED DATABUS CABLE
Conductor :Tinned copper wire, stranded according to IEC 60228 class 2.
Insulation:Foam PE or foam skin PE.
Cabling Elements:Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two
pair cable had four cores laid in quad formation.
Cabling:Pairs are cabled together in concentric layers.
Overall Fire Barrier:Mica glass tape.
Overall Screen:Aluminium/polyester tape+copper wire braid.
Outer Sheath:Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type
SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option:UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
MULTIPAIR RS 485 INDIVIDUAL & OVERALL SCREENED DATABUS CABLE
Conductor:Tinned copper wire, stranded according to IEC 60228 class 2.
Insulation:Foam PE or foam skin PE.
Cabling Elements:Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two
pair cable had four cores laid in quad formation.
Cabling:Pairs are cabled together in concentric layers.
Individual Screen:Individual aluminium/polyester tape.
Overall Fire Barrier:Mica glass tape.
Overall Screen:Copper wire braid.
Outer Sheath:Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type
SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option:UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
MULTIPAIR RS 485 OVERALL SCREENED DATABUS CABLE
Conductor :Tinned copper wire, stranded according to IEC 60228 class 2.
Insulation:Foam PE or foam skin PE.
Cabling Elements:Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two
pair cable had four cores laid in quad formation.
Cabling:Pairs are cabled together in concentric layers.
Overall Fire Barrier:Mica glass tape.
Overall Screen:Copper wire braid.
Outer Sheath:Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type
SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option:UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) | -20°C - +90°C |
|---|---|
Temperature range during installation (mobile state) |
-5°C - +60°C |
Minimum bending radius |
8 x Overall Diameter |
ELECTRICAL PROPERTIES
| Dielectric test | 1000 V r.m.s. for 5’ (core-core) |
|---|---|
|
1000 V r.m.s. for 5’ (core-screen) |
Impedance |
120Ω |
Capacitance |
45 nF/km conductor to conductor |
|
90 nF/km conductor to shield |
CONSTRUCTION PARAMETERS
Multipair RS 485 Overall Screened Databus Cable
RE-m02Y(St)H-FR/ RE-m02YS(St)H-FR
| No.of Pair | Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx.Weight |
|---|---|---|---|---|---|---|
No. |
mm² |
no/mm |
mm |
mm |
mm |
kg/km |
1 |
0.22 |
7/0.2 |
1.2 |
1.1 |
6.6 |
73 |
2 |
0.22 |
7/0.2 |
1.2 |
1.1 |
10.9 |
136 |
4 |
0.22 |
7/0.2 |
1.2 |
1.1 |
12.6 |
214 |
1 |
0.50 |
16/0.2 |
1.2 |
1.1 |
7.2 |
88 |
2 |
0.50 |
16/0.2 |
1.2 |
1.1 |
12.0 |
165 |
4 |
0.50 |
16/0.2 |
1.2 |
1.1 |
14.0 |
266 |
1 |
0.75 |
24/0.2 |
1.2 |
1.1 |
7.6 |
100 |
2 |
0.75 |
24/0.2 |
1.2 |
1.1 |
12.8 |
189 |
4 |
0.75 |
24/0.2 |
1.2 |
1.1 |
15.0 |
309 |
1 |
1.00 |
32/0.2 |
1.2 |
1.1 |
7.8 |
106 |
2 |
1.00 |
32/0.2 |
1.2 |
1.1 |
13.1 |
199 |
4 |
1.00 |
32/0.2 |
1.2 |
1.1 |
15.3 |
328 |
Multipair RS 485 Overall Double Screened Databus Cable
RE-m02Y(St)CH-FR / RE-m02YS(St)CH-FR
| No.of Pair | Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx.Weight |
|---|---|---|---|---|---|---|
No. |
mm² |
no/mm |
mm |
mm |
mm |
kg/km |
1 |
0.22 |
7/0.2 |
1.2 |
1.1 |
7.1 |
91 |
2 |
0.22 |
7/0.2 |
1.2 |
1.1 |
11.4 |
168 |
4 |
0.22 |
7/0.2 |
1.2 |
1.1 |
13.1 |
252 |
1 |
0.50 |
16/0.2 |
1.2 |
1.1 |
7.7 |
108 |
2 |
0.50 |
16/0.2 |
1.2 |
1.1 |
12.5 |
201 |
4 |
0.50 |
16/0.2 |
1.2 |
1.1 |
14.5 |
308 |
1 |
0.75 |
24/0.2 |
1.2 |
1.1 |
8.1 |
121 |
2 |
0.75 |
24/0.2 |
1.2 |
1.1 |
13.3 |
228 |
4 |
0.75 |
24/0.2 |
1.2 |
1.1 |
15.5 |
355 |
1 |
1.00 |
32/0.2 |
1.2 |
1.1 |
8.8 |
128 |
2 |
1.00 |
32/0.2 |
1.2 |
1.1 |
13.6 |
238 |
4 |
1.00 |
32/0.2 |
1.2 |
1.1 |
15.8 |
375 |
Multipair RS 485 Individual & Overall screened Databus Cable
RE-m02Y(St)CH PiMF-FR / RE-m02YS(St)CH-FR PiMF-FR
| No.of Pair | Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx.Weight |
|---|---|---|---|---|---|---|
No. |
mm² |
no/mm |
mm |
mm |
mm |
kg/km |
1 |
0.22 |
7/0.2 |
1.2 |
1.1 |
7.4 |
94 |
2 |
0.22 |
7/0.2 |
1.2 |
1.1 |
12.1 |
176 |
4 |
0.22 |
7/0.2 |
1.2 |
1.1 |
14.0 |
266 |
1 |
0.50 |
16/0.2 |
1.2 |
1.1 |
8.0 |
111 |
2 |
0.50 |
16/0.2 |
1.2 |
1.1 |
13.3 |
210 |
4 |
0.50 |
16/0.2 |
1.2 |
1.1 |
15.5 |
325 |
1 |
0.75 |
24/0.2 |
1.2 |
1.1 |
8.4 |
125 |
2 |
0.75 |
24/0.2 |
1.2 |
1.1 |
14.2 |
237 |
4 |
0.75 |
24/0.2 |
1.2 |
1.1 |
16.6 |
372 |
1 |
1.00 |
32/0.2 |
1.2 |
1.1 |
8.6 |
131 |
2 |
1.00 |
32/0.2 |
1.2 |
1.1 |
14.5 |
248 |
4 |
1.00 |
32/0.2 |
1.2 |
1.1 |
17.0 |
393 |
Multipair RS 485 Overall Screened Databus Cable
RE-m02YCH-FR / RE-m02YSCH-FR
| No.of Pair | Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx.Weight |
|---|---|---|---|---|---|---|
No. |
mm² |
no/mm |
mm |
mm |
mm |
kg/km |
1 |
0.22 |
7/0.2 |
1.2 |
1.1 |
6.9 |
86 |
2 |
0.22 |
7/0.2 |
1.2 |
1.1 |
11.2 |
160 |
4 |
0.22 |
7/0.2 |
1.2 |
1.1 |
13.0 |
243 |
1 |
0.50 |
16/0.2 |
1.2 |
1.1 |
7.5 |
123 |
2 |
0.50 |
16/0.2 |
1.2 |
1.1 |
12.3 |
193 |
4 |
0.50 |
16/0.2 |
1.2 |
1.1 |
14.3 |
299 |
1 |
0.75 |
24/0.2 |
1.2 |
1.1 |
7.9 |
116 |
2 |
0.75 |
24/0.2 |
1.2 |
1.1 |
13.1 |
219 |
4 |
0.75 |
24/0.2 |
1.2 |
1.1 |
15.3 |
344 |
1 |
1.00 |
32/0.2 |
1.2 |
1.1 |
8.0 |
122 |
2 |
1.00 |
32/0.2 |
1.2 |
1.1 |
13.4 |
229 |
4 |
1.00 |
32/0.2 |
1.2 |
1.1 |
15.6 |
364 |
