Fire Resisting Cables
Fire Resistant CAT6 Data Cables
FFX-CAT6U/UTP4P23FR
FFX-CAT6F/UTP4P23FR
FFX-CAT6SF/UTP4P23FR
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, Fire Resistant CAT6 Data Cables can be
offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically
protection still maintaining the flexibility of the cable.
STANDARDS
Basic design adapted to EN 50173
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-23; BS 6387 CWZ (Optional) |
|---|---|
Flame Retardance (Single Vertical Wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

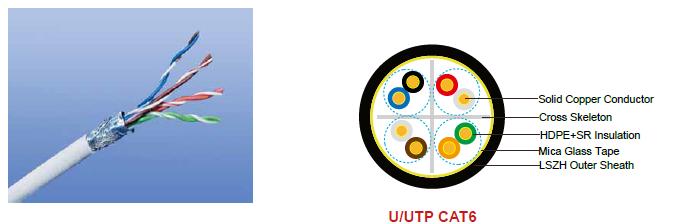

CABLE CONSTRUCTION
| Conductor | 23AWG solid bare copper. |
|---|---|
Insulation |
HDPE+SR. |
Twinning |
Two coloured insulated conductors twisted together to form a pair. |
Overall Fire Barrier |
Mica glass tape. |
Outer Sheath |
Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered). |
Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. |

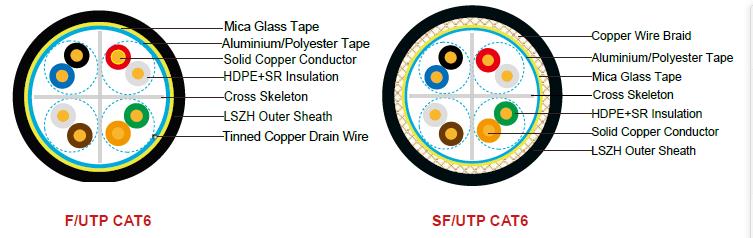

Cat6F/UTP |
These cables have collective shielding of Aluminium/polyester tape with drain wire. |
Cat6SF/UTP |
These cables have double collective shielding of Aluminium/polyester tape & copper wire braid with drain wire. |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range | -30°C - +75°C |
|---|---|
Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
| AWG |
|
23 |
|---|---|---|
Nominal Conductor Diameter |
mm |
0.56/0.57/0.58 |
Maximum DC Resistance@20°C |
Ω/100m |
9.38 |
Maximum DCR Unbalance |
% |
5 |
Maximum Mutual Capacitance |
pf/m |
5.6 |
Maximum Capacitance Unbalance |
pf/100m |
330 |
Characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay Skew |
ns/100m |
44 |
TRANSMISSION PROPERTIES
FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
Minimum RL |
|---|---|---|---|---|---|---|
MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
CONSTRUCTION PARAMETERS
Cable Code |
Conductor Diameter |
Diameter Over Insulation |
Pairs |
Screen |
Approx. Overall Diameter |
|---|---|---|---|---|---|
|
mm |
mm |
|
|
mm |
CAT6U/UTP4P23FR |
0.56/0.57 |
1.77 |
4 |
Nil |
8.9 |
CAT6F/UTP4P23FR |
0.57/0.58 |
1.77 |
4 |
Overall Aluminum Tape Screen |
9.3 |
CAT6SF/UTP4P23FR |
0.57/0.58 |
1.77 |
4 |
Overall Aluminum Tape Screen& Copper Wire Braid |
9.6 |
