Fire Resistant CAT5E CWB/SWB/SWA Armoured Data Cables

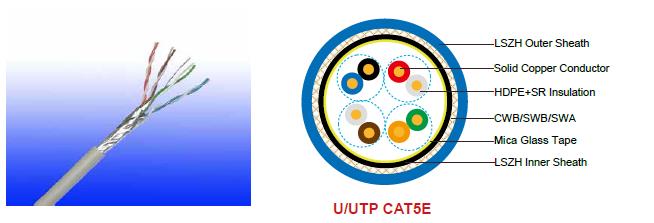

FFX-CAT5EU/UTP4P24FR CWB/SWB/SWA
FFX-CAT5EF/UTP4P24FR CWB/SWB/SWA
FFX-CAT5ESF/UTP4P24FR CWB/SWB/SWA
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data
installations up to 100 MHz. In addition,Fire Resistant CAT5E CWB/SWB/SWA Armoured Data Cables can be
offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically
protection still maintaining the flexibility of the cable.
STANDARDS
Basic design adapted to EN 50173
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-23; BS 6387 CWZ (Optional) |
|---|---|
Flame Retardance (Single Vertical Wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |
CABLE CONSTRUCTION
Conductor |
24AWG solid bare copper. |
|---|---|
Insulation |
HDPE+SR. |
Twinning |
Two coloured insulated conductors twisted together to form a pair. |
Overall Fire Barrier |
Mica glass tape. |
Inner Sheath |
Thermoplastic LSZH compound. |
Armouring: |
CWB: Copper Wire Braid |
Outer Sheath |
Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered). |
Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. |

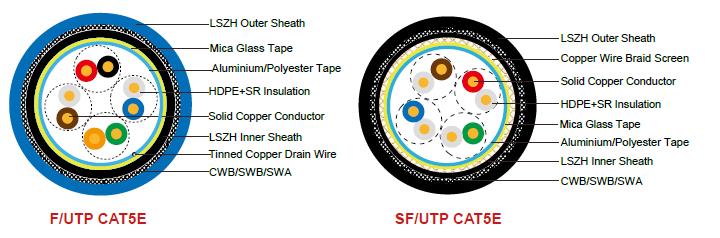

Cat5EF/UTP |
These cables have collective shielding of Aluminium/polyester tape with drain wire. |
Cat5ESF/UTP |
These cables have double collective shielding of Aluminium/polyester tape & copper wire braid. |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range | -30°C - +75°C |
|---|---|
Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
AWG |
|
24 |
|---|---|---|
Nominal Conductor Diameter |
mm |
0.50/0.53 |
Maximum DC Resistance@20°C |
Ω/100m |
9.38 |
Maximum DCR Unbalance |
% |
5 |
Maximum Mutual Capacitance |
pf/m |
55.8 |
Maximum Capacitance Unbalance |
pf/100m |
330 |
Characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay Skew |
ns/100m |
45 |
TRANSMISSION PROPERTIES
FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
Minimum RL |
|---|---|---|---|---|---|---|
MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
CONSTRUCTION PARAMETERS
Cable Code |
Construction No. of Elements×No. of Cores in Element ×Conductor Diameter |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Nominal Outer Sheath Thickness |
Approx. Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|---|
|
mm |
mm |
mm |
mm |
mm |
kg/km |
FFX-CAT5EU/UTP4P24FR CWB |
4×2×0.5 |
0.65 |
0.6 |
1.0 |
10.68 |
121 |
FFX-CAT5EU/UTP4P24FR SWB |
4×2×0.5 |
0.65 |
0.6 |
1.0 |
10.68 |
116 |
FFX-CAT5EU/UTP4P24FR SWA |
4×2×0.5 |
0.65 |
0.6 |
1.0 |
11.68 |
189 |
FFX-CAT5EF/UTP4P24FR CWB |
4×2×0.53 |
0.65 |
0.6 |
1.0 |
11.28 |
140 |
FFX-CAT5EF/UTP4P24FR SWB |
4×2×0.53 |
0.65 |
0.6 |
1.0 |
11.28 |
136 |
FFX-CAT5EF/UTP4P24FR SWA |
4×2×0.53 |
0.65 |
0.6 |
1.0 |
12.28 |
216 |
FFX-CAT5ESF/UTP4P24FR CWB |
4×2×0.53 |
0.65 |
0.6 |
1.0 |
11.76 |
147 |
FFX-CA T5ESF/UTP4P24FR SWB |
4×2×0.53 |
0.65 |
0.6 |
1.0 |
11.76 |
143 |
FFX-CAT5ESF/UTP4P24FR SWA |
4×2×0.53 |
0.65 |
0.6 |
1.0 |
12.76 |
240 |
