450/750V Mica+XLPE Insulated, LSZH Sheathed Power Cables to BS 7211 (2-5 Cores)
FFX200 07mRZ1-U/R (CU/MGT+XLPE/LSZH 450/750V Class 1/2)
APPLICATION
450/750V Mica+XLPE Insulated, LSZH Sheathed Power Cables to BS 7211 (2-5 Cores) are mainly used in
power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals
and high-rise buildings.
STANDARDS
Basic design adapted from BS 7211:2012
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-21; BS 6387; BS 8491 |
|---|---|
Flame Retardance (Single vertical wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |
VOLTAGE RATING
450/750V

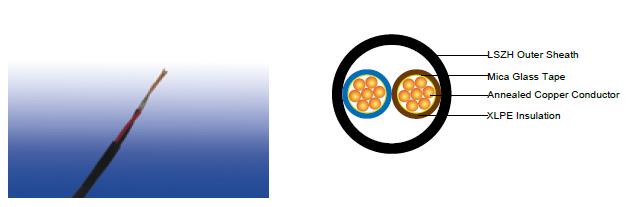

CABLE CONSTRUCTION
Conductor : Annealed copper conductor, solid or stranded according to BS EN 60228 class 1 or class 2.
Fire Barrier : Mica glass tape.
Insulation : XLPE type GP 8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN
50363-5 can be offered as option.
Inner Covering Option : The optional inner covering, where used, shall consist of an extruded layer of synthetic
polymeric material. It shall surround the laid-up two, three, four or five cores, giving the assembly a practically
circular shape.
Outer Sheath : Extruded LSZH type LTS 4 according to BS 7655-6.1.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
COLOUR CODE
Insulation Colour :
2-core : Brown and blue.
3-core : Brown, black and grey.
4-core : Blue, brown black and grey.
5-core : Green/yellow, blue, brown black and grey.
Sheath Colour : White; other colours can be offered upon request.
PHYSICAL AND THERMAL PROPERTIES
Maximum temperature range during operation : 90°C
Maximum short circuit temperature (5 Seconds) : 250°C
Minimum bending radius :
OD<8mm : 4 × Overall Diameter
8mm≤OD≤12mm : 5 × Overall Diameter
OD>12mm : 6 × Overall Diameter
CONSTRUCTION PARAMETERS
Conductor |
FFX200 07mRZ1-U/R |
||||||
|---|---|---|---|---|---|---|---|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Inner Covering Thickness |
Nominal Sheath Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
No.×mm² |
|
mm |
mm |
mm |
mm |
mm |
kg/km |
2×1.0 |
1 |
0.7 |
0.4 |
1.2 |
9.1 |
11.5 |
102 |
2×1.5 |
1 |
0.7 |
0.4 |
1.2 |
9.6 |
12.1 |
129 |
2×2.5 |
1 |
0.7 |
0.4 |
1.2 |
10.4 |
13.0 |
174 |
2×4 |
1 |
0.7 |
0.4 |
1.2 |
11.2 |
14.1 |
221 |
2×6 |
1 |
0.7 |
0.4 |
1.2 |
12.2 |
15.2 |
281 |
2×10 |
1 |
0.7 |
0.4 |
1.4 |
14.1 |
18.0 |
458 |
2×1.0 |
2 |
0.7 |
0.4 |
1.2 |
9.3 |
11.7 |
122 |
2×1.5 |
2 |
0.7 |
0.4 |
1.2 |
9.8 |
12.3 |
146 |
2×2.5 |
2 |
0.7 |
0.4 |
1.2 |
10.5 |
13.3 |
192 |
2×4 |
2 |
0.7 |
0.4 |
1.2 |
11.5 |
14.4 |
248 |
2×6 |
2 |
0.7 |
0.4 |
1.2 |
12.6 |
15.7 |
318 |
2×10 |
2 |
0.7 |
0.6 |
1.4 |
14.7 |
18.7 |
508 |
2×16 |
2 |
0.7 |
0.6 |
1.4 |
16.4 |
20.8 |
692 |
2×25 |
2 |
0.9 |
0.8 |
1.4 |
19.7 |
25.2 |
1063 |
2×35 |
2 |
0.9 |
0.8 |
1.6 |
22.0 |
28.0 |
1155 |
3×1.0 |
1 |
0.7 |
0.4 |
1.2 |
9.7 |
12.2 |
122 |
3×1.5 |
1 |
0.7 |
0.4 |
1.2 |
10.2 |
12.8 |
155 |
3×2.5 |
1 |
0.7 |
0.4 |
1.2 |
11.0 |
13.8 |
212 |
3×4 |
1 |
0.7 |
0.4 |
1.2 |
12.0 |
14.9 |
274 |
3×6 |
1 |
0.7 |
0.4 |
1.2 |
13.4 |
16.6 |
401 |
3×10 |
1 |
0.7 |
0.6 |
1.4 |
15.0 |
19.1 |
574 |
3×1.0 |
2 |
0.7 |
0.4 |
1.2 |
9.9 |
12.4 |
140 |
3×1.5 |
2 |
0.7 |
0.4 |
1.2 |
10.4 |
13.1 |
168 |
3×2.5 |
2 |
0.7 |
0.4 |
1.2 |
11.2 |
14.1 |
227 |
3×4 |
2 |
0.7 |
0.4 |
1.2 |
12.3 |
15.3 |
296 |
3×6 |
2 |
0.7 |
0.4 |
1.4 |
13.8 |
17.2 |
401 |
3×10 |
2 |
0.7 |
0.6 |
1.4 |
15.7 |
19.9 |
624 |
3×16 |
2 |
0.7 |
0.6 |
1.4 |
17.5 |
22.1 |
867 |
3×25 |
2 |
0.9 |
0.8 |
1.4 |
21.1 |
26.8 |
1338 |
3×35 |
2 |
0.9 |
0.8 |
1.6 |
23.5 |
29.8 |
1585 |
4×1.0 |
1 |
0.7 |
0.4 |
1.2 |
10.5 |
13.1 |
146 |
4×1.5 |
1 |
0.7 |
0.4 |
1.2 |
11.1 |
13.8 |
186 |
4×2.5 |
1 |
0.7 |
0.4 |
1.2 |
12.0 |
15.0 |
258 |
4×4 |
1 |
0.7 |
0.4 |
1.2 |
13.1 |
16.2 |
348 |
4×6 |
1 |
0.7 |
0.4 |
1.4 |
14.6 |
18.5 |
463 |
4×10 |
1 |
0.7 |
0.6 |
1.4 |
16.5 |
20.8 |
710 |
4×1.0 |
2 |
0.7 |
0.4 |
1.2 |
10.7 |
13.4 |
166 |
4×1.5 |
2 |
0.7 |
0.4 |
1.2 |
11.3 |
14.1 |
201 |
4×2.5 |
2 |
0.7 |
0.4 |
1.2 |
12.3 |
15.2 |
274 |
4×4 |
2 |
0.7 |
0.4 |
1.2 |
13.4 |
16.6 |
362 |
4×6 |
2 |
0.7 |
0.6 |
1.4 |
15.1 |
19.1 |
508 |
4×10 |
2 |
0.7 |
0.6 |
1.4 |
17.2 |
21.6 |
770 |
4×16 |
2 |
0.7 |
0.6 |
1.4 |
19.3 |
24.2 |
1078 |
4×25 |
2 |
0.9 |
0.8 |
1.6 |
23.6 |
29.9 |
1602 |
4×35 |
2 |
0.9 |
1.0 |
1.6 |
25.9 |
33.1 |
2076 |
5×1.0 |
1 |
0.7 |
0.4 |
1.2 |
11.5 |
14.2 |
177 |
5×1.5 |
1 |
0.7 |
0.4 |
1.2 |
12.1 |
15.0 |
228 |
5×2.5 |
1 |
0.7 |
0.4 |
1.2 |
13.2 |
16.3 |
318 |
5×4 |
1 |
0.7 |
0.4 |
1.4 |
14.7 |
18.6 |
445 |
5×6 |
1 |
0.7 |
0.6 |
1.4 |
16.0 |
20.2 |
574 |
5×10 |
1 |
0.7 |
0.6 |
1.4 |
18.1 |
22.7 |
887 |
5×1.0 |
2 |
0.7 |
0.4 |
1.2 |
11.7 |
14.6 |
203 |
5×1.5 |
2 |
0.7 |
0.4 |
1.2 |
12.4 |
15.3 |
247 |
5×2.5 |
2 |
0.7 |
0.4 |
1.2 |
13.4 |
16.6 |
340 |
5×4 |
2 |
0.7 |
0.6 |
1.4 |
15.1 |
19.1 |
483 |
5×6 |
2 |
0.7 |
0.6 |
1.4 |
16.5 |
20.8 |
633 |
5×10 |
2 |
0.7 |
0.6 |
1.4 |
18.9 |
23.6 |
968 |
5×16 |
2 |
0.7 |
0.8 |
1.4 |
21.2 |
26.9 |
1359 |
5×25 |
2 |
0.9 |
1.0 |
1.6 |
26.0 |
33.2 |
1899 |
5×35 |
2 |
0.9 |
1.0 |
1.6 |
28.6 |
36.3 |
2539 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
