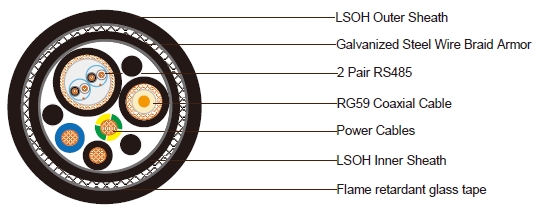

1xRG59 + 3x2.5 Power Cable + 2P24AWG RS485 Galvanized Steel Wire Braid Armor FRLSOH Sheathed

Composite Cable



RG59 Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor:0.58mm Solid copper conductor

Insulation:Polyethylene. Thickness 1.56mm

Shield:Bare copper wire braid. Coverage ≥ 85%,

Sheath:FRLSOH sheath. Nominal outer diameter is 6.2mm

Sheath Color:Black


2 Pair 24AWG RS485

Conductor:7/0.2mm stranded tinned copper

Insulation:Foam PE material. Thickness 0.6mm

Individual Shield:Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

Overall Shield:Tnned copper wire braiding, Coverage ≥ 85%

Sheath:FRLSOH sheath. Nominal outer diameter is 9.0mm

Sheath Color:Black


3x2.5mm² Power Cable

Conductor:2.5mm² 7/0.67mm stranded tinned copper wire

Insulation:XLPE. Thickness 0.7mm, Nominal outer diameter is 3.44mm

Insultion Color:Blue, Black and Green/Yellow


Element Assembly

Filler(optional):PP or PE

Wrapping:Flame retardant glass fibre tape

Inner Sheath:Black FRLSOH

Armor:0.2mm galvanized steel wire braid

Outer Sheath:LSOH with flame retardant glass tape inside

water resistant

oil resistant

sunlight and UV resistant

aliphatic hydrocarbon resistant

gas / vapour tight

shall burn without releasing any toxic gases.

Thickness 1.7mm. Nominal overall diameter 22.5+/-2mm

Sheath Color:Black or grey


Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Nominal Attenuation: 8.2dB/100m @50MHz


Nominal Impedance: 120±10Ω

Nominal Conductor DC Resistance @20°C: 82.0 Ohm/km

Nominal Attenuation: 1MHz 2.3dB/100m

Power Cable

Electrical Resistance: 7.56Ohm/km

Min Insulation Resistance: 1000 MOhm/km

Voltage rating: 0.6/1KV

Cable Assembly

Min Bending Radius: 420mm

Operating Temperature: -30°C/+80°C

Fire Performance

Low Smoke Capacity: IEC61034-1/2

Halogen Free: IEC60754-1/2

Flame Propagation: IEC60332

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
