H05VV5-F(NYSLYÖ-JZ)

Application and Description

These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened
termination and connection cable in the control, measuring and signal technology. The copper braiding
optimises protection against external interferences, like electromagnetic fields and stray frequencies.
Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working
processes.

Standard and Approval

<HAR> HD 21.13 S1, VDE-0281 Part-13, CEI 20-20/13, CEI 20-35 (EN60332-1) , CEI 20-52, UL 2464

Cable Construction

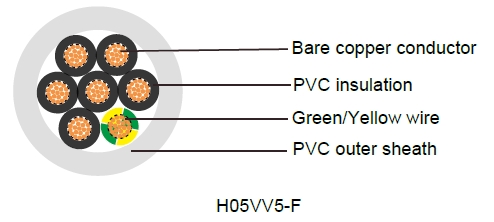

- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- PVC insulation T12 to DIN VDE 0281 part 1
- Green-yellow grounding (3 conductors and above)
- Cores to VDE-0293 colors
- PVC sheath TM5 to DIN VDE 0281 part 1

Technical Characteristics

- Working voltage: 300/500v
- Test voltage: 2000volts
- Flexing bending radius: 7.5 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -40º C to +70º C
- Short circuit Temperature: +150º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km



Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area # x mm²
Nominal Thickness of Insulation mm
Nominal Thickness of Sheath mm
Nominal Overall Diameter mm
Nominal Copper Weight kg/Km
Nominal Weight kg/Km
2x0.50
0.6
0.7
5.6
9.7
46
18(24/32)
2x0.75
0.6
0.8
6.2
14.4
52
17(32/32)
2x1
0.6
0.8
6.6
19.2
66
16(30/30)
2x1.5
0.7
0.8
7.6
29
77
14(30/50)
2x2.5
0.8
0.9
9.2
48
110
20(16/32)
3x0.50
0.6
0.7
5.9
14.4
54
18(24/32)
3x0.75
0.6
0.8
6.6
21.6
68
17(32/32)
3x1
0.6
0.8
7
29
78
16(30/30)
3x1.5
0.7
0.9
8.2
43
97
14(30/50)
3x2.5
0.8
1
10
72
154
20(16/32)
4x0.50
0.6
0.8
6.6
19
65
18(24/32)
4x0.75
0.6
0.8
7.2
28.8
82
17(32/32)
4x1
0.6
0.8
7.8
38.4
104
16(30/30)
4x1.5
0.7
0.9
9.3
58
128
14(30/50)
4x2.5
0.8
1.1
10.9
96
212
20(16/32)
5x0.50
0.6
0.8
7.3
24
80
18(24/32)
5x0.75
0.6
0.9
8
36
107
17(32/32)
5x1
0.6
0.9
8.6
48
123
16(30/30)
5x1.5
0.7
1
10.3
72
149
14(30/50)
5x2.5
0.8
1.1
12.1
120
242
6x0.50
0.6
0.9
8.1
28.8
104
18(24/32)
6x0.75
0.6
0.9
8.7
43.2
132
17(32/32)
6x1
0.6
1
9.5
58
152
16(30/30)
6x1.5
0.7
1.1
11.2
86
196
14(30/50)
6x2.5
0.8
1.2
13.2
20(16/32)
7x0.50
0.6
0.9
8.1
33.6
119
18(24/32)
7x0.75
0.6
1
8.9
50.5
145
17(32/32)
7x1
0.6
1
9.5
67
183
16(30/30)
7x1.5
0.7
1.2
11.4
101
216
14(30/50)
7x2.5
1.3
0.8
13.4
168
350
20(16/32)
12x0.50
0.6
1.1
10.9
58
186
18(24/32)
12x0.75
0.6
1.1
11.7
86
231
17(32/32)
12x1
0.6
1.2
12.8
115
269
16(30/30)
12x1.5
0.7
1.3
15
173
324
14(30/50)
12x2.5
1.5
0.8
17.9
288
543
20(16/32)
18x0.50
0.6
1.2
12.9
86
251
18(24/32)
18x0.75
0.6
1.3
14.1
130
313
17(32/32)
18x1
0.6
1.3
15.1
173
400
16(30/30)
18x1.5
0.7
1.5
18
259
485
14(30/50)
18x2.5
1.8
0.8
21.6
432
787
20(16/32)
25x0.50
0.6
1.4
15.4
120
349
18(24/32)
25x0.75
0.6
1.5
16.8
180
461
17(32/32)
25x1
0.6
1.5
18
240
546
16(30/30)
25x1.5
0.7
1.8
21.6
360
671
14(30/50)
25x2.5
0.8
2.1
25.8
600
1175
20(16/32)
36x0.50
0.6
1.5
17.7
172
510
18(24/32)
36x0.75
0.6
1.6
19.3
259
646
17(32/32)
36x1
0.6
1.7
20.9
346
775
16(30/30)
36x1.5
0.7
2
25
518
905
14(30/50)
36x2.5
0.8
2.3
29.8
864
1791
20(16/32)
50x0.50
0.6
1.7
21.5
240
658
18(24/32)
50x0.75
0.6
1.8
23.2
360
896
17(32/32)
50x1
0.6
1.9
24.5
480
1052
16(30/30)
50x1.5
0.7
2
28.9
720
1381
14(30/50)
50x2.5
0.8
2.3
35
600
1175
20(16/32)
61x0.50
0.6
1.8
23.1
293
780
18(24/32)
61x0.75
0.6
2
25.8
439
1030
17(32/32)
61x1
0.6
2.1
26
586
1265
16(30/30)
61x1.5
0.7
2.4
30.8
878
1640
14(30/50)
61x2.5
0.8
2.4
37.1
1464
2724
