FIREROL FRL-TW-05M-SW

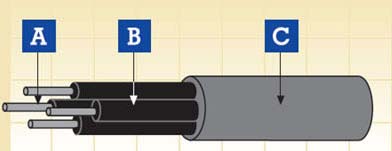

A.Conduttore B.Isolamento C.Guaina
Applicazione
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Edilizia
Conduttore
Tinned annealed copper wires as defined in EN 50306-2
Isolamento
LSZH special compound
Guaina esterna
LSZH special compound (S2. EM101- EM104)
Electrical & Mechanical Properties
| Nominal Voltage |
300/500 V |
| Maximum Conductor Temperature |
+120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature |
-25/-40 deg (fixed installation) |
| Bending Radius |
3 x Overall Diameter
(D<12mm); |
| |
4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-TW-05M-SW 300/500 V
NUMBER OF CORES AND NOMINAL CROSS SECTION |
MINIMUM THICKNESS OF SHEATH AT ANY POINT |
OVERALL DIAMETER |
WEIGHT |
(mm2) |
(mm) |
min. (mm) |
max. (mm) |
(kg/km) |
4 x 0.5 |
0.42 |
4.1 |
5.1 |
30 |
7 x 0.5 |
0.42 |
4.9 |
5.9 |
50 |
13 x 0.5 |
0.56 |
7.3 |
8.3 |
100 |
19 x 0.5 |
0.56 |
8.1 |
9.1 |
140 |
37 x 0.5 |
0.56 |
10.8 |
12.0 |
250 |
|
|
|
|
|
4 x 0.75 |
0.42 |
4.6 |
5.6 |
40 |
7 x 0.75 |
0.42 |
5.5 |
6.5 |
70 |
13 x 0.75 |
0.56 |
8.2 |
9.2 |
130 |
19 x 0.75 |
0.56 |
9.0 |
10.2 |
180 |
37 x 0.75 |
0.56 |
12.2 |
13.4 |
340 |
48 x 0.75 |
0.56 |
13.9 |
15.5 |
440 |
|
|
|
|
|
4 x 1.0 |
0.42 |
4.9 |
5.9 |
50 |
7 x 1.0 |
0.42 |
6.0 |
7.0 |
90 |
13 x 1.0 |
0.56 |
8.7 |
9.9 |
160 |
19 x 1.0 |
0.56 |
9.8 |
11.0 |
230 |
37 x 1.0 |
0.56 |
13.3 |
14.5 |
430 |
|
|
|
|
|
4 x 1.5 |
0.42 |
6.0 |
7.0 |
80 |
7 x 1.5 |
0.56 |
7.7 |
9.8 |
140 |
13 x 1.5 |
0.56 |
10.7 |
11.9 |
250 |
19 x 1.5 |
0.56 |
12.0 |
13.2 |
350 |
37 x 1.5 |
0.56 |
16.2 |
17.8 |
650 |
|
|
|
|
|
2 x 2.5 |
0.56 |
6.7 |
7.7 |
70 |
3 x 2.5 |
0.56 |
7.7 |
8.1 |
110 |
4 x 2.5 |
0.56 |
7.9 |
8.9 |
140 |
|
