P5 or P5/P12 BFOU 0.6/1KV

Applications :

  • These cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for control, power and lighting systems.

Standards :

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

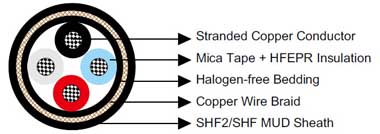

  Marine Cable Marine Cable



Construction :

  • Conductors : Tinned annealed stranded compacted copper to IEC 60228 class 2.
  • Insulation : Mica tape + Halogen free EPR.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P5). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P5/P12), coloured black.

Electrical Characteristics :

  • Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4 8.7
    Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391
    Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196
    Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167
    Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110 137
    Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  • Nominal Cross Section Area mm² 70 95 120 150 185 240 300 400 630
    Nominal Conductor Diameter mm 10.3 12.2 13.8 15.1 17.0 19.6 21.9 24.6 32.5
    Maximum DC Resistant@20℃ Ω/km 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0286
    Continuous Current Rating@45℃1 Core A 242 293 339 389 444 522 601 690 890
    Continuous Current Rating@45℃2 Core A 206 249 288 331 444 444 511 587 757
    Continuous Current Rating@45℃3&4 Core A 169 205 237 272 311 365 421 483 623
    Short Circuit Current 1s A 10020 13590 17170 21460 26470 34340 42930 57230 90140
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  • Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors :

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties :

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Sheath Thickness
mm
Nominal Overall Diameter mm Nominal Weight kg/km
Inner Outer
1×1.5 1.0 1.1 1.1 9.3 145
1×2.5 1.0 1.1 1.1 9.7 160
1×4 1.0 1.1 1.1 10.4 220
1×6 1.0 1.1 1.1 10.9 250
1×10 1.0 1.1 1.2 12.7 310
1×16 1.0 1.1 1.2 13.9 390
1×25 1.2 1.1 1.3 16.3 585
1×35 1.2 1.1 1.3 17.2 690
1×50 1.4 1.1 1.4 19.0 890
1×70 1.4 1.1 1.4 20.6 1110
1×95 1.6 1.1 1.5 23.1 1440
1×120 1.6 1.2 1.6 25.0 1735
1×150 1.8 1.2 1.7 27.0 2060
1×185 2.0 1.2 1.7 29.4 2545
1×240 2.2 1.2 1.8 32.6 3170
1×300 2.4 1.2 1.9 35.3 3910
1×400 2.4 1.4 2.1 41.0 5100
1×630 2.8 1.4 2.3 48.5 7660
2×1.5 1.0 1.1 1.2 14.2 310
2×2.5 1.0 1.1 1.3 15.1 360
2×4 1.0 1.1 1.3 16.6 470
2×6 1.0 1.1 1.4 17.9 555
2×10 1.0 1.1 1.4 19.9 705
2×16 1.0 1.1 1.5 22.5 985
2×25 1.2 1.2 1.6 26.4 1360
2×35 1.2 1.2 1.7 28.4 1620
2×50 1.4 1.2 1.9 32.4 2290
2×70 1.4 1.2 2.1 38.0 3260
2×95 1.6 1.2 2.3 41.6 3910
2×120 1.6 1.4 2.4 45.3 4710
2×150 1.8 1.4 2.6 49.7 5670
2×185 2.0 1.4 2.7 54.3 6840
2×240 2.2 1.6 3.0 61.5 8790
2×300 2.4 1.6 3.2 67.8 10630
3×1.5 1.0 1.1 1.3 14.8 345
3×2.5 1.0 1.1 1.3 16.2 445
3×4 1.0 1.1 1.3 17.4 530
3×6 1.0 1.1 1.4 18.7 635
3×10 1.0 1.1 1.5 21.1 830
3×16 1.0 1.1 1.5 23.7 1160
3×25 1.2 1.2 1.7 28.1 1640
3×35 1.2 1.2 1.8 30.2 1980
3×50 1.4 1.2 2.0 34.3 2750
3×70 1.4 1.2 2.2 39.0 3675
3×95 1.6 1.4 2.4 44.7 4955
3×120 1.6 1.4 2.5 48.3 6035
3×150 1.8 1.4 2.7 53.2 7355
3×185 2.0 1.6 2.9 59.5 9025
3×240 2.2 1.6 3.2 66.5 11590
3×300 2.4 1.8 3.4 72.6 13740
4×1.5 1.0 1.1 1.3 16.4 400
4×2.5 1.0 1.1 1.3 17.3 505
4×4 1.0 1.1 1.4 18.8 620
4×6 1.0 1.1 1.4 20.1 750
4×10 1.0 1.1 1.5 22.7 985
4×16 1.0 1.2 1.6 25.9 1400
4×25 1.2 1.2 1.8 30.7 1995
4×35 1.2 1.2 1.9 33.1 2440
4×50 1.4 1.4 2.0 38.2 3430
4×70 1.4 1.4 2.2 42.7 4600
4×95 1.6 1.6 2.4 49.4 6135
4×120 1.6 1.6 2.5 53.6 7515
4×150 1.8 1.6 2.9 59.0 9010
4×185 2.0 1.6 3.1 64.7 11000
4×240 2.2 1.8 3.4 73.1 14160
4×300 2.4 1.8 3.7 80.7 17550
5×1.5 1.0 1.1 1.4 17.7 510
6×1.5 1.0 1.1 1.4 19.0 545
7×1.5 1.0 1.1 1.4 19.0 590
8×1.5 1.0 1.1 1.5 21.8 715
9×1.5 1.0 1.1 1.6 23.3 720
10×1.5 1.0 1.1 1.6 23.6 790
12×1.5 1.0 1.2 1.6 24.3 880
14×1.5 1.0 1.2 1.7 25.5 965
16×1.5 1.0 1.2 1.7 26.7 1035
19×1.5 1.0 1.2 1.7 27.4 1185
20×1.5 1.0 1.2 1.8 29.5 1260
23×1.5 1.0 1.2 1.9 31.8 1435
24×1.5 1.0 1.2 2.0 33.2 1510
27×1.5 1.0 1.2 2.0 33.9 1615
30×1.5 1.0 1.2 2.0 34.9 1735
32×1.5 1.0 1.4 2.0 35.5 1800
33×1.5 1.0 1.4 2.0 36.7 1940
37×1.5 1.0 1.4 2.0 38.0 2090
44×1.5 1.0 1.4 2.3 42.6 2460
5×2.5 1.0 1.1 1.4 18.8 595
6×2.5 1.0 1.1 1.4 20.4 650
7×2.5 1.0 1.1 1.4 20.4 700
8×2.5 1.0 1.1 1.5 23.5 790
9×2.5 1.0 1.1 1.6 25.1 860
10×2.5 1.0 1.1 1.6 25.4 955
12×2.5 1.0 1.2 1.6 26.1 1045
14×2.5 1.0 1.2 1.7 27.3 1160
16×2.5 1.0 1.2 1.8 28.8 1265
19×2.5 1.0 1.2 1.8 29.6 1445
20×2.5 1.0 1.2 1.9 31.8 1545
23×2.5 1.0 1.4 2.0 34.7 1805
24×2.5 1.0 1.4 2.0 35.8 1850
27×2.5 1.0 1.4 2.0 35.4 1970
30×2.5 1.0 1.4 2.1 38.1 2235
33×2.5 1.0 1.4 2.2 39.6 2390
37×2.5 1.0 1.4 2.3 41.2 2610
44×2.5 1.0 1.4 2.4 46.2 3075
