Marine Cable

P17 BU 0.6/1 kV

Applications :

  • These cables are fire resistant, flame retardant, low smoke and halogen free, used for control, power and lighting systems.

Standards :

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

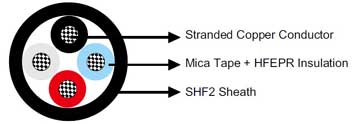

Construction :

  • Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
  • Insulation : Mica tape + Halogen free EPR.
  • Outer Sheath : Halogen free thermosetting compound, SHF2, coloured black.

Electrical Characteristics :

  • Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4
    Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529
    Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157
    Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133
    Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110
    Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  • Nominal Cross Section Area mm² 50 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20℃ Ω/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45℃1 Core A 196 242 293 339 389 444 522 601
    Continuous Current Rating@45℃2 Core A 167 206 249 288 331 444 444 511
    Continuous Current Rating@45℃3&4 Core A 137 169 205 237 272 311 365 421
    Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  • Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors :

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties :

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :



Construction No. of cores×Cross section (mm²) Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight kg/km
1×1.5 1.0 1.0 6.4 65
1×2.5 1.0 1.0 6.8 75
1×4 1.0 1.0 7.4 95
1×6 1.0 1.0 7.9 120
1×10 1.0 1.1 8.8 170
1×16 1.0 1.1 10.2 240
1×25 1.2 1.2 12.0 360
1×35 1.2 1.2 13.1 455
1×50 1.4 1.3 14.7 600
1×70 1.4 1.4 16.6 805
1×95 1.6 1.5 19.0 1095
1×120 1.6 1.5 20.6 1345
1×150 1.8 1.6 22.7 1635
1×185 2.0 1.7 25.2 2070
1×240 2.2 1.8 28.4 2655
1×300 2.4 1.9 31.1 3335
2×1.5 1.0 1.1 10.3 155
2×2.5 1.0 1.2 11.0 190
2×4 1.0 1.2 12.3 250
2×6 1.0 1.3 13.4 310
2×10 1.0 1.3 15.6 445
2×16 1.0 1.4 18.2 635
2×25 1.2 1.6 22.0 970
2×35 1.2 1.7 24.0 1215
2×50 1.4 1.8 27.4 1615
2×70 1.4 1.9 32.6 2335
2×95 1.6 2.1 37.6 3155
2×120 1.6 2.3 41.2 3875
2×150 1.8 2.4 45.4 4725
2×185 2.0 2.6 50.2 5845
2×240 2.2 2.8 56.8 7570
2×300 2.4 3.1 63.0 9395
3×1.5 1.0 1.2 10.9 180
3×2.5 1.0 1.2 11.9 230
3×4 1.0 1.2 13.1 295
3×6 1.0 1.3 14.2 375
3×10 1.0 1.4 16.5 550
3×16 1.0 1.5 19.3 795
3×25 1.2 1.6 23.5 1220
3×35 1.2 1.7 25.6 1545
3×50 1.4 1.9 29.5 2075
3×70 1.4 2.0 33.2 2775
3×95 1.6 2.2 38.5 3800
3×120 1.6 2.4 42.0 4685
3×150 1.8 2.5 46.3 5685
3×185 2.0 2.7 51.8 7215
3×240 2.2 3.0 58.0 9320
3×300 2.4 3.2 67.6 12280
4×1.5 1.0 1.2 12.1 225
4×2.5 1.0 1.2 13.0 275
4×4 1.0 1.3 14.5 365
4×6 1.0 1.4 15.8 490
4×10 1.0 1.4 18.4 695
4×16 1.0 1.5 21.5 1005
4×25 1.2 1.7 26.1 1550
4×35 1.2 1.8 28.5 1970
4×50 1.4 2.0 32.8 2645
4×70 1.4 2.2 36.9 3545
4×95 1.6 2.4 42.8 4850
4×120 1.6 2.6 46.5 5965
4×150 1.8 2.8 54.6 8020
4×185 2.0 3.0 60.3 9930
4×240 2.2 3.3 68.4 12920
4×300 2.4 3.5 75.5 15995
5×1.5 1.0 1.3 14.3 265
6×1.5 1.0 1.3 15.6 305
7×1.5 1.0 1.3 15.6 320
8×1.5 1.0 1.4 18.4 425
9×1.5 1.0 1.5 19.9 440
10×1.5 1.0 1.5 20.2 495
12×1.5 1.0 1.5 20.9 530
14×1.5 1.0 1.6 21.9 630
16×1.5 1.0 1.6 23.3 690
19×1.5 1.0 1.6 24.6 790
20×1.5 1.0 1.7 26.1 880
23×1.5 1.0 1.8 28.4 1030
24×1.5 1.0 1.8 29.2 1035
27×1.5 1.0 1.8 29.9 1080
30×1.5 1.0 1.9 31.1 1250
33×1.5 1.0 1.9 32.3 1335
37×1.5 1.0 2.0 33.8 1445
44×1.5 1.0 2.2 38.4 1765
5×2.5 1.0 1.3 14.5 340
6×2.5 1.0 1.4 17.0 395
7×2.5 1.0 1.4 17.0 420
8×2.5 1.0 1.5 20.0 535
9×2.5 1.0 1.5 21.5 560
10×2.5 1.0 1.5 21.8 620
12×2.5 1.0 1.6 22.7 680
14×2.5 1.0 1.6 23.9 810
16×2.5 1.0 1.7 25.4 895
19×2.5 1.0 1.7 26.8 1000
20×2.5 1.0 1.8 28.4 1140
23×2.5 1.0 1.9 30.9 1325
24×2.5 1.0 1.9 31.8 1340
27×2.5 1.0 1.9 32.5 1395
30×2.5 1.0 2.0 33.9 1620
33×2.5 1.0 2.0 35.2 1735
37×2.5 1.0 2.1 36.8 1865
44×2.5 1.0 2.3 41.8 2295
