EN 50306 Thin Wall Instrumentation & Control Cable

FIREROL FRL-TW-05M-ESW

300/500 V - multi - core with exposed Standard Wall sheath

EN 50306 Thin Wall Instrumentation & Control Cable

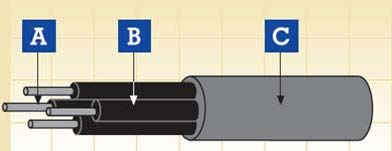

                                            A.Conductor          B.Insulation            C.Sheath

Aanvraag

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Bouw

Dirigent
Tinned annealed copper wires as defined in EN 50306-2

Isolatie
LSZH special compound

Outer sheath
LSZH special compound (S2. EM101- EM104)

Electrical & Mechanical Properties

Nominal Voltage 300/500 V
Maximum Conductor Temperature +120/+150 deg (fixed installation)
Minimum Permissible Ambient Temperature -25/-40 deg (fixed installation)
Bending Radius 3 x Overall Diameter (D<12mm);
  4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3C; Fire propagation of bunched wires and cables;
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
NFF 16101; NFF 63808; BS6853 Smoke index

FRL-TW-05M-ESW 300/500 V

Aantal kernen en de nominale dwarsdoorsnede

Minimale dikte van de sheath op elk punt

Algehele diameter

Gewicht

(mm2)

(mm)

min. (mm)

max. (mm)

(kg/km)

4 x 0.5

1.0

5.5

6.5

50

7 x 0.5

1.0

6.3

7.3

70

13 x 0.5

1.0

8.3

9.3

120

19 x 0.5

1.0

9.0

10.2

150

37 x 0.5

1.0

12.3

13.5

290











4 x 0.75

1.0

6.0

7.0

60

7 x 0.75

1.0

6.9

7.9

90

13 x 0.75

1.0

9.1

10.3

150

19 x 0.75

1.0

10.0

11.2

200

37 x 0.75

1.0

13.2

14.4

360

48 x 0.75

1.0

14.8

16.4

460











4 x 1.0

1.0

6.3

7.3

70

7 x 1.0

1.0

7.3

8.3

110

13 x 1.0

1.0

9.7

10.9

180

19 x 1.0

1.0

10.7

11.9

250

37 x 1.0

1.0

14.0

15.6

450











4 x 1.5

1.0

7.4

8.4

100

7 x 1.5

1.0

8.6

9.8

150

13 x 1.5

1.0

11.7

12.9

270

19 x 1.5

1.0

13.0

14.2

370

37 x 1.5

1.0

17.2

18.8

690











2 x 2.5

1.0

7.7

8.7

90

3 x 2.5

1.0

8.1

9.1

120

4 x 2.5

1.0

8.8

10.0

150
