Cat5E UTP/FTP Armoured Data Cable

Applications :

  • Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

Standards :

  • IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

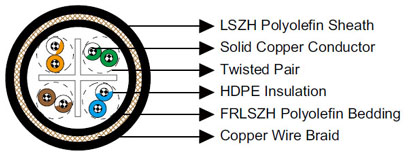

Construction :

  • Conductors : 23AWG solid bare copper.
  • Insulation : HDPE.
  • Twinning : Two coloured insulated conductors twisted together to form a pair.
  • Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
  • Armour : 0.2/0.3mm copper wire braid.
  • Outer Sheath : Low smoke and halogen-free polyolefin.

Optional :

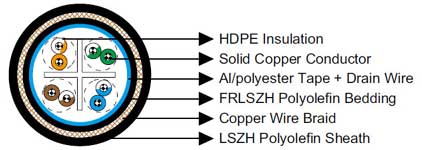

  • Cat6 F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.
  • Cat6 SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire.




Electrical Characteristics :

  • AWG   24
    Nominal Conductor Diameter mm 0.58
    Maximum DC Resistant@20℃ Ω/100m 9.38
    Maximum DCR Unbalance % 3
    Maximum Mutual Capacitance pF/m 5.8
    Maximum Capacitance Unbalance pF/100m 30
    Characteristic Impedance@1-100MHz Ω 100+/-15
    Maximum Propagation Delay Skew ns/100m 18
  • FREQ MHz Maximum Attenuation dB/100m Minimum NEXT dB Minimum PSNEXT dB Minimum ELFEXT dB/100m Minimum PSELFEXT dB/100m Minimum RL dB
    0.772 1.8 76.0 74.0 70.0 67.0
    1 2.0 74.3 72.3 67.8 64.8 20.0
    4 3.8 65.3 63.3 55.7 52.7 23.0
    8 5.3 60.8 58.8 49.7 46.7 24.5
    10 6.0 59.3 57.3 47.8 44.8 25.0
    16 7.6 56.3 54.3 43.7 40.7 25.0
    20 8.5 54.8 52.8 41.7 38.7 25.0
    25 9.5 53.3 51.3 39.8 36.8 24.3
    31.25 10.7 51.9 49.9 37.9 34.9 23.6
    62.5 15.4 47.4 45.4 31.8 28.8 21.5
    100 19.8 44.3 42.3 27.8 24.8 20.1
    155 25.2 41.5 39.5 23.9 20.9 18.8
    200 29.0 39.8 37.8 21.7 18.7 18.0
    250 32.8 38.3 36.3 19.8 16.8 17.3

Mechanical and Thermal Properties :

  • Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
  • Temperature Range : -30℃ ~ +75℃.

Dimensions and Weight :

Construction No. of elements×No. of cores in element×Conductor diameter
(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
4×2×0.58 0.2 1.2 11.5 214
