Mining Cable

Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath15kV

Applications

These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills

and for power feeders.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

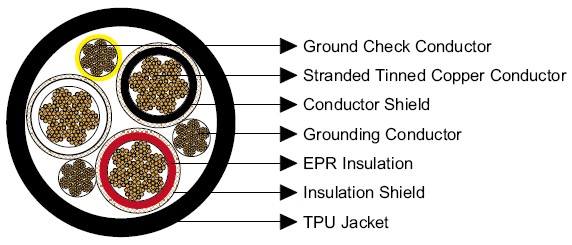

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Insulation Shield:Tinned copper/textile braid.

Ground Check Conductor:Tinned copper conductor with a yellow polypropylene insulation.

Grounding Conductor:Tinned copper conductor.

Sheath: Thermoplastic Polyurethane (TPU) Jacket, black. Other sheath materials can be offered as an option.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Sheath Thickness		Nominal Sheath Thickness		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×2	259	6	8	0.210	5.3	0.235	6.0	2.41	61.2	3145	4679	164
3×1	259	5	8	0.210	5.3	0.235	6.0	2.52	64.0	3567	5307	187
3×1/0	266	4	8	0.210	5.3	0.250	6.4	2.64	67.0	3976	5916	215
3×2/0	323	3	8	0.210	5.3	0.250	6.4	2.73	69.3	4526	6734	246
3×3/0	418	2	8	0.210	5.3	0.265	6.7	2.90	73.7	5231	7783	283
3×4/0	532	1	8	0.210	5.3	0.265	6.7	3.05	77.5	6033	8976	325

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
