Mining Cable

Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath 2kV



Applications

These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills

and for power feeders.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

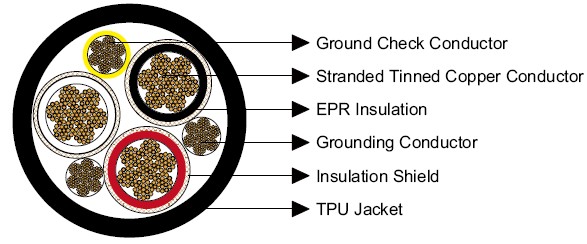

Construction

Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath 2kV

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Insulation Shield:Tinned copper/textile braid.

Ground Check Conductor:Tinned copper conductor with a yellow polypropylene insulation.

Grounding Conductor:Tinned copper conductor.

Sheath: Thermoplastic Polyurethane (TPU) Jacket, black. Other sheath materials can be offered as an option.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×6 133 10 10 0.07 1.8 0.155 3.9 1.29 32.8 1069 1590 93
3×4 259 8 10 0.07 1.8 0.155 3.9 1.40 35.6 1295 1927 122
3×2 259 6 10 0.07 1.8 0.170 4.3 1.59 40.4 1778 2645 159
3×1 259 5 8 0.08 2.0 0.190 4.8 1.76 44.7 2163 3218 184
3×1/0 266 4 8 0.08 2.0 0.190 4.8 1.86 47.2 2508 3731 211
3×2/0 323 3 8 0.08 2.0 0.205 5.2 2.00 50.8 3001 4465 243
3×3/0 418 2 8 0.08 2.0 0.205 5.2 2.13 54.1 3470 5163 279
3×4/0 532 1 8 0.08 2.0 0.220 5.6 2.31 58.7 4192 6237 321
3×250 627 1/0 6 0.095 2.4 0.220 5.6 2.51 63.8 5213 7756 355
3×350 888 2/0 6 0.095 2.4 0.235 6.0 2.81 71.4 6824 10153 435
3×500 1221 4/0 6 0.095 2.4 0.265 6.7 3.19 81.0 9014 13411 536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
