Mining Cable

Type SHD-CGC Three-Conductor Portable Power Cable 5kV



Applications

These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders,

drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check

conductor, and metallic shielding are required.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

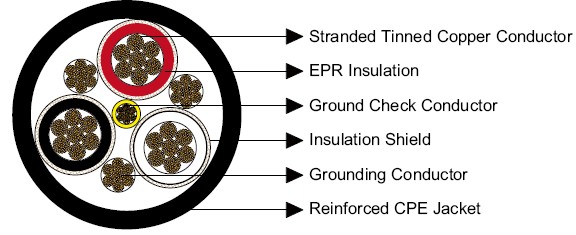

Construction

Type SHD-CGC Three-Conductor Portable Power Cable 5kV

Conductors: Stranded annealed tinned copper conductor.

Conductor Shield:Semi-conducting layer.

Insulation:EPR.

Insulation Shield:Non-conducting tape + Tinned copper/textile braid.

Ground Check Conductor:Tinned copper with a yellow insulation, located in the center of the cable.

Grounding Conductor:Tinned copper conductor.

Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be

offered as an option.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×2/0 323 5 16 0.11 2.8 0.220 5.6 2.20 55.9 3716 5529 243
3×3/0 418 4 16 0.11 2.8 0.235 6.0 2.36 59.9 4130 6145 279
3×4/0 532 3 16 0.11 2.8 0.235 6.0 2.50 63.5 5190 7722 321
3×350 888 1 16 0.12 3.0 0.265 6.7 2.95 74.9 7571 11264 435

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
