Mining Cable

Type G Two-Conductor Flat Portable Power Cable 2kV

Applications

These flat parallel cables are designed for use on D.C. off-track mining equipment, such as D.C. shuttle cars,

drills,cutting and loading machines.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA-C22.2 No.96

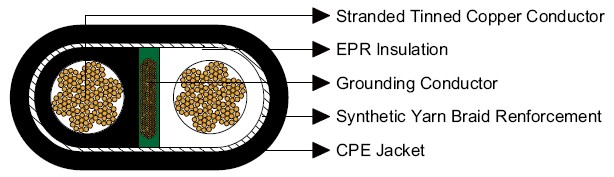

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Grounding Conductor:Tinned copper conductor with a green outer covering.

Reinforcement: Synthetic yarn.

Sheath: Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon

request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Grounding Conductor Size	Nominal Insulation Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	AWG/kcmil	inch	mm	inch	mm	lbs/kft	kg/km	A
2×6	133	8	0.06	1.5	0.56×1.02	14.2×25.9	500	744	95
2×4	259	7	0.06	1.5	0.61×1.15	15.5×29.2	635	945	127
2×3	259	6	0.06	1.5	0.68×1.26	17.3×32.0	785	1170	145
2×2	259	5	0.06	1.5	0.73×1.35	18.5×34.3	935	1390	167
2×1	259	4	0.08	2.0	0.81×1.55	20.6×39.4	1185	1760	191
2×1/0	259	3	0.08	2.0	0.93×1.67	23.6×42.4	1470	2190	217
2×2/0	329	2	0.08	2.0	0.99×1.85	25.1×47.0	1790	2660	250
2×3/0	413	1	0.08	2.0	1.03×2.00	26.2×50.8	2145	3190	286
2×4/0	532	1/0	0.08	2.0	1.10×2.10	27.9×53.3	2545	3790	328

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
