Mining Cable

Type 455 3.3 to 33KV



Applications

Type 455 cables are designed with reduced insulation and sheath thickness, no cradle, 2 earth and 1 pilotcore

(each earth and pilot are the same size) in the outer interstices. These cablesare suitable for reeling and

trailingapplications where minimal diameter and mass is desired, particularly suited to stacker-reclaimer

applications.

Standards

Type 455 3.3 to 33KV

AS/NZS 2802:2000

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

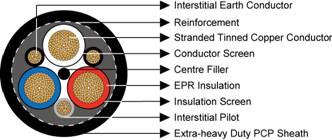

Construction

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen:Polyester barrier tape and extruded semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Filler: Elastomer centre filler.

2×Interstitial Earth Conductor: CSP insulated flexible stranded tinned copper conductor.

1×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement: Open-weave braid reinforcement.

Sheath: Extra-heavy duty PCP sheath.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Pilot/Earth Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Thickness of Covering
mm² No/mm mm No/mm mm mm mm kg/100m
Type 455.3 Class1
16 126/0.40 2.2 120/0.30 1.4 4.2 39.4 224
25 209/0.40 2.2 120/0.30 1.4 4.5 43.3 281
35 285/0.40 2.2 120/0.30 1.4 4.8 46.7 336
50 380/0.40 2.4 183/0.30 1.4 5.3 51.9 424
70 203/0.67 2.4 54/0.67 1.4 5.7 57.0 556
95 259/0.67 2.4 70/0.67 1.6 6.1 60.5 646
120 336/0.67 2.4 84/0.67 1.6 6.4 65.6 786
150 427/0.67 2.4 112/0.67 1.6 6.5 69.7 931
185 518/0.67 2.4 132/0.67 1.6 6.6 74.5 1072
240 672/0.67 2.4 168/0.67 1.6 6.8 80.5 1310
300 854/0.67 2.4 228/0.67 1.6 6.9 86.3 1600
Type 455.6 Class1
16 126/0.40 3.0 120/0.30 1.4 4.7 43.9 266
25 209/0.40 3.0 120/0.30 1.6 5.0 47.8 332
35 285/0.40 3.0 120/0.30 1.6 5.3 51.3 387
50 380/0.40 3.0 183/0.30 1.6 5.6 55.1 466
70 203/0.67 3.0 54/0.67 1.6 6.0 60.3 597
95 259/0.67 3.0 70/0.67 1.8 6.3 63.5 692
120 336/0.67 3.0 84/0.67 1.8 6.5 68.5 826
150 427/0.67 3.0 112/0.67 1.8 6.6 72.6 977
185 518/0.67 3.0 132/0.67 1.8 6.7 77.3 1122
240 672/0.67 3.0 168/0.67 1.8 6.9 83.3 1361
300 854/0.67 3.0 228/0.67 1.8 7.0 89.1 1652
Type 455.11 Class1
16 126/0.40 5.0 120/0.30 2.0 5.8 55.1 392
25 209/0.40 5.0 120/0.30 2.0 6.1 59.0 462
35 285/0.40 5.0 120/0.30 2.0 6.3 62.2 527
50 380/0.40 5.0 183/0.30 2.0 6.4 65.6 607
70 203/0.67 5.0 54/0.67 2.0 6.5 70.2 742
95 259/0.67 5.0 70/0.67 2.2 6.7 73.2 837
120 336/0.67 5.0 84/0.67 2.2 6.8 77.9 982
150 427/0.67 5.0 112/0.67 2.2 6.9 82.0 1143
185 518/0.67 5.0 132/0.67 2.2 7.0 86.8 1305
240 672/0.67 5.0 168/0.67 2.2 7.2 92.8 1553
Type 455.22 Class1
16 126/0.40 7.6 120/0.30 2.5 6.6 68.5 578
25 209/0.40 7.6 120/0.30 2.5 6.6 71.7 653
35 285/0.40 7.6 120/0.30 2.5 6.7 74.7 719
50 380/0.40 7.6 183/0.30 2.5 6.8 78.2 810
70 203/0.67 7.6 54/0.67 2.5 7.0 82.9 956
95 259/0.67 7.6 70/0.67 2.5 7.1 85.7 1061
120 336/0.67 7.6 84/0.67 2.5 7.2 90.5 1221
150 427/0.67 7.6 112/0.67 2.5 7.3 94.6 1392
185 518/0.67 7.6 132/0.67 2.5 7.4 99.3 1564
Type 455.33 Class1
16 126/0.40 10.5 120/0.30 2.5 7.0 83.0 822
25 209/0.40 10.5 120/0.30 2.5 7.1 86.4 920
35 285/0.40 10.5 120/0.30 2.5 7.2 89.4 993
50 380/0.40 10.5 183/0.30 2.5 7.3 92.8 1092
70 203/0.67 10.5 54/0.67 2.5 7.4 97.4 1254
95 259/0.67 10.5 70/0.67 2.5 7.6 100.4 1372
120 336/0.67 10.5 84/0.67 2.5 7.7 105.1 1543
150 427/0.67 10.5 112/0.67 2.5 7.8 109.2 1720
