Mining Cable

 Type 450 3.3 to 33KV



Applications

Type 450 cables are suitable for supply of power to a wide range of applications, from dragline cable to slow

reelingapplications, where copper screened cable is required but light weight and smaller dimensions are also

desired.

Standards

Type 450 3.3 to 33KV

AS/NZS 2802:2000

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

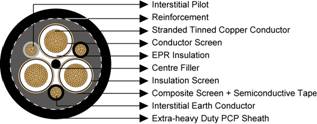

Construction

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen:Polyester barrier tape and extruded semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Composite Screen:Tinned annealed copper braiding interwove with polyester yarn, covered with

semiconductive tape.

Filler: Elastomer centre filler.

2×Interstitial Earth Conductor: CSP insulated flexible stranded tinned copper conductor.

1×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement: Open-weave braid reinforcement.

Sheath: Extra-heavy duty PCP sheath.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Core Screen Pilot/Earth Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Area of Screen Strand Size Thickness of Covering
mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
Type 450.3 Class1
16 126/0.40 2.2 128/0.25 6.3 120/0.30 1.4 4.5 42.8 266
25 209/0.40 2.2 118/0.30 8.3 120/0.30 1.4 4.8 46.9 338
35 285/0.40 2.2 127/0.30 9.0 120/0.30 1.4 5.1 50.3 392
50 380/0.40 2.4 141/0.30 10.0 183/0.30 1.4 5.6 55.5 487
70 203/0.67 2.4 117/0.40 14.7 54/0.67 1.4 6.0 61.1 637
95 259/0.67 2.4 123/0.40 15.5 70/0.67 1.6 6.3 64.3 734
120 336/0.67 2.4 135/0.40 17.0 84/0.67 1.6 6.4 69.0 867
150 427/0.67 2.4 144/0.40 18.1 112/0.67 1.6 6.6 73.3 1022
185 518/0.67 2.4 144/0.40 18.1 132/0.67 1.6 6.7 78.1 1175
240 672/0.67 2.4 136/0.50 26.7 168/0.67 1.6 6.9 84.5 1440
300 854/0.67 2.4 144/0.50 28.3 228/0.67 1.6 7.0 90.4 1741
Type 450.6 Class1
16 126/0.40 3.0 118/0.30 8.3 120/0.30 1.4 5.0 47.6 317
25 209/0.40 3.0 129/0.30 9.1 120/0.30 1.6 5.2 51.2 382
35 285/0.40 3.0 139/0.30 9.8 120/0.30 1.6 5.5 54.7 443
50 380/0.40 3.0 149/0.30 10.5 177/0.30 1.6 5.9 58.8 534
70 203/0.67 3.0 123/0.40 15.5 54/0.67 1.6 6.3 64.3 682
95 259/0.67 3.0 130/0.40 16.3 70/0.67 1.8 6.4 67.1 771
120 336/0.67 3.0 141/0.40 17.7 84/0.67 1.8 6.5 71.9 912
150 427/0.67 3.0 144/0.40 18.1 112/0.67 1.8 6.6 76.0 1073
185 518/0.67 3.0 144/0.40 18.1 132/0.67 1.8 6.8 80.9 1222
240 672/0.67 3.0 141/0.50 27.7 168/0.67 1.8 7.0 87.4 1502
300 854/0.67 3.0 144/0.50 28.3 228/0.67 1.8 7.1 93.2 1790
Type 450.11 Class1
25 209/0.40 5.0 120/0.40 15.1 120/0.30 2.0 6.3 62.8 542
35 285/0.40 5.0 127/0.40 16.0 120/0.30 2.0 6.4 65.8 601
50 380/0.40 5.0 135/0.40 17.0 183/0.30 2.0 6.5 69.3 692
70 203/0.67 5.0 144/0.40 18.1 54/0.67 2.0 6.6 73.8 826
95 259/0.67 5.0 144/0.40 18.1 70/0.67 2.2 6.7 76.6 926
120 336/0.67 5.0 144/0.40 18.1 84/0.67 2.2 6.9 81.6 1082
150 427/0.67 5.0 139/0.50 27.3 112/0.67 2.2 7.0 86.1 1263
185 518/0.67 5.0 144/0.50 28.3 132/0.67 2.2 7.1 90.8 1433
240 627/0.67 5.0 144/0.50 28.3 168/0.67 2.2 7.3 96.8 1690
300 854/0.67 5.0 144/0.50 28.3 228/0.67 2.2 7.4 102.7 2000
Type 450.22 Class1
35 285/0.40 7.6 144/0.40 18.1 120/0.30 2.5 6.8 78.4 805
50 380/0.40 7.6 144/0.40 18.1 183/0.30 2.5 6.9 81.8 900
70 203/0.67 7.6 140/0.50 27.5 54/0.67 2.5 7.0 86.8 1070
95 259/0.67 7.6 144/0.50 28.3 70/0.67 2.5 7.2 89.8 1180
120 336/0.67 7.6 144/0.50 28.3 84/0.67 2.5 7.3 94.5 1350
150 427/0.67 7.6 144/0.50 28.3 112/0.67 2.5 7.4 98.6 1520
185 518/0.67 7.6 144/0.50 28.3 132/0.67 2.5 7.5 103.4 1700
240 627/0.67 7.6 144/0.50 28.3 168/0.67 2.5 7.7 109.4 1980
300 854/0.67 7.6 144/0.50 28.3 228/0.67 2.5 7.9 115.4 2310
Type 450.33 Class1
50 380/0.40 10.5 144/0.50 28.3 183/0.30 2.5 7.4 96.9 1222
70 203/0.67 10.5 144/0.50 28.3 54/0.67 2.5 7.5 101.4 1385
95 259/0.67 10.5 144/0.50 28.3 70/0.67 2.5 7.7 104.4 1505
120 336/0.67 10.5 144/0.50 28.3 84/0.67 2.5 7.8 109.2 1680
185 518/0.67 10.5 144/0.50 28.3 132/0.67 2.5 8.0 118.0 2060
240 627/0.67 10.5 144/0.50 28.3 168/0.67 2.5 8.2 124.0 2360
300 854/0.67 10.5 144/0.50 28.3 228/0.67 2.5 8.4 130.1 2710
