Mining Cable
Applications
These Class 2 cables are designed for many uses, suitable for trailing and also suitable for reeling applications,
have one central pilot and a semiconductive cradle supportingand protecting the power cores, which makes
these cables less likely to be damaged from crushing and squashing
Standards
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

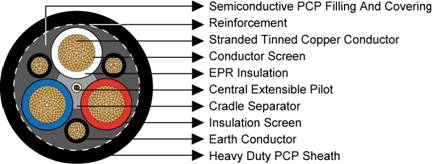

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: polyester barrier tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: SemiconductivePCP filling andcovering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
TextileReinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.Dimensions and Weight
Nominal Conductor Area | Strand Size | Insulation Thickness | Earth Conductor | Pilot Conductor | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | ||
Strand Size | Thickness of Covering | Strand Size | Thickness of Covering | ||||||
mm² | No/mm | mm | No/mm | mm | No/mm | mm | mm | mm | kg/100m |
Type 441.1 Class2 | |||||||||
6 | 84/0.30 | 1.5 | 33/0.30 | 0.8 | 24/0.20 | 0.8 | 3.8 | 28.5 | 111 |
10 | 77/0.40 | 1.5 | 51/0.30 | 0.8 | 24/0.20 | 0.8 | 3.8 | 31.1 | 136 |
16 | 126/0.40 | 1.6 | 81/0.30 | 1.0 | 24/0.20 | 0.8 | 3.9 | 34.1 | 176 |
25 | 209/0.40 | 1.6 | 81/0.30 | 1.0 | 24/0.20 | 0.8 | 4.2 | 37.9 | 231 |
35 | 285/0.40 | 1.6 | 81/0.30 | 1.0 | 24/0.20 | 0.8 | 4.4 | 41.2 | 274 |
50 | 380/0.40 | 1.7 | 120/0.30 | 1.0 | 40/0.20 | 0.8 | 4.9 | 45.9 | 349 |
70 | 203/0.67 | 1.8 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.3 | 52.2 | 481 |
95 | 259/0.67 | 2.0 | 48/0.67 | 1.0 | 40/0.20 | 0.8 | 5.8 | 56.7 | 579 |
120 | 336/0.67 | 2.1 | 60/0.67 | 1.0 | 40/0.20 | 0.8 | 6.3 | 62.7 | 724 |
150 | 427/0.67 | 2.3 | 77/0.67 | 1.2 | 40/0.20 | 0.8 | 6.7 | 68.3 | 881 |
185 | 518/0.67 | 2.5 | 91/0.67 | 1.2 | 40/0.20 | 0.8 | 7.3 | 74.9 | 1049 |
240 | 672/0.67 | 2.8 | 119/0.67 | 1.2 | 40/0.20 | 0.8 | 8.0 | 83.3 | 1329 |
300 | 854/0.67 | 3.0 | 156/0.67 | 1.4 | 40/0.20 | 0.8 | 8.7 | 91.2 | 1629 |
