Mining Cable

Type 440 1.1 to 22KV



Applications

Type 440 cables are mainly used as flexible feedertrailing cables for power supply to machinery and equipment,

include 3 large pilots and a centralsemiconductive cradle for support and protection of power cores

Standards

AS/NZS 2802:2000

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

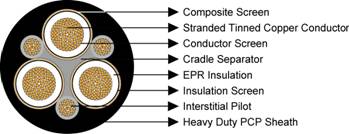

Construction

Type 440 1.1 to 22KV

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen: 1.1/1.1kv - polyester barrier tape, 3.3/3.3kv andabove - polyester barrier tape and extruded

semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.

Cradle Separator: Semiconductive PCP.

3×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.

Sheath: Heavy duty PCP sheath.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Core screen Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Area of Screen Strand Size Thickness of Covering
mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
Type 440.1 Class2
6 84/0.30 1.5 7/0.25 7.2 18/0.30 1.0 3.8 30.0 135
10 77/0.40 1.5 7/0.25 8.6 27/0.30 1.0 3.8 32.6 166
16 126/0.40 1.6 7/0.25 9.6 42/0.30 1.0 4.0 35.8 204
25 209/0.40 1.6 7/0.25 11.3 66/0.30 1.2 4.3 39.7 269
35 285/0.40 1.6 7/0.25 12.4 90/0.30 1.2 4.6 43.1 324
50 380/0.40 1.7 7/0.25 14.1 120/0.30 1.2 5.0 47.7 403
70 203/0.67 1.8 7/0.25 16.5 39/0.67 1.2 5.4 53.9 539
95 259/0.67 2.0 7/0.30 21.8 39/0.67 1.2 6.0 59.3 659
120 336/0.67 2.1 7/0.30 24.7 42/0.67 1.4 6.4 65.1 802
150 427/0.67 2.3 7/0.40 36.1 54/0.67 1.4 6.9 72.1 1018
185 518/0.67 2.5 7/0.40 40.5 63/0.67 1.4 7.4 78.6 1198
240 672/0.67 2.8 7/0.50 57.7 77/0.67 1.6 8.2 88.6 1549
300 854/0.67 3.0 7/0.50 63.2 98/0.67 1.6 8.8 96.3 1870
Type 440.3 Class2
16 126/0.40 3.0 7/0.25 13.1 42/0.30 1.4 5.3 46.2 304
25 209/0.40 3.0 7/0.25 14.8 66/0.30 1.4 5.6 50.1 379
35 285/0.40 3.0 7/0.25 15.8 90/0.30 1.4 5.9 53.5 446
50 380/0.40 3.0 7/0.25 17.2 120/0.30 1.4 6.3 57.6 524
70 203/0.67 3.0 7/0.25 18.6 39/0.67 1.4 6.6 62.5 659
95 259/0.67 3.0 7/0.25 20.3 39/0.67 1.6 7.1 66.2 754
120 336/0.67 3.0 7/0.30 27.2 42/0.67 1.6 7.4 72.0 914
150 427/0.67 3.0 7/0.40 39.6 54/0.67 1.6 7.8 78.0 1119
185 518/0.67 3.0 7/0.40 42.2 63/0.67 1.6 8.2 83.4 1289
240 672/0.67 3.0 7/0.40 46.6 77/0.67 1.6 8.8 90.3 1559
300 854/0.67 3.0 7/0.50 63.2 98/0.67 1.6 9.4 98.4 1920
Type 440.6 Class2
16 126/0.40 5.0 7/0.25 17.2 42/0.30 1.4 6.4 57.3 444
25 209/0.40 5.0 7/0.25 18.6 66/0.30 1.6 6.7 61.2 523
35 285/0.40 5.0 7/0.25 18.6 90/0.30 1.6 7.0 64.6 599
50 380/0.40 5.0 7/0.25 21.3 120/0.30 1.6 7.3 68.5 689
70 203/0.67 5.0 7/0.25 23.4 39/0.67 1.6 7.7 73.7 834
95 259/0.67 5.0 7/0.30 29.2 39/0.67 1.8 8.1 77.8 964
120 336/0.67 5.0 7/0.30 31.7 42/0.67 1.8 8.5 83.1 1119
150 427/0.67 5.0 7/0.40 45.7 54/0.67 1.8 8.9 89.1 1349
185 518/0.67 5.0 7/0.40 48.4 63/0.67 1.8 9.3 94.5 1529
240 672/0.67 5.0 7/0.40 52.8 77/0.67 1.8 9.9 101.4 1810
300 854/0.67 5.0 7/0.50 71.5 98/0.67 1.8 10.4 109.3 2190
Type 440.11 Class2
25 209/0.40 7.6 7/0.25 23.7 66/0.30 2.0 8.1 75.6 759
35 285/0.40 7.6 7/0.30 30.2 90/0.30 2.0 8.4 79.7 869
50 380/0.40 7.6 7/0.30 31.7 120/0.30 2.0 8.7 83.6 974
70 203/0.67 7.6 7/0.30 34.1 39/0.67 2.0 9.1 88.8 1139
95 259/0.67 7.6 7/0.40 47.5 39/0.67 2.2 9.6 93.7 1319
120 336/0.67 7.6 7/0.40 51.0 42/0.67 2.2 9.9 98.8 1489
150 427/0.67 7.6 7/0.40 53.7 54/0.67 2.2 10.3 103.5 1679
185 518/0.67 7.6 7/0.40 57.2 63/0.67 2.2 10.7 108.8 1880
Type 440.22 Class2
35 285/0.40 10.5 7/0.40 53.2 90/0.30 2.5 10.0 105.0 1270
50 380/0.40 10.5 7/0.40 54.1 120/0.30 2.5 10.3 108.9 1392
70 203/0.67 10.5 7/0.40 58.0 39/0.67 2.5 10.7 111.2 1558
