Mining Cable

Type 409 1.1 to 22KV



Applications

Type 409 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather

than for reeling. Smaller cables are used for drills and hand held tools and equipment, while larger onesare used

for power supply to draglines, shovelsand drills.

Standards

AS/NZS 2802:2000

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

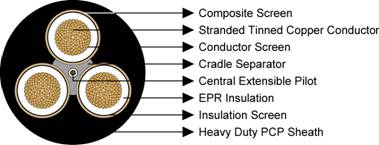

Construction

Type 409 1.1 to 22KV

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded

semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.

Cradle Separator: Semiconductive PCP.

1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

Sheath: Heavy duty PCP sheath.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Core screen Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Area of Screen Strand Size Thickness of Covering
mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
Type 409.1 Class2
6 84/0.30 1.5 7/0.25 7.2 24/0.20 0.8 3.8 30.0 129
10 77/0.40 1.5 7/0.25 8.6 24/0.20 0.8 3.8 32.6 157
16 126/0.40 1.6 7/0.25 9.6 24/0.20 0.8 4.0 35.8 197
25 209/0.40 1.6 7/0.25 11.3 24/0.20 0.8 4.3 39.7 255
35 285/0.40 1.6 7/0.25 12.4 24/0.20 0.8 4.6 43.1 312
50 380/0.40 1.7 7/0.25 14.1 40/0.20 0.8 5.0 47.7 386
70 203/0.67 1.8 7/0.25 16.5 40/0.20 0.8 5.4 53.9 503
95 259/0.67 2.0 7/0.30 21.8 40/0.20 0.8 6.0 59.3 622
120 336/0.67 2.1 7/0.30 24.7 40/0.20 0.8 6.4 65.1 760
150 427/0.67 2.3 7/0.40 36.1 40/0.20 0.8 6.9 72.1 960
185 518/0.67 2.5 7/0.40 40.5 40/0.20 0.8 7.4 78.6 1160
240 672/0.67 2.8 7/0.50 57.7 40/0.20 0.8 8.2 88.6 1490
300 854/0.67 3.0 7/0.50 63.2 40/0.20 0.8 8.8 96.3 1800
Type 409.3 Class2
16 126/0.40 3.0 7/0.25 13.1 24/0.20 0.8 5.3 46.2 301
25 209/0.40 3.0 7/0.25 14.8 24/0.20 0.8 5.6 50.1 371
35 285/0.40 3.0 7/0.25 15.8 24/0.20 0.8 5.9 53.5 430
50 380/0.40 3.0 7/0.25 17.2 40/0.20 0.8 6.3 57.6 511
70 203/0.67 3.0 7/0.25 18.6 40/0.20 0.8 6.6 62.5 624
95 259/0.67 3.0 7/0.25 20.3 40/0.20 0.8 7.1 66.2 724
120 336/0.67 3.0 7/0.30 27.2 40/0.20 0.8 7.4 72.0 880
150 427/0.67 3.0 7/0.40 39.6 40/0.20 0.8 7.8 78.0 1079
185 518/0.67 3.0 7/0.40 42.2 40/0.20 0.8 8.2 83.4 1251
240 672/0.67 3.0 7/0.40 46.6 40/0.20 0.8 8.8 90.3 1502
300 854/0.67 3.0 7/0.50 63.2 40/0.20 0.8 9.4 98.4 1840
Type 409.6 Class2
16 126/0.40 5.0 7/0.25 17.2 24/0.20 0.8 6.4 57.3 440
25 209/0.40 5.0 7/0.25 18.6 24/0.20 0.8 6.7 61.2 516
35 285/0.40 5.0 7/0.25 18.6 24/0.20 0.8 7.0 64.6 584
50 380/0.40 5.0 7/0.25 21.3 40/0.20 0.8 7.3 68.5 669
70 203/0.67 5.0 7/0.25 23.4 40/0.20 0.8 7.7 73.7 804
95 259/0.67 5.0 7/0.30 29.2 40/0.20 0.8 8.1 77.8 934
120 336/0.67 5.0 7/0.30 31.7 40/0.20 0.8 8.5 83.1 1090
150 427/0.67 5.0 7/0.40 45.7 40/0.20 0.8 8.9 89.1 1310
185 518/0.67 5.0 7/0.40 48.4 40/0.20 0.8 9.3 94.5 1479
240 672/0.67 5.0 7/0.40 52.8 40/0.20 0.8 9.9 101.4 1749
300 854/0.67 5.0 7/0.50 71.5 40/0.20 0.8 10.4 109.3 2120
Type 409.11 Class2
25 209/0.40 7.6 7/0.25 23.7 24/0.20 0.8 8.1 75.6 750
35 285/0.40 7.6 7/0.30 30.2 24/0.20 0.8 8.4 79.7 859
50 380/0.40 7.6 7/0.30 31.7 40/0.20 0.8 8.7 83.6 954
70 203/0.67 7.6 7/0.30 34.1 40/0.20 0.8 9.1 88.8 1105
95 259/0.67 7.6 7/0.40 47.5 40/0.20 0.8 9.6 93.7 1290
120 336/0.67 7.6 7/0.40 51.0 40/0.20 0.8 9.9 98.8 1460
150 427/0.67 7.6 7/0.40 53.7 40/0.20 0.8 10.3 103.5 1636
185 518/0.67 7.6 7/0.40 57.2 40/0.20 0.8 10.7 108.8 1830
Type 409.22 Class2
35 285/0.40 10.5 7/0.40 55.4 24/0.20 0.8 10.0 105.0 1405
50 380/0.40 10.5 7/0.40 58.1 40/0.20 0.8 10.3 108.9 1525
70 203/0.67 10.5 7/0.40 60.7 40/0.20 0.8 10.7 114.0 1710
