Mining Cable

Type 240 1.1 to 11KV

Applications

Mining cables are mainly used as feeder cables for power supply to machinery or longwall supply.Minging cable

contains 3 large pilots and large core screens provide for low resistance earthing.

Standards

AS/NZS 1802:2003

AS/NZS 1125

AS/NZS 3808 AS/NZS 5000.1

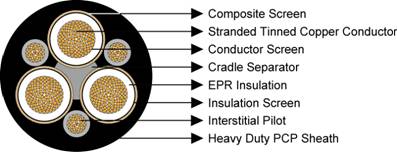

Construction

Type 240 1.1 to 11KV

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded

semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.

3×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.

Cradle Separator: Semiconductive PCP.

Sheath: Heavy duty PCP sheath. Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Core screen Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Area of Screen Strand Size Thickness of Covering
mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
Type 240.1
6 84/0.30 1.5 7/0.25 7.2 18/0.30 1.0 3.8 30.0 131
10 77/0.40 1.5 7/0.25 8.6 27/0.30 1.0 3.8 32.6 159
16 126/0.40 1.6 7/0.25 9.6 42/0.30 1.0 4.0 35.8 202
25 209/0.40 1.6 7/0.25 11.3 66/0.30 1.2 4.3 39.7 265
35 285/0.40 1.6 7/0.25 12.4 90/0.30 1.2 4.6 43.1 326
50 380/0.40 1.7 7/0.25 14.1 120/0.30 1.2 5.0 47.7 404
70 203/0.67 1.8 7/0.25 16.5 39/0.67 1.2 5.4 53.9 533
95 259/0.67 2.0 7/0.25 18.2 39/0.67 1.2 6.0 58.6 635
120 336/0.67 2.1 7/0.25 20.3 42/0.67 1.4 6.4 64.4 775
150 427/0.67 2.3 7/0.25 22.3 54/0.67 1.4 6.9 70.2 940
185 518/0.67 2.5 7/0.30 30.2 63/0.67 1.4 7.4 77.4 1150
240 672/0.67 2.8 7/0.30 33.6 77/0.67 1.6 8.2 86.0 1440
300 854/0.67 3.0 7/0.40 50.1 98/0.67 1.6 8.8 95.1 1810
Type 240.3
16 126/0.40 3.0 7/0.25 13.1 42/0.30 1.4 5.3 46.2 306
25 209/0.40 3.0 7/0.25 14.8 66/0.30 1.4 5.6 50.1 379
35 285/0.40 3.0 7/0.25 15.8 90/0.30 1.4 5.9 53.5 444
50 380/0.40 3.0 7/0.25 17.2 120/0.30 1.4 6.3 57.6 525
70 203/0.67 3.0 7/0.25 18.6 39/0.67 1.4 6.6 62.5 656
95 259/0.67 3.0 7/0.25 20.3 39/0.67 1.4 7.1 66.2 750
120 336/0.67 3.0 7/0.30 27.2 42/0.67 1.6 7.4 72.0 910
150 427/0.67 3.0 7/0.40 39.6 54/0.67 1.6 7.8 78.0 1115
185 518/0.67 3.0 7/0.40 42.2 63/0.67 1.8 8.2 83.4 1280
240 672/0.67 3.0 7/0.40 46.6 77/0.67 1.8 8.8 90.3 1540
300 854/0.67 3.0 7/0.50 63.2 98/0.67 1.8 9.4 98.4 1920
Type 240.6
16 126/0.40 5.0 7/0.25 17.2 42/0.30 1.4 6.4 57.3 440
25 209/0.40 5.0 7/0.25 18.6 66/0.30 1.4 6.7 61.2 521
35 285/0.40 5.0 7/0.25 18.6 90/0.30 1.6 7.0 64.6 593
50 380/0.40 5.0 7/0.25 21.3 120/0.30 1.6 7.3 68.5 685
70 203/0.67 5.0 7/0.25 23.4 39/0.67 1.6 7.7 73.7 830
95 259/0.67 5.0 7/0.30 29.2 39/0.67 1.6 8.1 77.8 954
120 336/0.67 5.0 7/0.30 31.7 42/0.67 1.8 8.5 83.1 1111
150 427/0.67 5.0 7/0.40 45.7 54/0.67 1.8 8.9 89.1 1335
185 518/0.67 5.0 7/0.40 48.4 63/0.67 1.8 9.3 94.5 1515
240 672/0.67 5.0 7/0.40 52.8 77/0.67 1.8 9.9 101.4 1810
300 854/0.67 5.0 7/0.50 71.5 98/0.67 1.8 10.4 109.3 2190
Type 240.11
25 209/0.40 7.6 7/0.25 23.7 66/0.30 2.0 8.1 75.6 752
35 285/0.40 7.6 7/0.30 30.2 90/0.30 2.0 8.4 79.7 860
50 380/0.40 7.6 7/0.30 31.7 120/0.30 2.0 8.7 83.6 961
70 203/0.67 7.6 7/0.30 34.1 39/0.67 2.0 9.1 88.8 1125
95 259/0.67 7.6 7/0.40 47.5 39/0.67 2.0 9.6 93.7 1300
120 336/0.67 7.6 7/0.40 51.0 42/0.67 2.2 9.9 98.8 1470
150 427/0.67 7.6 7/0.40 53.7 54/0.67 2.2 10.3 103.5 1659
185 518/0.67 7.6

7/0.40

57.2

63/0.67

2.2

10.7 108.8 1880
